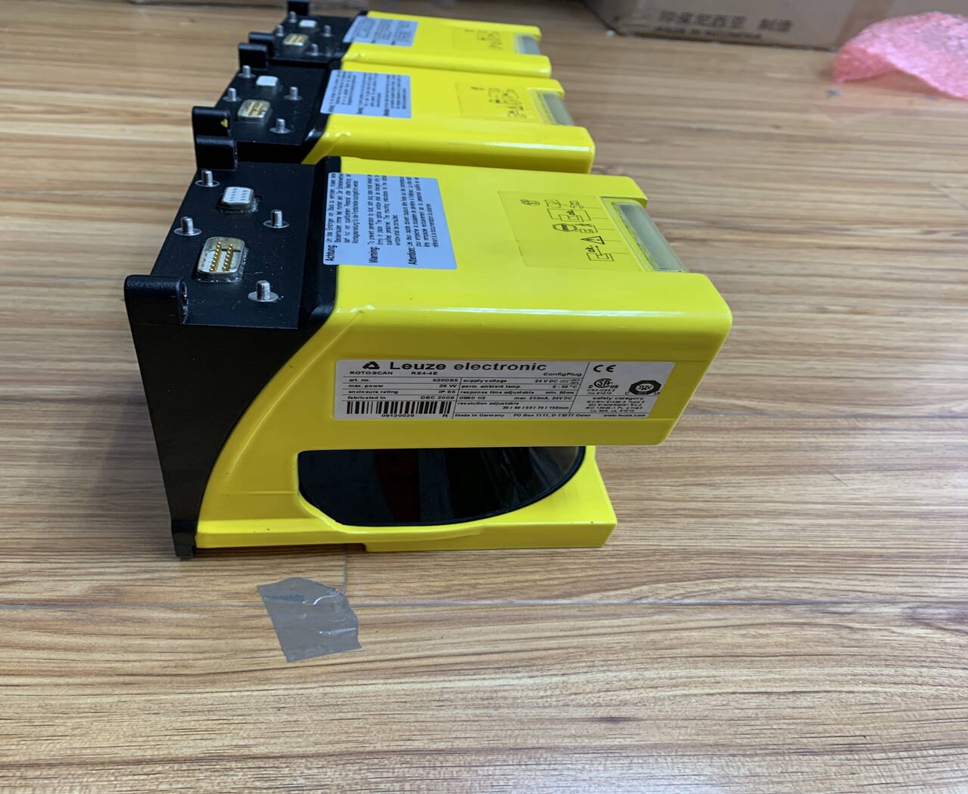

Brand：LEUZE
Model number：RS4-2E
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.4kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
Function sequence
The protective field activated by the vehicle contro-- specified by protective field contour and travespeed- is monitored by the safety sensor for protective field violation and excess travel speed!
The following steps describe the principle operating procedure of the MotionMonitoring function:Via 4 standard outputs, the vehicle control activates the protective field that is adapted to the operating system on the control inputs of the safety sensor:
small protective field for slow travel
medium protective field for moderate travel
large protective field for fast travel
PF8 for reverse travel
The safety sensor monitors this protective field and switches off in the event of a violation.While the protective field is free, the safety sensor ascertains the current travel speed and traveldirection.
The travel speed and travel direction are compared with the values configured in the speed matrix.lf in agreement, i.e, the measured speed is smaller than the configured value, the system functionscorrectly and the safety sensor activates alarm output 2.
If the measured speed is greater than the configured value, the safety sensor assumes that a faulthas occurred in the system and deactivates alarm output 2.Faults lead to two escalation levels:
The protective field is corrected for a short time (5 s) while the next larger is automatically moni.
tored by the safety sensor.
if the speed increases further or if the maximum speed is exceeded, the safety sensor switches offthe safety-related switching outputs; an entry appears in the diagnostics list
Reference boundary monitoring
The reference boundary monitoring function prevents unintentional misalignment and deliberate manipu.ation of the safety sensor. lf a protective field contains an area with reference boundary, the safety sensolnot only monitors interruptions of the protective field, it also monitors the concurrence of the measuredarea contour with the set reference boundary. lf the measurement values of the area contour deviate fromthe defined reference boundary by more than the tolerance zone, i.e, if no object is detected in the areawith reference boundary, the safety sensor switches off and the safety-related switching outputs (OSSDsswitch to of. The reterence boundary function is set together with the definition of the protective fieldboundaries.
