Brand：METSO

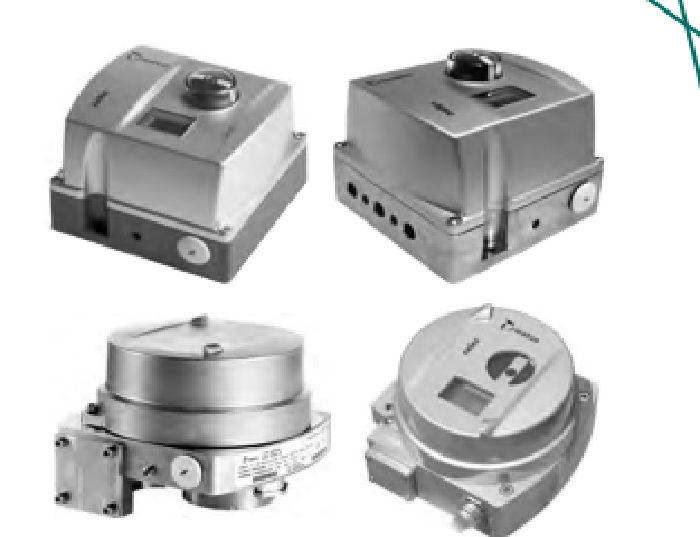

Model number：ND9000
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.36kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
□ Benchmark control performance on rotary and
linear valves
□ Reliable and robust design
□ Easy commissioning and operation
□ Safety; IEC 61508 compliant up to and including SIL 2 by
TUV
□ Language selection: English, German and French
□ Local / remote operation
□ Expandable architecture
□ Advanced device diagnostics including
□ Self-diagnostics
□ Online diagnostics
□ Performance diagnostics
□ Communication diagnostics
□ Extended off-line tests
□ Performance view
□ Online Valve Signature
Options
□ Interchangeable communication options:
□ HART 6 or 7 (H)
□ FOUNDATION fieldbus
□ Profibus PA
□ Limit switches
□ Position transmitter (in HART only)
□ Full stainless steel enclosure
□ Exhaust adapter
□ Remote mounting
□ Arctic version (up to -53 °C / -64 °F)
Total cost of ownership
□ Low energy and air consumption
□ Future proof design allows further options at a reduced
cost
□ Optimized spares program minimizes spare part
inventory
□ Retro-fit to existing installations (Neles or 3rd party
valves)
Minimized process variability
□ Linearisation of the valve flow characteristics
□ Excellent dynamic and static control performance
□ Fast response to control signal change
□ Accurate internal measurements
Advanced self-diagnostics guarantees that all measurements
operate correctly. After connections of electric signal and pneumatic supply, the micro controller (μC) reads the input signal,
position sensor (α), pressure sensors (Ps, P1, P2) and spool position sensor (SPS). A difference between input signal and position
sensor (α) measurement is detected by control algorithm inside
the μC. The μC calculates a new value for prestage (PR) coil current based on the information from the input signal and from the
sensors. The changed current to the PR changes the pilot pressure to the spool valve. Reduced pilot pressure moves the spool
and the actuator pressures change accordingly. The spool opens
the flow to the driving side of the double diaphragm actuator and
opens the flow out from the other side of the actuator. The
increasing pressure will move the diaphragm piston. The actuator
and feedback shaft rotate. The position sensor (α) measures the
rotation for the μC. The μC using control algorithm modulates the
PR-current from the steady state value until the new position of
the actuator, according to the input signal, is reached.
