G761-3008B MOOG Series Servo Valves

INQUIRE NOW

Products Name: G761-3008B MOOG Series Servo Valves

PRODUCT DESCRIPTION

Brand:MOOG

Model number:G761-3008B

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.26kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

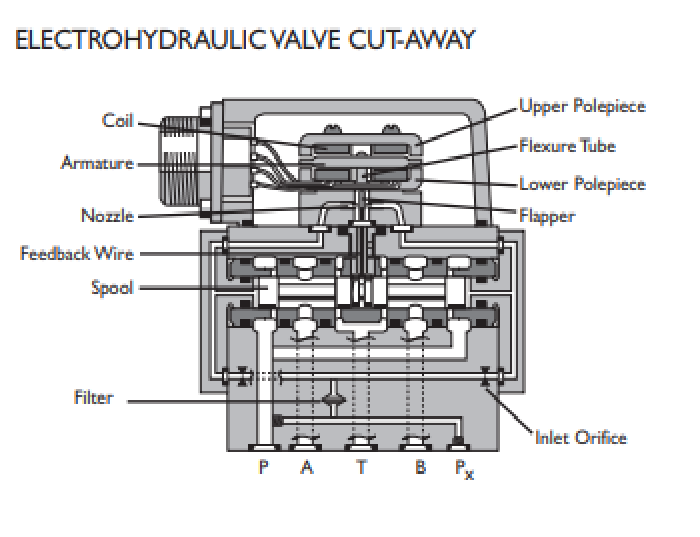

The flapper of the first stage hydraulic amplifier is rigidly attached to themidpoint of the armature.The flapper extends through the flexure tube andpasses between two nozzles, creating two variable orifices between the nozzletips and the flapper. The pressure controlled by the flapper and nozzle variableorifice is fed to the end areas of the second stage spool.The second stage is a conventional 4-way spool design in which outputflow from the valve, at a fixed valve pressure drop, is proportional to spooldisplacement from the null position.A cantilever feedback spring is fixed to theflapper and engages a slot at the center of the spool. Displacement of the spooldeflects the feedback spring which creates a force on the armature/flapper

assemblyInput signal induces a magnetic charge in the armature and causes adeflection of the armature and flapper This assembly pivots about the flexuretube and increases the size of one nozzle orifice and decreases the size of theother.

This action creates a differential pressure from one end of the spool to theother and results in spool displacement. The spool displacement transmits aforce in the feedback wire which opposes the original input signal torque. Spoolmovement continues until the feedback wire force equals the input signal force.
