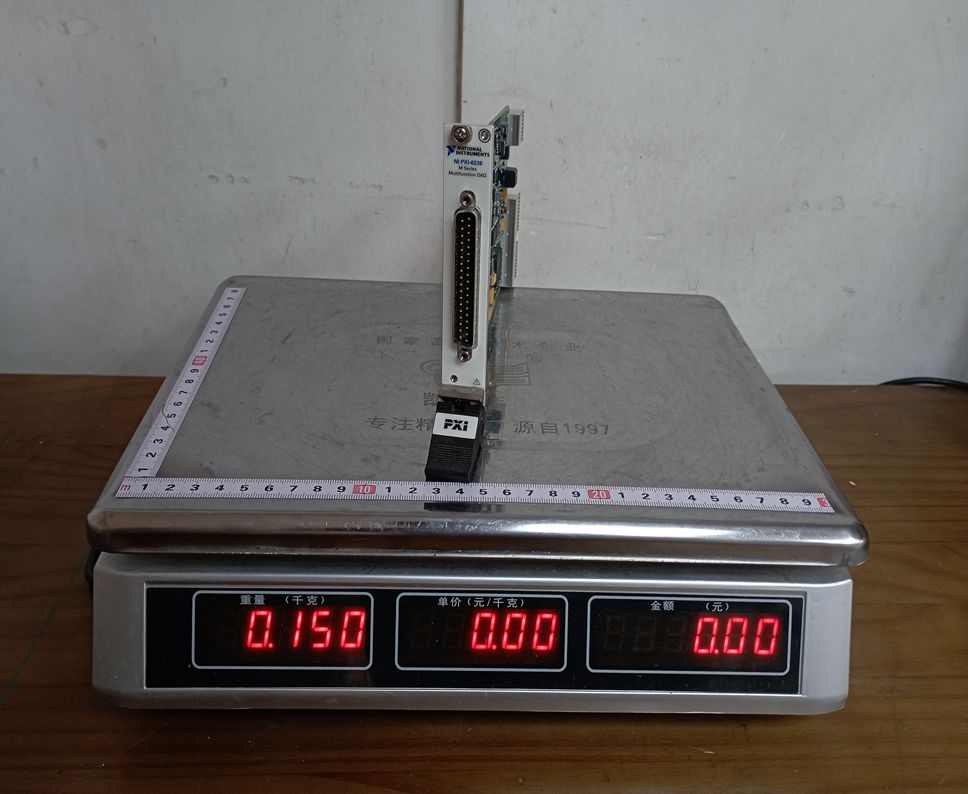

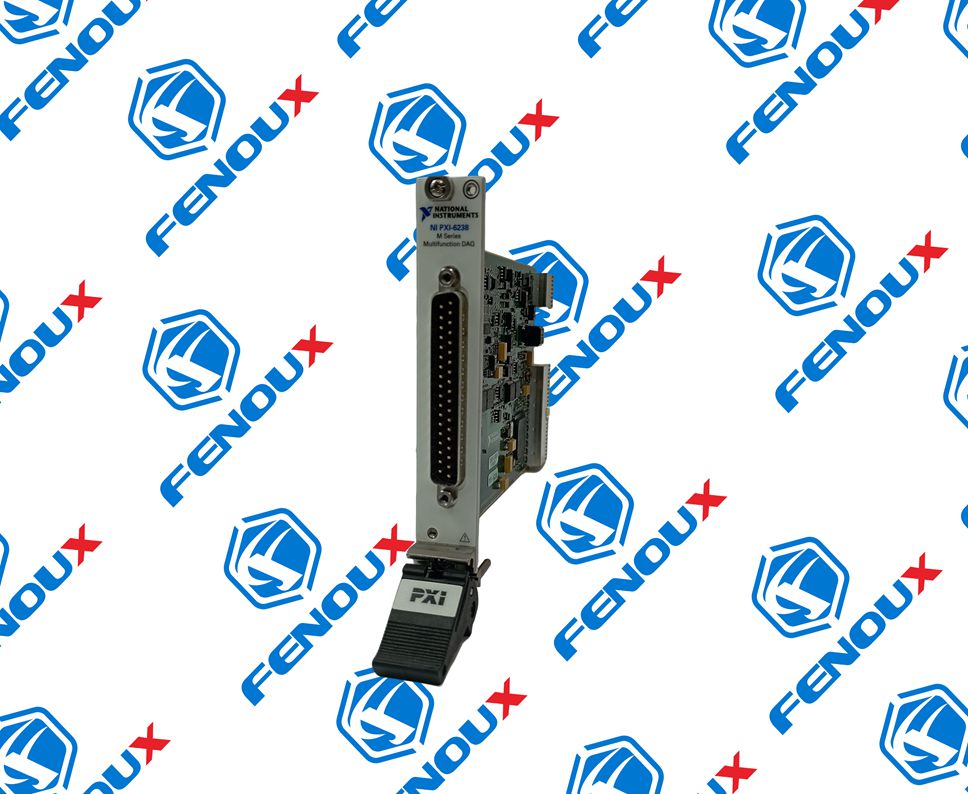

The PXI-6238 is an M Series device from National Instruments (NI). It features:
Isolation: The key feature is its isolation. It offers channel-to-channel isolation for analog inputs and channel-to-earth ground isolation for analog outputs. This is crucial for:
Protecting the measurement system, the host computer, and the user from hazardous voltages.
Eliminating ground-loop errors that can corrupt measurement signals in noisy industrial environments.
Multifunctionality: It combines multiple I/O types on a single module: Analog Input (AI), Analog Output (AO), and Digital I/O (DIO), along with counter/timers.
Bus Type: PXI (PCI eXtensions for Instrumentation), a modular instrumentation standard that provides high-performance synchronization and data throughput.
Software Compatibility: Fully compatible with NI-DAQmx driver software, allowing seamless integration with NI LabVIEW, LabWindows/CVI, and other common application development environments.
2. Specifications (产品参数)
| Feature | Specification |
| Analog Input (AI) |
|
| Number of Channels | 8 differential current inputs |
| Resolution | 16-bit |
| Maximum Sample Rate | 250 kS/s (aggregate) |
| Input Range | $\pm 20\ \text{mA}$ (DC-coupled) |
| Isolation | $60\ \text{VDC, CAT I}$ channel-to-channel |
| Input Impedance | $92\ \Omega \pm 10\%$ in parallel with $100\ \text{pF}$ |
| Analog Output (AO) |
|
| Number of Channels | 2 |
| Resolution | 16-bit |
| Maximum Update Rate | 500 kS/s per channel |
| Output Range | $0\ \text{mA}$ to $20\ \text{mA}$ |
| Isolation | $60\ \text{VDC, CAT I}$ channel-to-earth ground |
| Digital I/O (DIO) |
|
| Number of Channels | 8 channels (4 input, 4 output) |
| Compatibility | $5\ \text{V}$ TTL-compatible |
| Timed Operation | Up to $1\ \text{MHz}$ |
| Counters/Timers |
|
| Number | 2 |
| Resolution | 32-bit |
| Bus Type | Standard $3\text{U}$ PXI |
| I/O Connector | 37-pin D-SUB |
3. Advantages (产品优势)
Superior Signal Integrity in Harsh Environments: The isolation feature is the primary benefit, ensuring accurate, noise-free measurements even when measuring signals with different ground potentials or high-voltage transients common in industrial settings.
High Performance and Accuracy: 16-bit resolution for both AI and AO, and a high aggregate sample rate (250 kS/s) provide the precision and speed required for demanding industrial monitoring and control.
Versatility: The combination of isolated Analog Input (current), Analog Output (current), and Digital I/O on a single card makes it a highly flexible solution for mixed-signal control systems.
PXI Platform Benefits: Inherits the advantages of the PXI standard, including synchronization capabilities, rugged mechanical design, and high data bandwidth for large, complex systems.
Ease of Use: Supported by the powerful and user-friendly NI-DAQmx driver and development environments like LabVIEW, which significantly speeds up system development.
4. Considerations (注意事项)
Current Input/Output: This specific model is designed for current loop measurements ($\pm 20\ \text{mA}$ input, $0\ \text{mA}$ to $20\ \text{mA}$ output), which is standard in industrial process control (e.g., $4-20\ \text{mA}$ loops). It is not a general-purpose voltage input module. Ensure your sensors and actuators are current-based.
PXI System Required: The module requires an NI PXI chassis and controller to operate, adding to the initial system cost and complexity compared to standalone USB or Ethernet DAQ devices.
Isolation Limits: While isolated, the continuous maximum working voltage is limited ($\le 60\ \text{VDC}$). Always refer to the official specifications for the maximum voltage rating to prevent damage or safety hazards.
Software Dependency: Requires NI-DAQmx driver software and a compatible application development environment (like LabVIEW) for programming.
5. Applications (产品应用)
The NI PXI-6238 is ideal for applications where industrial signals, noise immunity, and high channel density are critical.
Industrial Process Control: Monitoring and controlling $4-20\ \text{mA}$ current loops from process variables like pressure, flow, and temperature transmitters, and driving final control elements.
Automotive Test Cells: Measuring current signals from various sensors and simulating control outputs in noisy test environments where isolation is essential for safety and accuracy.
Machine Monitoring and Diagnostics: Acquiring data from current transducers in industrial machinery to perform condition monitoring and predictive maintenance.
High-Voltage System Testing: Used as the low-voltage interface in test setups where isolation protects the instrumentation from potentially damaging high voltages or ground faults.
General Purpose Control and Test: Any PXI system requiring a mix of isolated current I/O and digital I/O for integrated control and measurement.
