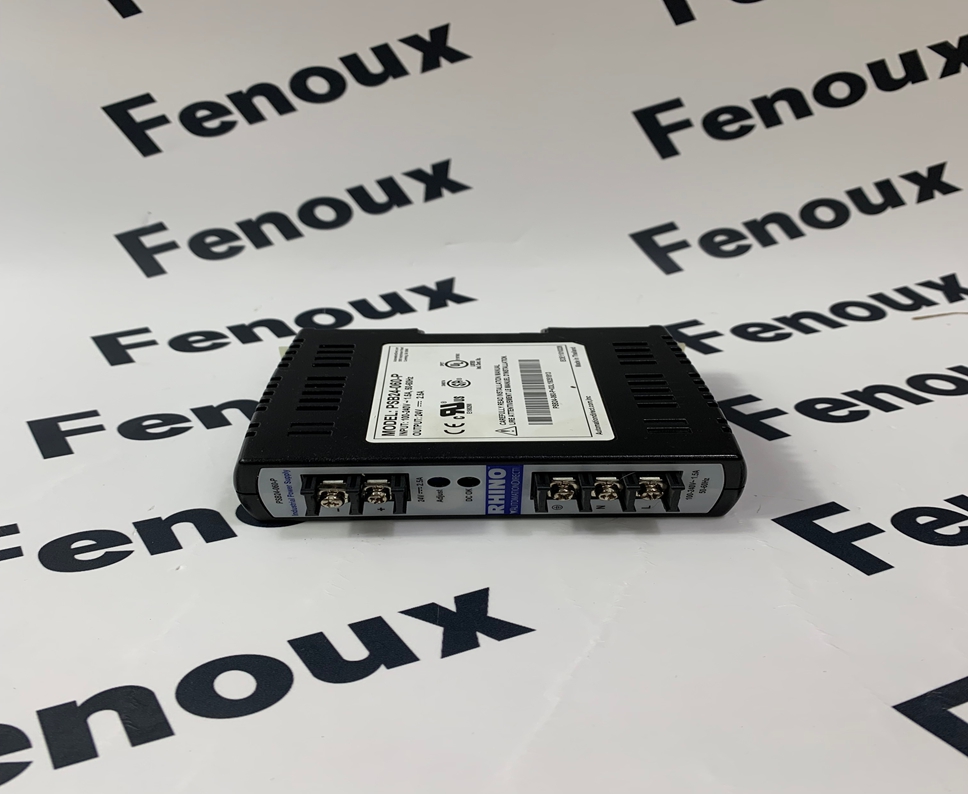

AutomationDirect PSB24-060-P Power Module

AutomationDirect PSB24-060-P Overview

The AutomationDirect PSB24-060-P is a 24 VDC, 2.5A (60W) switching power supply. It is designed to provide reliable DC power for various industrial automation applications. The "PSB" series from AutomationDirect is known for its compact size, high efficiency, and robust design.

Product Detailed Description

• Function:

• Converts AC mains voltage (typically 100-240VAC) into a stable 24VDC output voltage.

• Provides DC power to control systems, sensors, actuators, and other low-voltage DC devices in industrial environments.

• Includes built-in protection features against overvoltage, overcurrent, and short circuits.

• Features:

• Compact and space-saving design.

• High efficiency switching technology.

• Wide AC input voltage range (100-240VAC).

• Regulated output voltage.

• LED indicator for output status.

• Screw terminal connections for easy wiring.

• DIN rail mounting capability.

• Convection cooling (no fan).

Product Parameters

• Output Voltage: 24 VDC (regulated)

• Output Current: 2.5 A

• Output Power: 60 W

• Input Voltage Range: 100-240 VAC (50/60 Hz)

• Input Current: Typically less than 1.5 A at 120 VAC, less than 0.8 A at 240 VAC (refer to datasheet)

• Efficiency: Typically > 85% (refer to datasheet for specific load conditions)

• Overload Protection: Constant current limiting, automatic recovery

• Overvoltage Protection: Typically 30-32 VDC, shut down output

• Short Circuit Protection: Continuous short circuit proof, automatic recovery

• Operating Temperature: -10°C to +60°C (derating may apply above 50°C, refer to datasheet)

• Storage Temperature: -20°C to +85°C

• Humidity: 20% to 90% RH, non-condensing

• Dimensions: Refer to the specific datasheet for detailed dimensions (typically compact)

• Mounting: DIN rail TS-35/7.5 or TS-35/15

• Connections: Screw terminals

• Weight: Refer to the specific datasheet

• Certifications: UL 508, CE, RoHS (refer to the specific datasheet for complete certifications)

Product Advantages

• Reliable Power: Provides a stable and regulated 24VDC output for sensitive electronic devices.

• Compact Size: Saves valuable space in control cabinets.

• High Efficiency: Minimizes energy loss and heat generation.

• Wide Input Range: Can be used with various AC power sources worldwide.

• Built-in Protections: Protects the power supply and connected devices from faults.

• Easy Installation: Screw terminals and DIN rail mounting simplify wiring and installation.

• Cost-Effective: Offers a good balance of performance and price.

• Fanless Cooling: Quiet operation and reduced maintenance.

Precautions

• Correct Wiring: Ensure proper wiring according to the terminal markings and local electrical codes. Use appropriate wire gauges.

• Input Voltage: Verify that the input voltage matches the specified range (100-240VAC).

• Output Load: Do not exceed the maximum output current (2.5A) or power (60W) rating.

• Overload Protection: While the power supply has overload protection, sustained overloads should be avoided.

• Ventilation: Ensure adequate ventilation around the power supply to prevent overheating, especially when operating at high loads or ambient temperatures. Refer to the datasheet for derating curves.

• Mounting Orientation: Mount the power supply in the recommended orientation (typically vertical) for optimal cooling.

• Grounding: Ensure proper grounding of the power supply.

• Environmental Conditions: Avoid operating in environments with excessive dust, humidity, or corrosive substances.

Product Applications

The AutomationDirect PSB24-060-P power supply is suitable for a wide range of industrial automation applications, including:

• PLC and Controller Power: Providing power for programmable logic controllers (PLCs) and other control modules.

• Sensor Power: Supplying power to various industrial sensors (proximity, photoelectric, etc.).

• Actuator Power: Powering small DC actuators, solenoids, and valves.

• HMI Power: Supplying power to Human Machine Interface (HMI) panels.

• Small Motor Control: Powering low-voltage DC motors and drives.

• General Low-Voltage DC Power: Providing a stable 24VDC source for various industrial devices and equipment.

• Lighting: Powering low-voltage DC industrial lighting.

• Communication Devices: Supplying power to network switches and other communication equipment.

This information provides a general overview of the AutomationDirect PSB24-060-P power supply. Always refer to the official AutomationDirect datasheet for the most accurate and detailed specifications, installation instructions, and safety guidelines.
