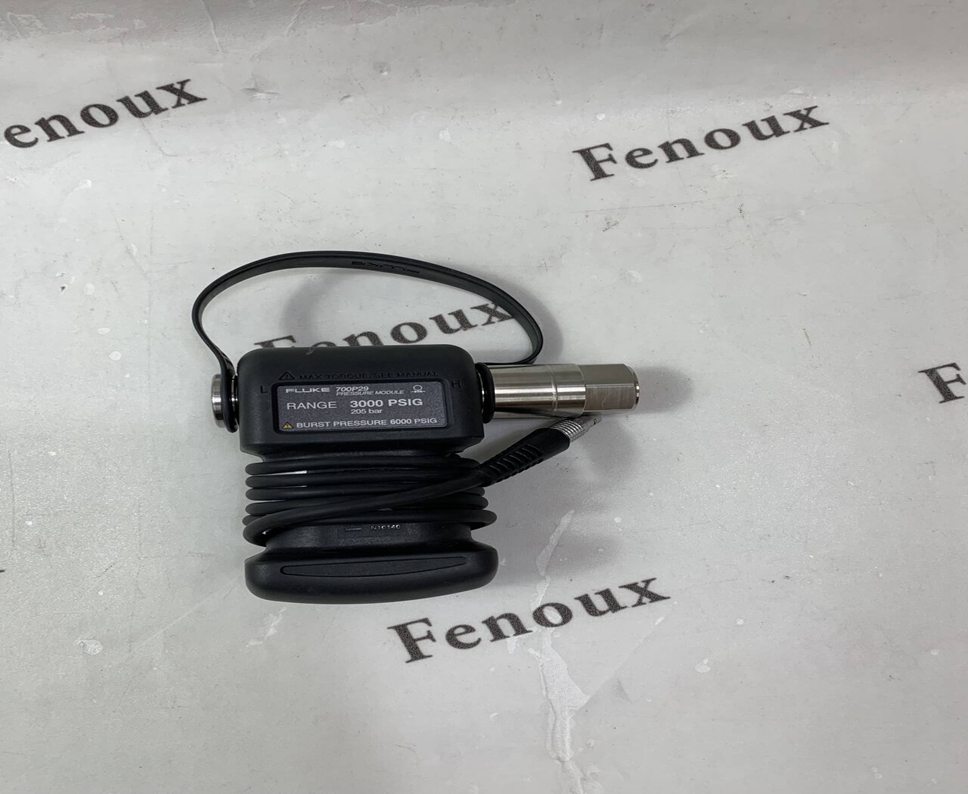

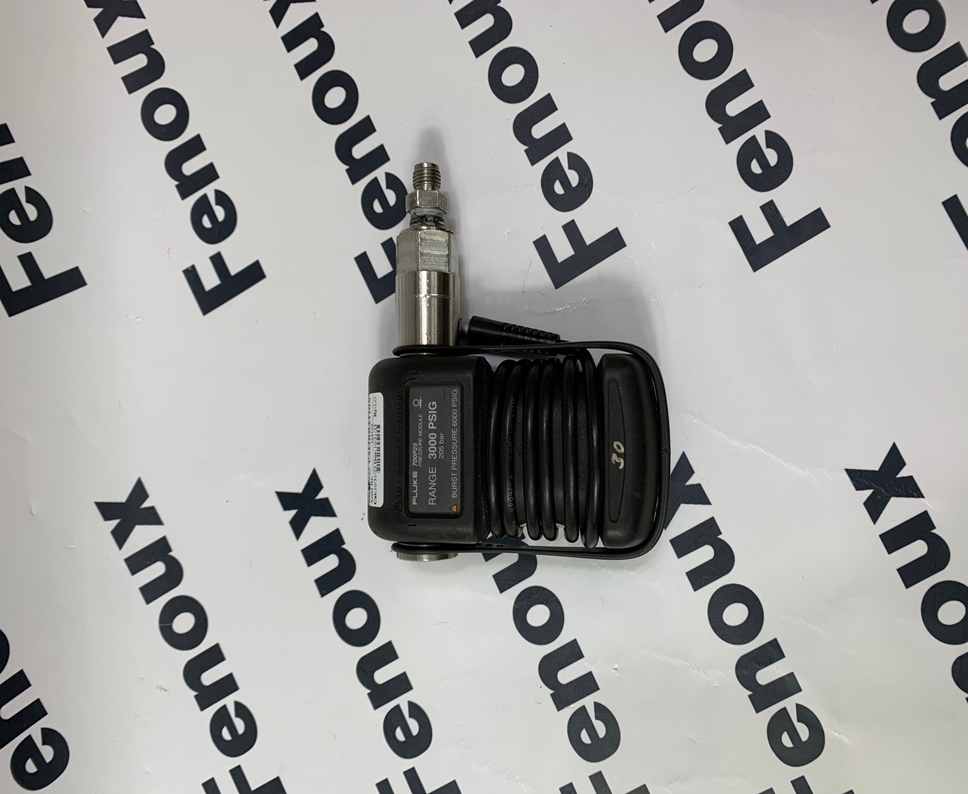

Fluke 700P29 Gauge Pressure Module

Fluke 700P29 Gauge Pressure Module Overview

The Fluke 700P29 is a high-accuracy, rugged gauge pressure module that extends the capabilities of Fluke's 700 Series Process Calibrators. It allows technicians to perform precise pressure measurements in various industrial and process control applications. It measures pressure relative to atmospheric pressure and is designed for use with dry, non-corrosive gases as media.

Product Detailed Description

• Function:

• Measures gauge pressure (pressure relative to the ambient atmospheric pressure).

• Connects to a Fluke 700 Series Process Calibrator (e.g., 700G, 717, 725, 750 Series) to display pressure readings.

• Converts the measured pressure into a digital signal that is sent to the calibrator for display and further processing.

• Offers internal temperature compensation from 0°C to 50°C for full-accuracy performance, ensuring reliable readings across a typical industrial temperature range.

• Displays pressure readings in any of 10 different user-selectable pressure units on the connected calibrator.

• Features:

• High Pressure Range: Designed for measurements up to 3000 psi (20.7 MPa).

• Accuracy: High reference uncertainty (e.g., 0.050% of full span) and total uncertainty (e.g., 0.080% of full span for one year, 0°C to 50°C).

• Temperature Compensation: Internal compensation over a wide range (0°C to 50°C) ensures stable and accurate readings.

• Rugged Construction: Encased in a durable urethane molded case to protect against rough handling and harsh industrial conditions.

• NIST-Traceable Calibration Certificate: Each module typically comes with a calibration certificate traceable to national standards, assuring measurement quality.

• Local Calibration Capability: Can be calibrated locally using the Fluke 700PCK Pressure Calibration Kit, a PC, and a precision pressure source, allowing for in-house calibration and reduced downtime.

• Compatible Media: Designed for use with dry air or non-corrosive gas as the high-side media. The wetted material for the high side is Hastelloy C276 for excellent chemical compatibility.

• Standard Connection: Typically features a 1/4" NPT pressure fitting.

Product Parameters

• Pressure Type: Gauge Pressure

• Range: 3000 psi / 20.7 MPa

• Resolution: 0.1 psi / 0.001 MPa (typical)

• Reference Uncertainty (23 ± 3°C): 0.050% of full span

• Total Uncertainty (1 year, 0°C to 50°C): 0.080% of full span

• Total Uncertainty (1 year, -10°C to 0°C): 1.0% of full span

• Compensated Temperature Range: 0°C to 50°C (32°F to 122°F). Note: Total uncertainty specifications are often given for this range.

• High Side Media Compatibility: Dry air or non-corrosive gas. Wetted material: Hastelloy C276.

• Low Side Media Compatibility: Not applicable (gauge pressure).

• Pressure Fitting: 1/4" NPT (female)

• Overpressure Rating: Typically 3x full scale (burst pressure).

• Operating Temperature: -10°C to +55°C (14°F to 131°F)

• Storage Temperature: -20°C to +60°C (-4°F to 140°F)

• Warranty: Typically one year.

• Power Source: Receives operating power from the connected Fluke 700 Series Process Calibrator.

Product Advantages

• High Accuracy: Provides precise pressure measurements, critical for calibrating and troubleshooting sensitive pressure instruments.

• Wide Pressure Range: Suitable for high-pressure applications up to 3000 psi.

• Robustness: Built for demanding industrial environments with a rugged, urethane-molded case, ensuring durability and longevity.

• Temperature Compensated: Ensures accurate readings even with variations in ambient temperature, reducing errors in field measurements.

• Traceability: Includes a NIST-traceable calibration certificate, providing confidence in measurement quality and compliance.

• User-Friendly: Integrates seamlessly with Fluke 700 Series calibrators, offering a familiar interface and multiple pressure unit options for ease of use.

• Cost-Effective Calibration: The ability to calibrate locally using the 700PCK kit can reduce calibration costs and instrument downtime.

• Reliable Brand: Fluke is a globally recognized and trusted brand in test and measurement, known for quality and support.

Precautions

• Overpressure Damage: Never apply pressure exceeding the specified BURST PRESSURE (typically 3 times full scale). This can permanently damage the module. Always isolate the pressure system and slowly bleed off pressure before connecting or disconnecting the module.

• Media Compatibility: Use the module ONLY with media compatible with Hastelloy C276 (high side), typically dry air or non-corrosive gases. Using incompatible media can lead to corrosion and damage.

• Torque Control: When attaching fittings, do not apply more than 10 ft-lbs of torque between the pressure module fittings or between the fittings and the module body to avoid mechanical damage. Use appropriate torque tools.

• Zeroing: For best results, it is recommended to pressurize the module to full scale and then vent to zero pressure (atmosphere) prior to zeroing and making measurements with the calibrator. Always zero the module before measurements for optimal accuracy.

• Environmental Conditions: Operate and store the module within the specified temperature and humidity ranges. Avoid exposure to extreme temperatures, direct sunlight, or highly corrosive atmospheres.

• Cleanliness: Ensure the pressure fitting and the media are clean and free of debris to prevent contamination of the sensor.

• Calibration: While stable, regular calibration according to your quality system requirements is recommended to maintain specified accuracy over time.

• Compatibility: Ensure the Fluke 700P29 is compatible with your specific Fluke 700 Series Process Calibrator model.

Product Applications

The Fluke 700P29 pressure module is essential for technicians and engineers involved in the installation, maintenance, and calibration of pressure instruments across various industries.

• Process Control: Calibrating and troubleshooting pressure transmitters, pressure switches, and pressure gauges in industrial processes.

• HVAC Systems: Measuring and calibrating high-pressure refrigerant lines or pneumatic control systems.

• Hydraulics and Pneumatics: Testing and maintaining high-pressure hydraulic and pneumatic systems and components.

• Oil & Gas: Verifying pressure readings in pipelines, wells, and refining processes.

• Manufacturing: Quality control, testing, and calibration of pressure-dependent equipment and systems.

• Field Service: Portable and rugged design makes it ideal for on-site calibration and troubleshooting in demanding environments.

• Calibration Laboratories: Used as a precise pressure reference in calibration setups.
