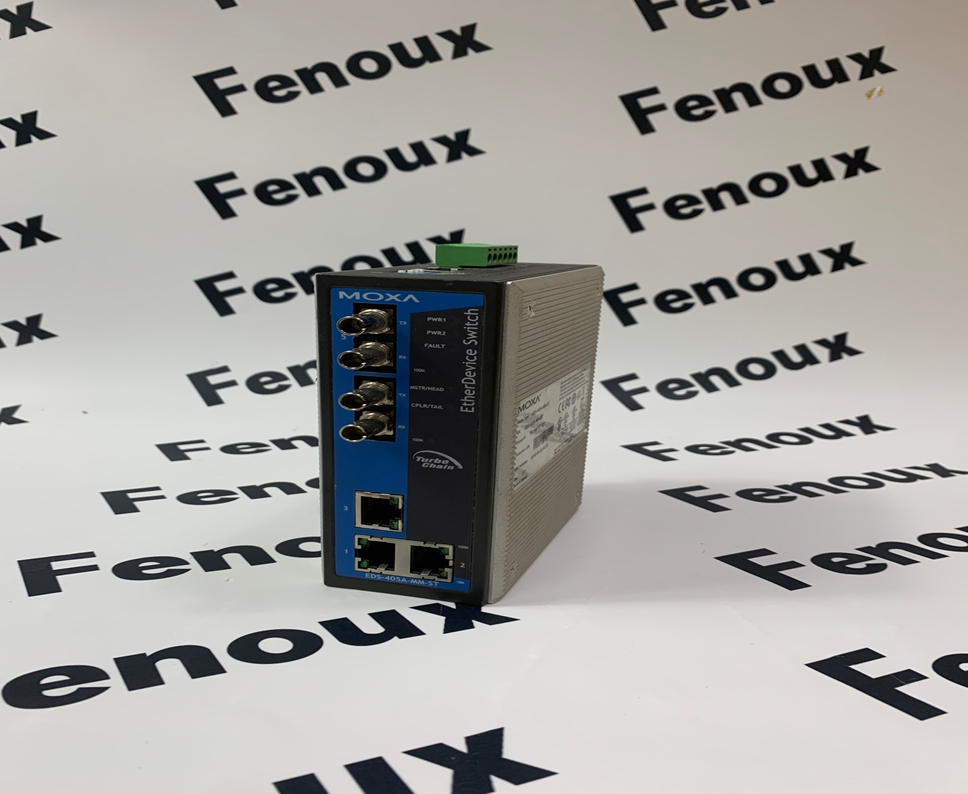

Moxa EDS-405A-MM-ST Ethernet Switch

The search results provide comprehensive product details for the Moxa EDS-405A-MM-ST, primarily from Moxa's official website and product datasheets.

Here's a detailed product description:

The Moxa EDS-405A-MM-ST is an entry-level managed Ethernet switch designed for industrial applications. It features 5 ports in total:

• 3 x 10/100BaseT(X) ports with RJ45 connectors (auto-negotiating speed, full/half duplex, auto MDI/MDI-X).

• 2 x 100BaseFX multi-mode ports with ST connectors.

Key Features and Specifications:

• Network Redundancy:

• Supports Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches).

• RSTP/STP for network redundancy.

• Management & Protocols:

• Managed via web browser, CLI, Telnet/serial console, Windows utility, and ABC-01.

• Supports industrial protocols like EtherNet/IP and Modbus TCP.

• Features include IGMP Snooping, QoS (IEEE 802.1p and TOS/DiffServ), IEEE 802.1Q VLAN, port-based VLAN, RMON, bandwidth management, and port mirroring.

• Supports SNMPv1/v2c/v3.

• NTP Server/Client for time management.

• DHCP Option 82 for IP address assignment.

• Switch Properties:

• IGMP Groups: 256

• MAC Table Size: 2K

• Max. No. of VLANs: 64

• Packet Buffer Size: 1 Mbits

• Priority Queues: 4

• VLAN ID Range: VID 1 to 4094

• Optical Fiber (100BaseFX Multi-Mode):

• Wavelength TX Range: 1260 to 1360 nm

• Wavelength RX Range: 1100 to 1600 nm

• Optical Power TX Range: -10 to -20 dBm

• Optical Power RX Range: -3 to -32 dBm

• Fiber Cable Type: OM1, 50/125 µm

• Typical Distance: 4 km

• Power Parameters:

• Input Voltage: 12/24/48 VDC (Redundant dual inputs)

• Operating Voltage: 9.6 to 60 VDC

• Input Current: 0.594 A @ 12 VDC, 0.286 A @ 24 VDC, 0.154 A @ 48 VDC

• Overload Current Protection: Supported

• Reverse Polarity Protection: Supported

• Connection: 1 removable 6-contact terminal block

• Physical Characteristics:

• Housing: Metal

• IP Rating: IP30

• Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

• Weight: 650 g (1.44 lb)

• Installation: DIN-rail mounting (wall mounting with optional kit)

• Environmental Limits:

• Operating Temperature: -10 to 60°C (14 to 140°F)

• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity: 5 to 95% (non-condensing)

• Standards and Certifications:

• Safety: UL 508, UL 60950-1, EN 62368-1

• EMC: EN 55032/35

• EMI: CISPR 32, FCC Part 15B Class A

• EMS
