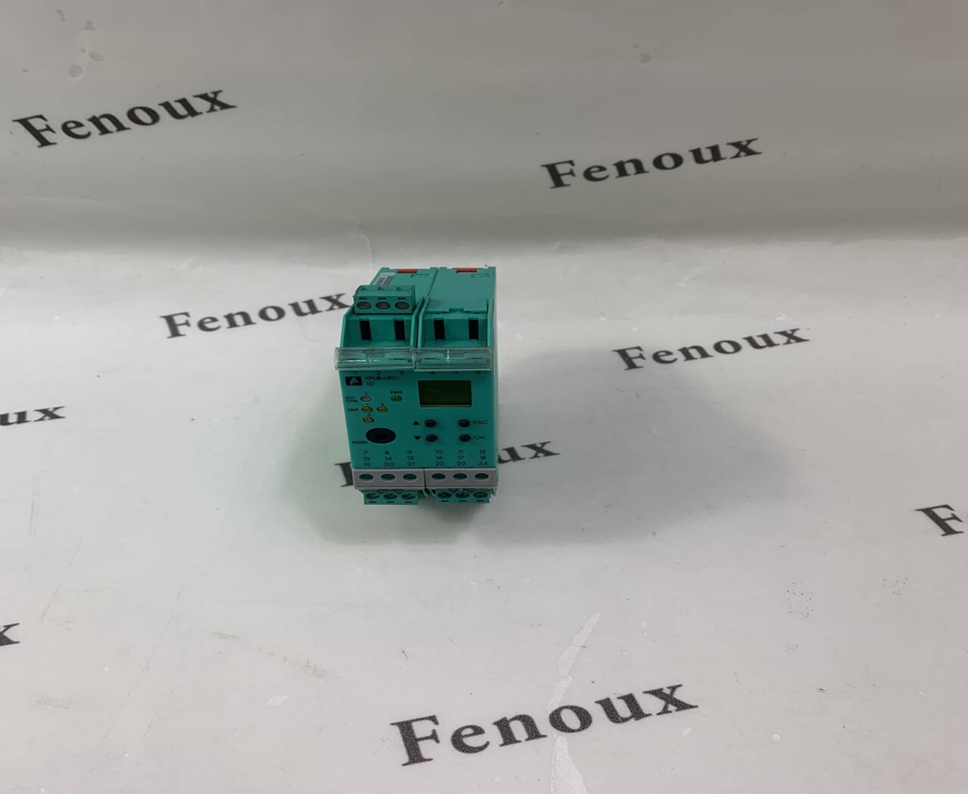

Pepperl+Fuchs HID2030

Brand:Pepperl+Fuchs

Model number: HID2030

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.25kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Pepperl+Fuchs HID2030 I/O module




INQUIRE NOW

Products Name: Pepperl+Fuchs HID2030

PRODUCT DESCRIPTION

1-channel signal conditionerUniversal usage at different power supplieslnput for 2- or 3-wire sensors, NAMUR sensors or drycontacts

lnput frequency 1 mHz ... 12 kHz

Current output 0/4 mA ... 20 mARelay and transistor output

Start-up override

Line fault detection (LFD)Up to SIL2 acc.to lEC 61508/EC 61511

General specifications

Signal type

Digitallnput

Supply

Connection

R ated voltage

Power loss/power consumption

terminals 23 24

20 ... 90 V DC /48 ... 253 V AC 50 ...60 Hz

2 W ;2.5VA/ 2.2 W;3 VA

Input

Connection

Input i

Open circuit voltage/short-circuitcurrent

nput resistance

Switching point/switching hysteresis

Pulse duration

Input frequency

Lead monitoring

Input l

Active/Passive

Open circuit voltage/short-circuit

lnput : 2-wire sensor: terminals 1+, 3- three wire sensor: terminals 1+, 2-and 3input Il: terminals 13+ 14- start-up override:

2- or 3-wire sensor, sensor acc . to EN 60947-5-6 (NAMUR) or mechanical contact22 V/40 m4

4.7 k

logic 1:> 2.5 mA ; logic 0: < 1.9 mA

>50 us

0.001 ... 12000 Hz

breakage I s 0.15 mA; short-circuit 1> 4 mA

startup override: 1 ... 1000 s adjustable in steps of 1 s

> 4 mA (formin. 100 ms) /1 < 1.5 mA

18 V/5 mA

current

Output

Connection

Output1 Il

Contact loading

Mechanical life

Energized/De-energized delay

Output lll

Contact loading

Signal level

OutputIV

Current range

Open loop voltage

Load

Fault signal

output l: terminals 10. 11 12output Il: terminals 16. 17. 18outout Ill: terminasl 18+.20output IV: terminals 8+. 7

signal, relay

250 V AC /2 A/cos 20.7 ;40 V DC /2 A

5 x 10%switching cycles

approx. 20 ms/ approx. 20 ms

electronic output, passive

40V DC

1-signal: (L+) -2 5 V (50 mA, short-circuit/overload proof0-signal: blocked output (off-state current s 10 uA)

analog

0 ... 20 mA or4 ... 20 m4

s24VDC

650

downscale I s 3.6 mA , upscale 2 21 .5 mA (acc. NAMUR NE43)

Transfer characteristics

nputi
