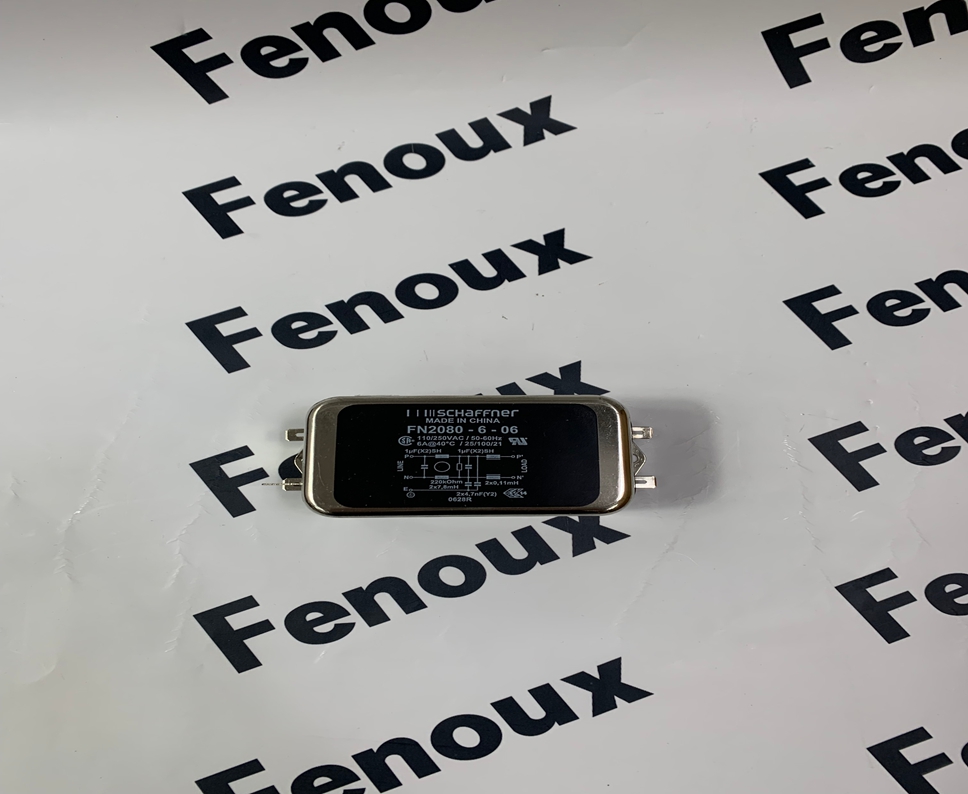

Schaffner FN2080-6-06 Overview
The Schaffner FN2080-6-06 is a general-purpose single-phase line filter designed to suppress electromagnetic interference (EMI) in electrical and electronic equipment. It helps ensure that equipment complies with EMC (Electromagnetic Compatibility) standards and improves the overall reliability of systems.
Product Detailed Description
Function:
Attenuates incoming and outgoing electromagnetic interference from power lines.
Improves the immunity of equipment against external EMI, preventing it from affecting normal operation.
Reduces EMI generated by equipment, preventing it from interfering with other electronic devices.
Features:
General-purpose single-phase filter.
Compact design for easy installation.
Provides good attenuation performance, especially in higher frequency ranges.
Exhibits good saturation characteristics.
Reliable performance and long lifespan.
RoHS compliant.
Product Parameters
Rated Current:
6 A
Rated Voltage:
250 VAC (Max.)
Operating Frequency:
DC to 400 Hz
Leakage Current (at 250 VAC / 50 Hz):
< 0.5 mA
Test Voltage (Line to Line):
1500 VDC, 2 sec
Test Voltage (Line/Neutral to Ground):
2250 VDC, 2 sec
Climatic Category:
HPF (25/085/21)
Terminal Type:
6.3 x 0.8 mm Quick Connect Terminals
Mounting Style:
Screw Mounting
Housing Material:
Metal
Weight:
Approx. 100 g
Standards:
UL 1283
CSA C22.2 No. 8
IEC/EN 60939
RoHS
Product Advantages
Effective EMI Suppression:
Provides good attenuation of both common-mode and differential-mode interference.
Improved System Reliability:
Reduces equipment malfunctions caused by EMI.
Ensures EMC Compliance:
Helps equipment meet relevant EMC standards.
Easy Installation:
Compact design and quick connect terminals facilitate easy installation.
Cost-Effective:
Offers reliable performance at a reasonable price.
Global Approvals:
Complies with multiple international safety and EMC standards.
Precautions
Correct Selection:
Select the appropriate filter based on the rated current and voltage of the equipment.
Consider the required attenuation performance and frequency range for the application.
Correct Installation:
Mount the filter as close as possible to the source of interference or the affected equipment.
Ensure a good ground connection for the filter using the shortest and thickest possible ground wire.
Follow the manufacturer's installation instructions.
Rated Parameters:
Do not exceed the filter's rated current and voltage.
Environmental Conditions:
Ensure the operating environment temperature and humidity are within the filter's permissible range.
Safety:
Always disconnect the power supply during installation and maintenance.
Product Applications
The Schaffner FN2080-6-06 line filter is widely used in various electrical and electronic equipment requiring electromagnetic interference suppression, including:
Power Supplies:
Switched-Mode Power Supplies (SMPS)
Uninterruptible Power Supplies (UPS)
Industrial Equipment:
Automation Systems
Motor Drives
Welding Equipment
Medical Equipment:
Power Supplies
Diagnostic Equipment
Office Equipment:
Computers
Printers
Monitors
Household Appliances:
Washing Machines
Refrigerators
Air Conditioners
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
