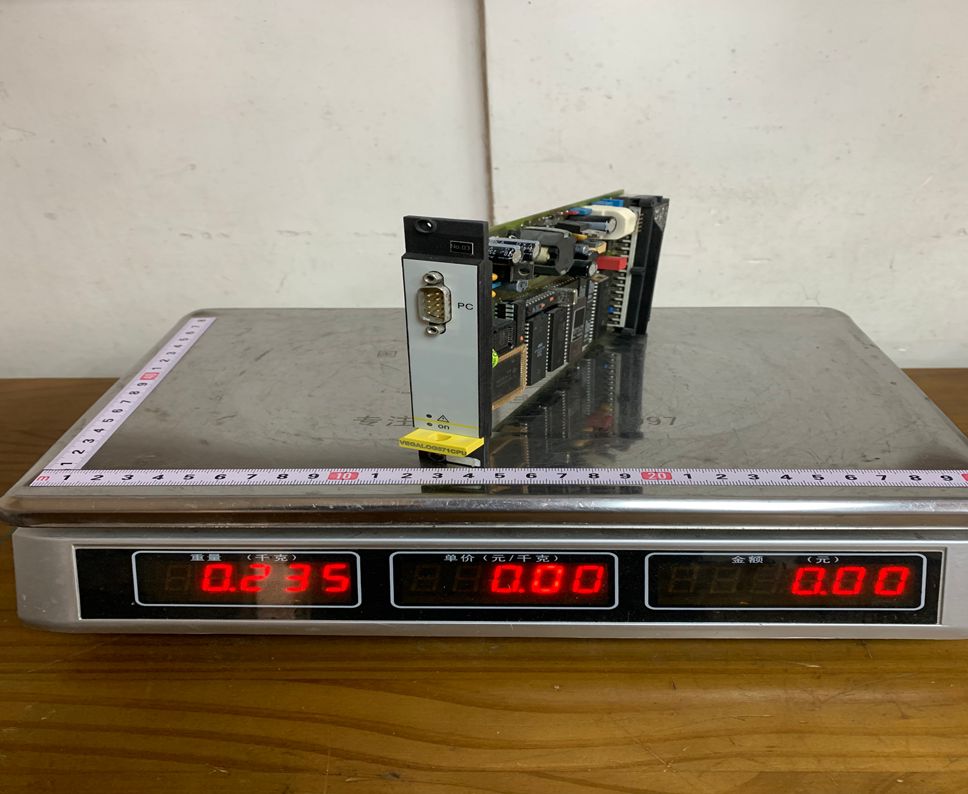

VEGA VEGALOG571CPU CPU module

The VEGALOG 571 CPU is typically the brain of a multi-point level or pressure measurement system. It is designed for installation in control cabinets, providing a robust and centralized platform for acquiring, calculating, and visualizing measurement data from various field instruments (like VEGAPULS radars or VEGABAR pressure sensors).

• Function: Central Processing Unit and Data Manager for measurement systems.

• System Integration: Part of the modular VEGALOG control unit/system.

• Core Role: Handles the processing of sensor signals, manages the system configuration, and facilitates communication with higher-level control systems (e.g., PLC, DCS).

⚙️ Product Specifications (Key Parameters)

The specific technical specifications can vary slightly depending on the exact version, but the general parameters for a VEGALOG 571 CPU are as follows:

⭐ Product Advantages

1. Centralized Data Management: It consolidates data from multiple level, pressure, or flow sensors into one central unit, simplifying system overview and control.

2. Modularity and Scalability: As a CPU for a modular system, it allows users to easily expand the system by adding more I/O modules (analogue, digital, or relay), adapting to changing process needs.

3. Advanced Visualization and Operation: The integrated display and operating elements allow for local diagnosis, parameter setting, and visualization of measured values without needing external programming tools.

4. Fieldbus Integration: The support for standard industrial communication protocols (like Modbus/Profibus) enables seamless and efficient data exchange with PLCs or Distributed Control Systems (DCS).

5. Reliability (VEGA Quality): As a VEGA component, it is designed for reliable and continuous operation in demanding industrial environments.

⚠️ Cautions (Important Notes)

• System Dependency: The 571 CPU must be used within a VEGALOG system chassis/rack with compatible power supply and I/O modules. It is not a standalone controller.

• Firmware Compatibility: Ensure that the CPU's firmware version is compatible with all connected VEGALOG I/O modules and the field devices being monitored.

• Environmental Protection: While the system is robust, it must be installed inside a control cabinet to maintain its intended $IP$ rating (usually $IP20$) and protect it from moisture, dust, and excessive vibration.

• Configuration: Proper configuration and addressing of the field sensors and the CPU's communication settings are crucial for accurate system operation. This should be performed by trained personnel.
