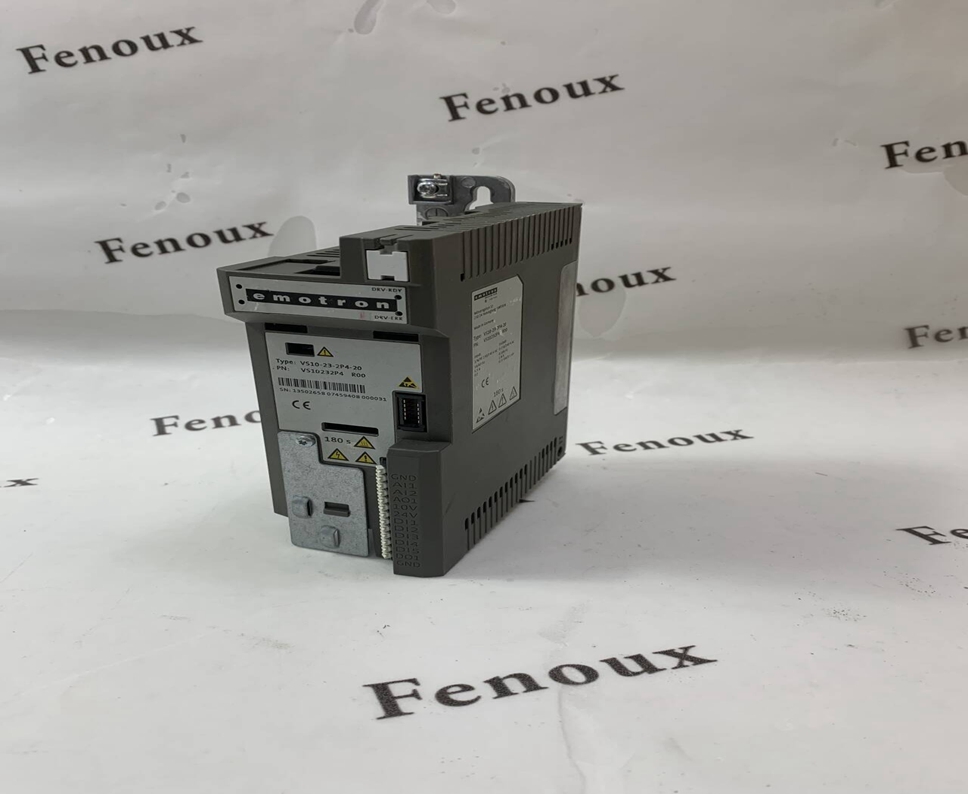

1. Key hole mounting
2. Main Power Supply
(removable connector ≤ 2.2 kW)
3. Motor Power Terminal
(removable connector ≤ 2.2 kW)
4. Relay output
5. Memory module (parameter backup)
6. CAN connection with
shield plate fixation (option)
7. HMI interface:
Control panel hot-pluggable (option)
8. I/O Terminal with shield plate
(removable terminals > 2.2 kW)
Mains voltage VS10: 1-phase, 190–240V +/-10%
VS30-23: 1/3 phase, 190–240V +/-10%
VS30-40: 3 phase, 380–480V +/-10%
Mains frequency 45Hz…65Hz
Output voltage 3-phase, 0-Mains supply voltage level
Output frequency 0–599 Hz
Degree of Protection IP20 / NEMA250
Mounting Zero clearance side by side upright mounting, without derating
Cooling Direct Air cooling (>= Unit size 3 with fan)
Connections Spring loaded control terminals (removable ≤ 2.2 kW)
Removable power terminals <=2.2kW
Approvals CE, UL, cUL, RoHS2
EMC compliance IEC 61800-3:2004 – Category C2, <20 m motor cable
Overload capacity 200% rated current for 3s
150% rated current for 60s
Switching frequency 2,4,8,16 kHz
Temperature -10°C – 55°C /4kHz (>45°C/ reduce rated output current by 2.5 %/°C)
General specifications
Process Interface Qty
Digital input 5: (24VDC)
Digital output 1: (10..30V/50mA)
Analog input 1: (0..+10V, 0/4..+20mA)
1: (0.. +10V)
1: (10V) control supply
Analog output 1: (0..10V/max.5mA, 0/4...20mA)
1: (+10VDC Reference)
Relay 1: (NO/NC)
AC 250V, 3A / DC 24V, 2A
Integrated motor holding brake control YES
Fieldbus communication optional
CAN open YES
Modbus RS485 YES
