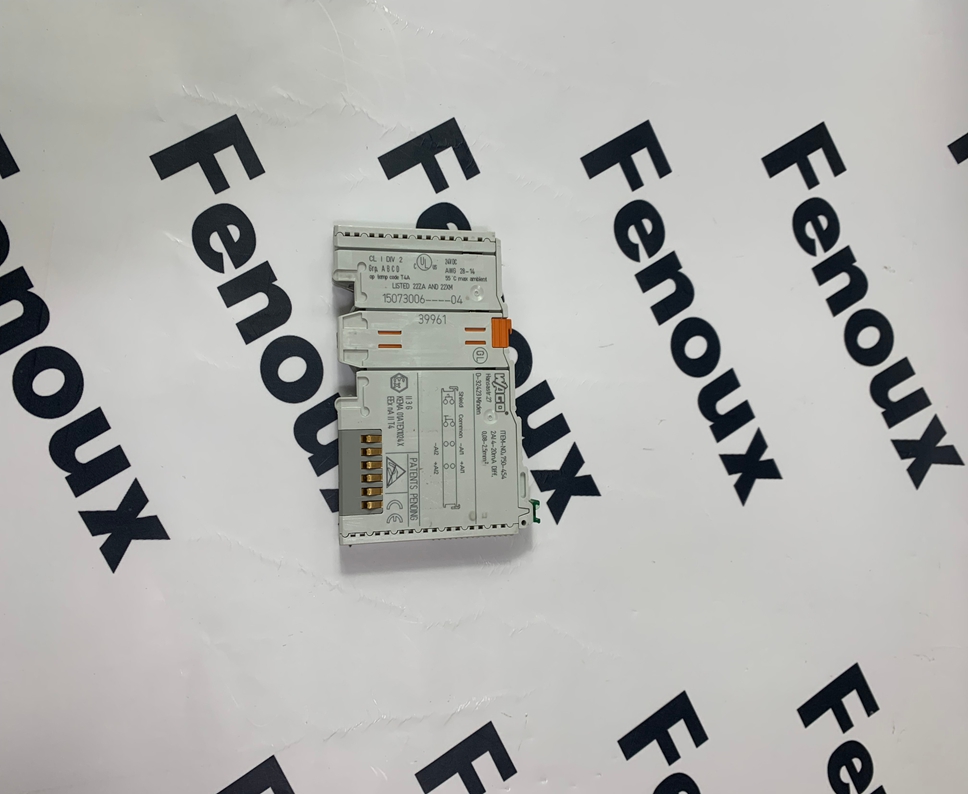

WAGO 750-454 Input Module

WAGO 750-454 Overview

The WAGO 750-454 is a 4-channel analog current input module belonging to the WAGO-I/O-SYSTEM 750 series. It is used to convert analog current signals from field devices into digital signals that can be processed by WAGO controllers.

Product Detailed Description

• Function:

• Receives 4 independent analog current signals from field devices.

• Converts these current signals into 12-bit or 16-bit (configurable) digital values.

• Transmits the digital values to the controller via the WAGO I/O bus.

• Provides electrical isolation to protect the control system from voltage spikes and interference on the field side.

• Supports single-ended inputs.

• Features:

• 4 analog current input channels.

• Configurable input ranges (e.g., 0-20 mA, 4-20 mA).

• Optional 12-bit or 16-bit resolution.

• Diagnostics per channel (e.g., wire break detection).

• LEDs indicate the status of the module and channels.

• Compact, modular design for easy installation and expansion.

Product Parameters

• Number of Channels: 4

• Analog Input Type: Current, single-ended

• Input Range: Configurable, e.g., 0-20 mA, 4-20 mA

• Resolution: Selectable 12-bit or 16-bit

• Accuracy: Depends on configuration and specific model, please refer to the datasheet

• Input Impedance: Typically 250 Ω

• Conversion Time: Depends on configuration and specific model, please refer to the datasheet

• Electrical Isolation: System side/field side 500 V AC

• Supply Voltage (System Side): 5 V DC (via I/O bus)

• Current Consumption (System Side): Depends on specific model, please refer to the datasheet

• Field Side Supply: Not required, module is passive input

• Connection Type: CAGE CLAMP® terminals

• Conductor Cross-Section (Solid/Stranded): 0.08 - 2.5 mm² / 0.08 - 2.5 mm²

• Operating Temperature: -20 °C to +55 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity (Non-condensing): 0 to 95 % RH

• Dimensions (W x H x D): 12 mm x 100 mm x 69.8 mm

• Weight: Depends on specific model, please refer to the datasheet

• Standards: EN 61131-2, UL 508

• Approvals: CE, UL, cUL, EAC

Product Advantages

• High Channel Density: 4 analog input channels per module save space and cost.

• Flexible Input Ranges: Configurable input ranges make it suitable for various current signals.

• High Accuracy and Resolution: Selectable 12-bit or 16-bit resolution meets different accuracy requirements.

• High Reliability: WAGO products are known for their high quality and reliability.

• Easy Integration: As part of the WAGO-I/O-SYSTEM 750 series, it can be easily integrated into WAGO control systems.

• Diagnostic Functions: Provides diagnostic functions such as wire break detection for easy troubleshooting.

• Electrical Isolation: Protects the control system from interference on the field side.

• Compact, Modular Design: Saves control cabinet space and allows for easy expansion.

• Tool-Free Wiring: Uses CAGE CLAMP® terminals for fast, safe, and maintenance-free wiring.

Precautions

• Correct Wiring: Ensure correct wiring according to the wiring diagram on the module and WAGO's wiring instructions, paying attention to polarity.

• Input Range Matching: Configure the module's input range according to the output signal range of the field devices.

• Environmental Conditions: Ensure the module is used within the permissible operating temperature and humidity ranges.

• EMC Compatibility: Follow EMC (Electromagnetic Compatibility) guidelines to ensure stable system operation.

• Diagnostic Information: Monitor the module's LED indicators and the control system's diagnostic information for timely detection and handling of faults.

• Heat Dissipation: Pay attention to the module's heat dissipation and take cooling measures if necessary.

• Grounding: Ensure proper system grounding.

Product Applications

• Industrial Automation:

• Process Control: Receiving current signals from pressure sensors, temperature transmitters, flow meters, etc.

• Machine Building: Monitoring motor currents, valve position feedback, etc.

• Building Automation: Acquiring signals from sensors (e.g., temperature, humidity, pressure) in HVAC systems.

• Energy Management: Monitoring current consumption.

• Process Engineering:

• Automation control systems in the chemical, pharmaceutical, food and beverage industries, etc.

• Research and Development:

• Used for data acquisition and measurement applications.
