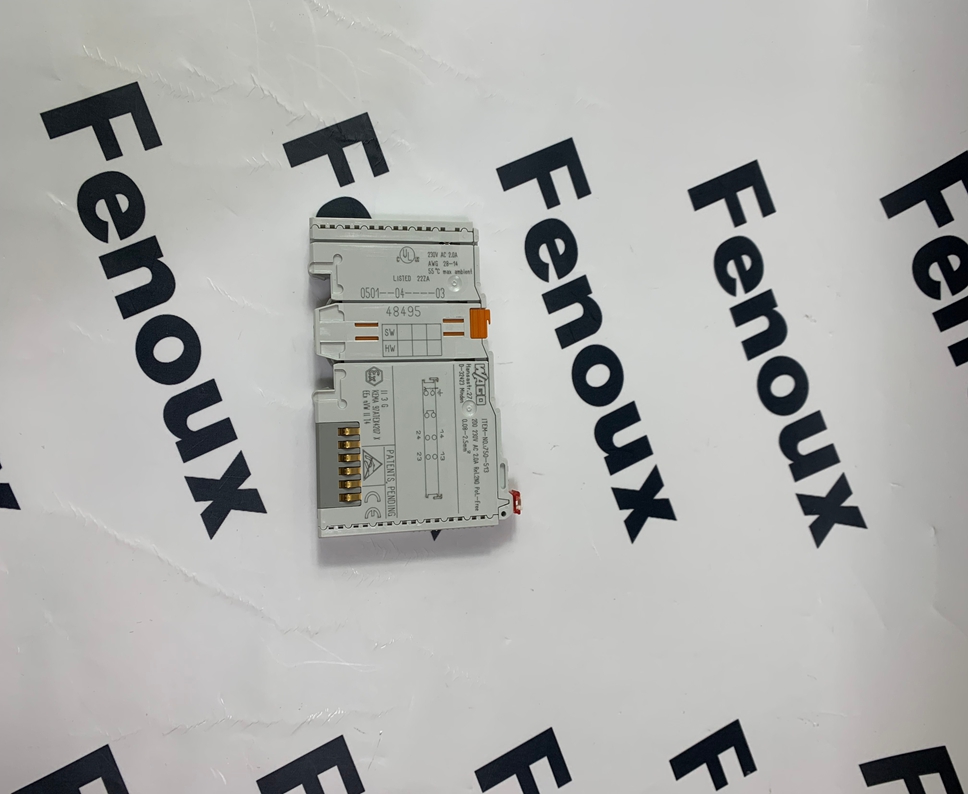

WAGO 750-513 Input Module

WAGO 750-513 Overview

The WAGO 750-513 is a 2-channel analog input module belonging to the WAGO-I/O-SYSTEM 750 series. It is used to acquire analog signals, such as voltage or current signals, in industrial automation systems.

Product Detailed Description

• Function:

• Acquires two independent analog input signals from field devices.

• Configurable for voltage or current input modes.

• Provides electrical isolation to protect the control system from interference from field signals.

• Supports different input ranges, configurable via software.

• Converts analog signals into digital signals that can be processed by the control system.

• Features:

• 2 analog input channels.

• Configurable input types (voltage or current).

• Electrical isolation channel to system.

• 12-bit conversion accuracy.

• Supports single-ended inputs.

• Modular design within the WAGO-I/O-SYSTEM 750, easy to expand and integrate.

• DIN rail mounting.

Product Parameters

• Number of Channels:

• 2

• Input Types (Configurable):

• Voltage: ±10 V, ±5 V, ±2.5 V, 0...10 V, 0...5 V, 1...5 V

• Current: ±20 mA, 0...20 mA, 4...20 mA

• Resolution:

• 12 bits

• Conversion Time:

• Typically a few milliseconds per channel (depending on configuration).

• Electrical Isolation:

• 500 V system side / field side

• Input Impedance:

• Voltage input: ≥ 100 kΩ

• Current input: approx. 250 Ω

• Supply Voltage:

• 5 V DC system power supplied via WAGO I/O bus.

• Current Consumption:

• Typically low, refer to the manual for specific values.

• Connection Method:

• Spring clamp terminals (CAGE CLAMP®).

• Operating Temperature:

• -25 °C to +60 °C.

• Storage Temperature:

• -40 °C to +85 °C.

• Protection Class:

• IP20.

• Dimensions (W x H x D):

• Typically 12 mm x 100 mm x 69.8 mm.

• Weight:

• Typically approx. 35 g.

• Standards Compliance:

• Complies with relevant CE and other industrial standards.

Product Advantages

• Flexibility:

• Configurable voltage and current input types, suitable for various analog signals.

• High Accuracy:

• 12-bit resolution provides precise signal acquisition.

• Electrical Isolation:

• Protects the control system from electrical interference on the field side.

• Easy Integration:

• As part of the WAGO-I/O-SYSTEM 750, it can be easily integrated into existing WAGO control systems.

• Modular Design:

• Convenient for system expansion and maintenance.

• Reliability:

• WAGO products are known for their high quality and reliability.

• Spring Clamp Termination:

• CAGE CLAMP® technology provides fast, secure, and maintenance-free wiring.

Precautions

• Correct Wiring:

• Follow the WAGO wiring diagrams and product manual for correct wiring, ensuring reliable connection of signal and power lines.

• Input Range Configuration:

• Before use, correctly configure the input type and range for each channel using WAGO configuration software (e.g., WAGO-I/O-PRO) to match the field signals.

• Power Requirements:

• Ensure the WAGO I/O bus provides sufficient 5 V DC system power.

• Environmental Conditions:

• Avoid using the module in environments exceeding its operating temperature and humidity ranges.

• Avoid strong vibrations and shocks.

• Cable Shielding:

• For analog signals that are susceptible to interference, it is recommended to use shielded cables and ground them correctly.

Product Applications

• Industrial Automation:

• Acquisition of analog signals from sensors (e.g., temperature sensors, pressure sensors, level sensors).

• Process Control:

• Monitoring and control of analog parameters in industrial processes.

• Building Automation:

• Acquisition of analog signals from HVAC systems, lighting systems, etc.

• Machine Manufacturing:

• Acquisition of analog data on machine operating status.

• Energy Management:

• Monitoring of analog signals for energy consumption.

• **Any automation system requiring the acquisition of multiple analog input signals.
