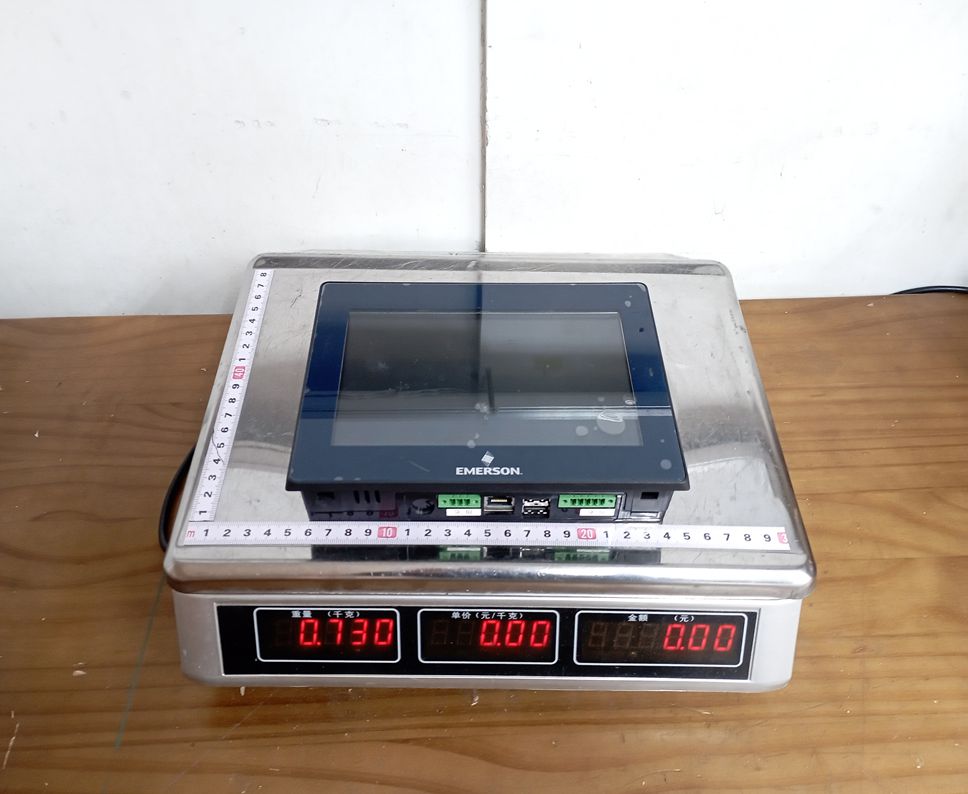

EMERSON IC755CSW07CDACA-FY HMI

1. Product Description

The IC755CSW07CDACA-FY is a 7-inch widescreen operator interface. Unlike traditional HMIs, the QuickPanel+ acts as an all-in-one "Productivity Station." It leverages a powerful processor and a high-resolution capacitive touchscreen to provide a smartphone-like experience (multi-touch) for factory floor operators. It is designed to handle complex visualization, internal data logging, and communication with a variety of PLCs and industrial controllers.

2. Technical Specifications

3. Product Advantages

• High Performance: The 1 GHz processor ensures smooth transitions, fast screen updates, and the ability to run logic and visualization simultaneously.

• Superior Visibility: The high-resolution widescreen provides more "real estate" for data charts and complex system diagrams.

• Multi-Touch Interface: Supports gestures like swiping and pinching, which reduces training time for operators accustomed to modern mobile devices.

• Rugged Design: Built to withstand harsh industrial environments, including vibration, high temperatures, and chemical exposure on the front bezel.

• Edge Capability: Can function as an edge device, collecting data and sending it to higher-level cloud or ERP systems.

4. Key Precautions & Notes

• Power Supply: Ensure a stable 24V DC power source. Voltage fluctuations outside the ±25% range can damage the internal circuitry.

• Installation Environment: While the front panel is NEMA/IP rated, ensure the rear of the unit has adequate ventilation to prevent overheating.

• Touchscreen Care: Avoid using sharp objects (screwdrivers, pens) on the capacitive screen; use fingers or capacitive-approved styluses only.

• Backup: Regularly back up your project files and configuration settings via the USB or SD card slots to prevent data loss during hardware replacement.

5. Product Applications

The IC755CSW07CDACA-FY is versatile and used across various sectors:

• Manufacturing: Monitoring assembly lines and controlling robotic cells.

• Oil & Gas: Real-time data visualization for remote pump stations or wellheads.

• Water/Wastewater: Managing filtration systems and chemical dosing processes.

• Food & Beverage: Overseeing packaging machinery and maintaining hygiene-standard reporting.

• Building Automation: Controlling HVAC and lighting systems in large-scale industrial complexes.
