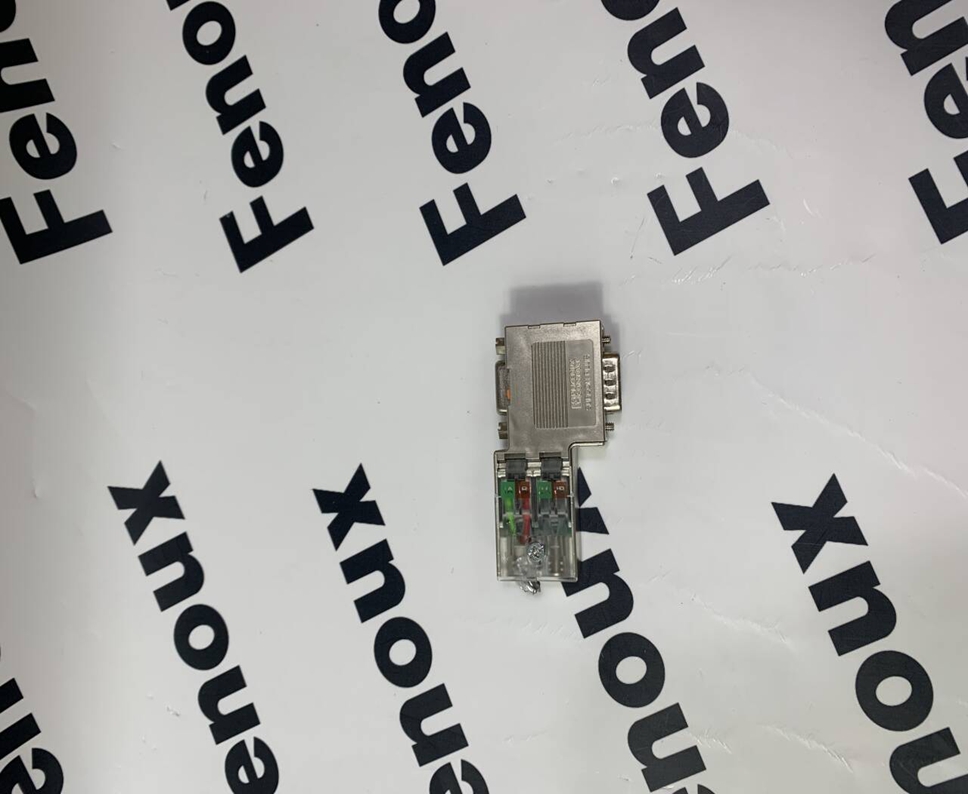

2313708 SUBCON-PLUS-PROFIB/90/PG/SC Phoenix Central control module

Product Parameters

• Article Number: 2313708

• Bus System: PROFIBUS DP

• Max. Data Rate: Up to 12 Mbps

• Connector Type: 9-position D-SUB connector, male (pin contacts)

• Cable Outlet: 90° (angled)

• Programming Port: Integrated D-SUB socket (female) for programming device

• Termination Resistor: Integrated, switchable via slide switch (390 Ω / 220 Ω / 390 Ω - internal configuration)

• Connection Method (Cable): Screw connection terminals

• Conductor Cross Section:

• Rigid: 0.14 mm² to 1.5 mm² (AWG 26 to 16)

• Flexible: 0.14 mm² to 1 mm² (AWG 26 to 18)

• Stripping Length: 5 mm

• Tightening Torque (Screw terminals): 0.4 Nm

• Tightening Torque (Housing screw): 1.2 Nm

• Nominal Voltage (UN): 5 V

• Nominal Current (IN): 100 mA

• Test Voltage: 50 V

• Housing Material: ABS, metal-plated

• Dimensions (W x H x L): 16.8 mm x 34.8 mm x 72 mm

• External Cable Diameter: 7.6 mm - 8.4 mm

• Degree of Protection: IP40

• Ambient Temperature (Operation): -20 °C to +75 °C

• Ambient Temperature (Storage/Transport): -25 °C to +80 °C

• Insertion/Withdrawal Cycles: > 200

• MTTF (Mean Time To Failure): Up to 6706 Years (at 25°C, 21% operating cycle)

• Approvals: UL Recognized, cUL Recognized, cULus Recognized, CSA, CE, RoHS, REACH SVHC compliant.

Product Advantages

• High Reliability: Designed for robust performance in industrial environments with a high MTTF and excellent vibration resistance.

• Simplified Commissioning and Troubleshooting: The integrated, switchable termination resistor and the PG D-SUB socket allow for easy segment-by-segment startup and connection of programming devices without disrupting the bus.

• Excellent EMC Protection: The metal-plated housing ensures high immunity to interference, crucial for reliable data transmission in electrically noisy environments.

• Space-Saving Design: The 90° cable outlet is ideal for installations where space is limited.

• Versatile Connection: Screw connection terminals support both solid and stranded conductors, offering flexibility in wiring.

• Globally Certified: Compliance with various international standards ensures broad applicability and acceptance.

Precautions

• Correct Cable Type: Ensure that PROFIBUS cables used are suitable for the specified conductor cross sections (0.14-1.5 mm² for solid, 0.14-1 mm² for flexible). Phoenix Contact recommends using standard PROFIBUS cables (Type A according to EN 50170).

• Proper Termination: Always ensure that the termination resistor is correctly switched ON at the physical ends of the PROFIBUS segment and OFF for intermediate nodes to prevent signal reflections and bus communication issues.

• Secure Connections: Adhere to the specified tightening torques for screw terminals (0.4 Nm) and housing screws (1.2 Nm) to ensure secure and reliable electrical contact and mechanical stability.

• Environmental Limits: Do not operate the connector outside its specified ambient temperature range (-20 °C to +75 °C). The IP40 rating means it is protected against solid objects larger than 1 mm and no liquid ingress.

• ESD Protection: Take electrostatic discharge (ESD) precautions during handling and installation, especially when connecting cables, as bus systems can be sensitive to static electricity.

Product Applications

The Phoenix Contact SUBCON-PLUS-PROFIB/90/PG/SC is widely used in various industrial sectors for PROFIBUS DP networks, including:

• Factory Automation: Connecting PLCs, HMIs, sensors, actuators, and drives in automated production lines.

• Process Industry: Integration into process control systems for data acquisition and control in chemical plants, oil & gas, water treatment, etc.

• Machine Building: Wiring and connectivity for individual machines and complex machinery systems.

• Building Automation: Integrating field devices in large-scale building management systems where PROFIBUS is utilized.

• Transportation: Applications in rail, automotive, and other transportation systems for control and monitoring.

• Logistics and Material Handling: Connecting devices in conveyor systems, automated warehouses, and material handling equipment.
