QUINT-PS-100-240AC/24DC/10 Phoenix Power Module

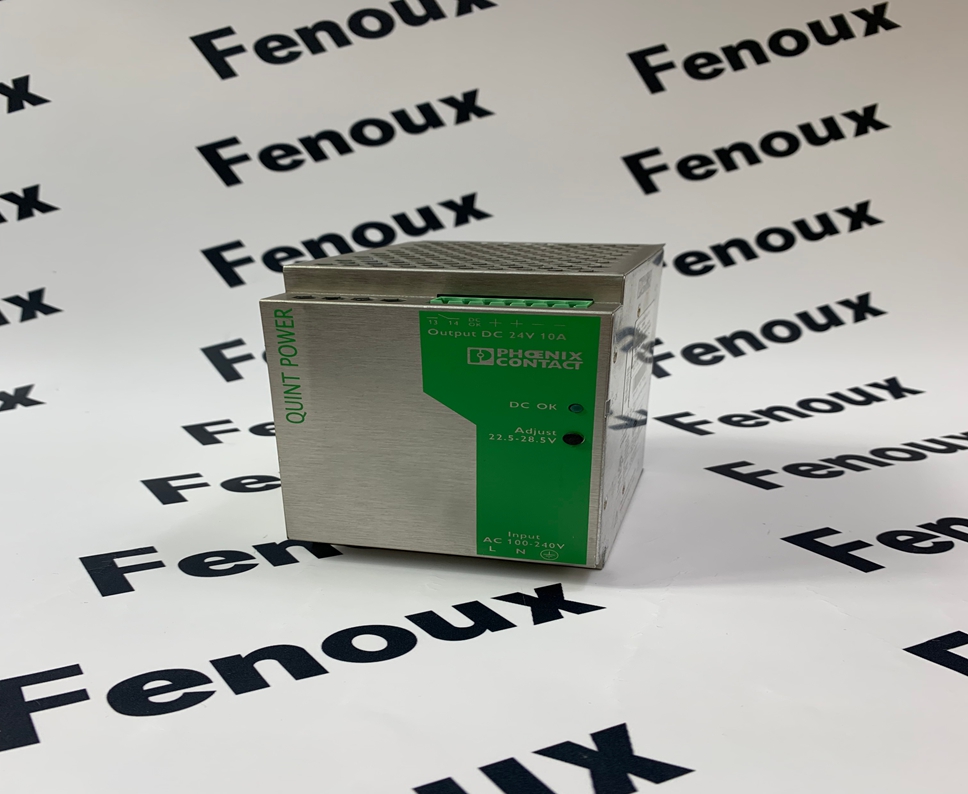

Phoenix Contact QUINT POWER Power Supply QUINT-PS-100-240AC/24DC/10 Overview

The Phoenix Contact QUINT POWER series power supplies are known for their high reliability, powerful functionality, and compact design. The model QUINT-PS-100-240AC/24DC/10 is a single-phase input, 24 V DC output power supply capable of delivering an output current of 10 A. It is suitable for a wide range of industrial applications, providing a reliable power source for automation systems.

Product Detailed Description

• Function:

• Converts single-phase AC input voltage to a stable 24 V DC output voltage.

• Provides an output current of up to 10 A.

• Features Power Boost functionality, providing a short-term power reserve of up to 1.5 times the nominal current for starting heavy loads.

• Incorporates SFB (Selective Fuse Breaking) technology, which quickly and reliably trips standard circuit breakers in the event of a short circuit, thus only deactivating the faulty circuit part and ensuring the continued operation of the rest of the system.

• Offers preventive function monitoring, which issues warning signals before a fault occurs.

• Features remote monitoring and control capabilities.

• Features:

• Compact metal housing design, saving installation space.

• High efficiency, reducing energy loss and heat generation.

• Wide input voltage range, suitable for different power grids worldwide.

• High reliability with a long Mean Time Between Failures (MTBF).

• Reliable starting of heavy loads.

• Easy to install and maintain.

• Provides LED indicators for displaying operating status.

Product Parameters

• Input Voltage Range:

• 85 V AC to 264 V AC (single-phase)

• Output Voltage:

• 24 V DC (±1%)

• Output Current:

• 10 A

• Power Boost:

• 12.5 A (for 5 s)

• 15 A (for 1 s)

• SFB (Selective Fuse Breaking):

• 60 A (for 15 ms)

• Efficiency:

• Typ. 93%

• Power Loss:

• < 0.7 W at no load

• < 18 W at nominal load

• MTBF (Mean Time Between Failures):

• 900,000 h (according to IEC 61709, SN 29500)

• Connection Method:

• Screw connection

• Degree of Protection:

• IP20

• Operating Temperature Range:

• -25 °C to +70 °C (depending on installation position and derating curve)

• Dimensions (W x H x D):

• 40 mm x 130 mm x 125 mm

• Weight:

• 0.6 kg

• Approvals:

• CE, UL, cULus, EAC, CB, etc. (refer to the specific product manual)

Product Advantages

• High Reliability:

• Long MTBF and robust design ensure stable system operation.

• Powerful Power Boost:

• Reliable starting of loads with high inrush currents.

• Innovative SFB Technology:

• Ensures selective tripping of faulty circuits, increasing system availability.

• Preventive Function Monitoring:

• Early warning of potential faults allows for timely maintenance.

• High Efficiency:

• Reduces energy loss, minimizes heat generation, and improves economy.

• Compact Design:

• Saves installation space in control cabinets.

• Global Applicability:

• Wide input voltage range allows for use with different power grids.

Precautions

• Correct Installation:

• Follow Phoenix Contact's installation guidelines, ensuring the power supply is installed in a well-ventilated area with suitable ambient temperature.

• Input Voltage:

• Verify that the input voltage matches the power supply's rated input voltage range.

• Output Load:

• Do not exceed the power supply's maximum output current and power.

• Overload Protection:

• Although the power supply has overload protection, prolonged operation under overload conditions will affect its lifespan.

• Grounding:

• Ensure that the power supply's grounding terminal is reliably grounded.

• Maintenance:

• Regularly check the power supply's connections and operating status, and clean it if necessary.

• Derating:

• When used in high-temperature environments, the output current may need to be reduced according to the derating curve.

Product Applications

• Industrial Automation:

• Powering control system components such as PLCs, sensors, and actuators.

• Mechanical Engineering:

• Providing power for machine tools, robots, and other equipment.

• Building Automation:

• Supplying power for lighting, HVAC, and other systems.

• Process Control:

• Powering various process control instruments and devices.

• Marine Applications:

• Supplying power for automation and control systems on ships.
