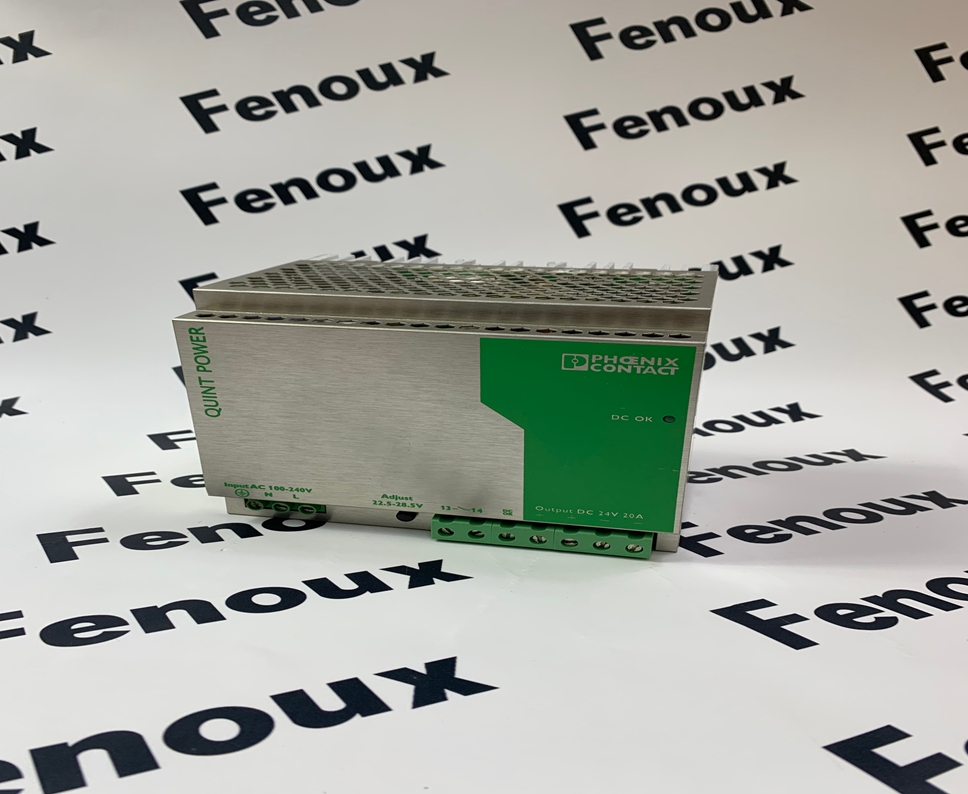

QUINT-PS-100-240AC/24DC/20A Phoenix Power Module

Phoenix Contact QUINT-PS-100-240AC/24DC/20A Overview

The Phoenix Contact QUINT-PS-100-240AC/24DC/20A is a high-performance single-phase power supply belonging to the QUINT POWER series. It provides a reliable 24 V DC output with a current of up to 20 A, suitable for a wide range of industrial applications, especially where high reliability and intelligent functions are required.

Product Detailed Description

• Function:

• Converts single-phase AC input voltage into a stable 24 V DC output voltage.

• Provides an output current of up to 20 A.

• Features SFB (Selective Fuse Breaking) technology for fast and reliable tripping of standard circuit breakers in the event of a short circuit.

• Offers a Power Boost function that provides up to 1.5 times the nominal current for a short duration to start heavy loads.

• Features preventive function monitoring, providing early warning of the output voltage and current status via a DC OK relay contact and LED indicators.

• Reliable starting of heavy loads with high power reserves.

• Wide temperature range design suitable for various environmental conditions.

• Features:

• Single-phase input.

• DIN rail mounting.

• Adjustable output voltage.

• Parallel operation capability for increased output power or redundancy.

• Remote monitoring and diagnostics.

• High efficiency for reduced energy loss.

Product Parameters

• Input Voltage Range:

• 85 V AC to 264 V AC

• Input Frequency Range:

• 45 Hz to 65 Hz

• Output Voltage:

• 24 V DC (adjustable range 22.5 V DC to 29.5 V DC)

• Output Current:

• 20 A (at +60 °C ambient temperature)

• Power Boost:

• 30 A for 5 s

• SFB (Selective Fuse Breaking):

• 60 A for 15 ms

• Efficiency:

• Typ. 93% (at 230 V AC input and nominal load)

• Output Power:

• 480 W

• DC OK Relay Contact:

• 24 V DC / 1 A

• Degree of Protection:

• IP20

• Ambient Temperature Range:

• -25 °C to +70 °C (derating from +60 °C)

• Connection Method:

• Screw connection

• Dimensions (W x H x D):

• 70 mm x 130 mm x 125 mm

• Weight:

• 1.1 kg

• Certifications:

• UL, cUL, EAC, CE, etc. (refer to the specific product manual)

Product Advantages

• High Reliability:

• Robust design and high-quality components ensure long service life and reliable operation.

• Intelligent Functions:

• SFB technology for fast and reliable tripping of fuses.

• Power Boost function for easy starting of heavy loads.

• Preventive function monitoring for early fault detection.

• High Efficiency:

• Typical efficiency of 93% reduces energy loss and heat generation.

• Flexibility:

• Adjustable output voltage and parallel operation capability meet different application requirements.

• Wide input voltage range suitable for various power systems worldwide.

• Easy Installation and Maintenance:

• DIN rail mounting and clear terminal blocks facilitate installation.

• Remote monitoring simplifies maintenance.

Precautions

• Correct Installation:

• Follow Phoenix Contact's installation guidelines, ensuring the power supply is installed in a well-ventilated area with suitable ambient temperature.

• Power Requirements:

• Ensure the input voltage is within the permissible range.

• Environmental Conditions:

• Avoid using the power supply in environments exceeding its operating temperature range.

• Pay attention to the power supply's degree of protection and prevent ingress of liquids and dust.

• Overload Protection:

• Although the power supply has overload protection, prolonged operation under overload conditions should be avoided.

• Grounding:

• Ensure proper grounding of the power supply.

• Parameter Settings:

• Adjust output voltage and other parameters according to the actual application requirements.

Product Applications

• Industrial Automation:

• Powering PLCs, sensors, actuators, and other control equipment.

• Mechanical Engineering:

• Powering machine tools, robots, and other industrial machinery.

• Process Control:

• Powering control equipment in process automation systems.

• Building Automation:

• Powering lighting, HVAC, and other building control systems.

• Marine Applications:

• Suitable for ships and other marine environments.

• Renewable Energy:

• Used to power control and monitoring equipment.
