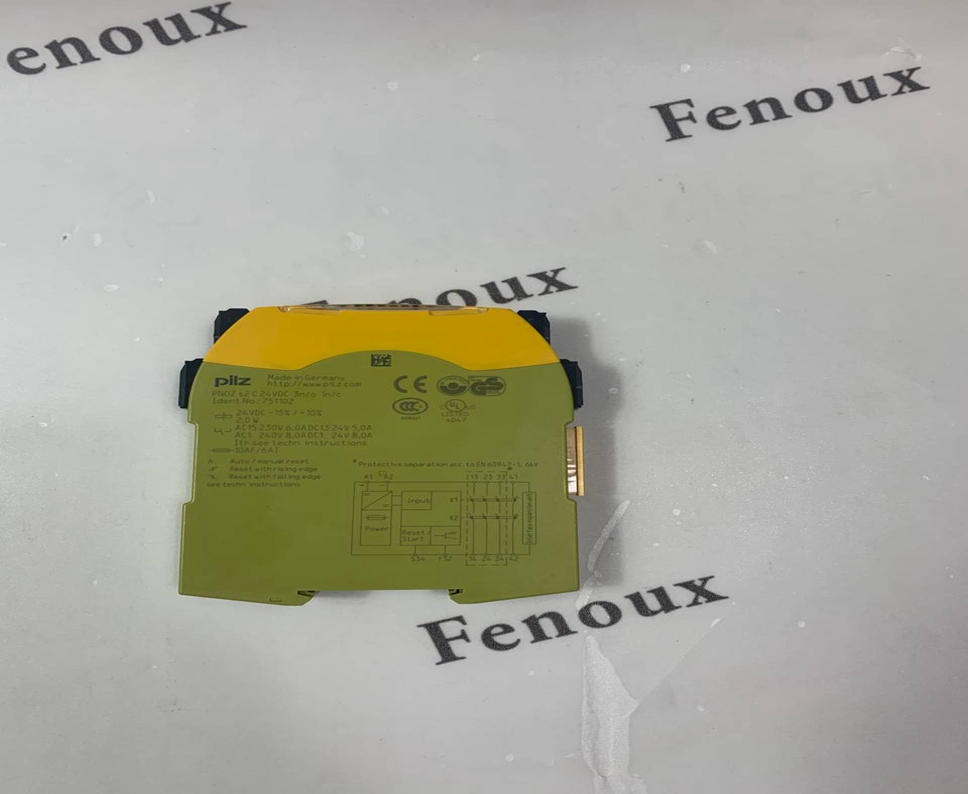

PILZ 774548 Programmable controller

PILZ 774548 Overview

The PILZ 774548 belongs to the PILZ PNOZ XV3 series of safety relays. This series of safety relays is designed to monitor safety functions such as emergency stops, safety gates, and light curtains. It provides reliable safety solutions to protect personnel and machinery.

Product Detailed Description

• Function:

• Monitors safety circuits and disconnects power in the event of a hazardous situation.

• Provides time-delayed outputs for applications requiring delayed shutdowns.

• Single or dual channel wiring.

• Features:

• Complies with international safety standards such as EN ISO 13849 and IEC 61508.

• Modular design for easy installation and maintenance.

• Reliable relay outputs for safe disconnection.

Product Parameters

• Model:

• PNOZ XV3 300/24VDC 3n/o 2n/o t

• Input Voltage:

• 24V DC

• Safety Outputs:

• 3 instantaneous normally open contacts (3NO)

• 2 time-delayed normally open contacts (2NO)

• Time Delay:

• 0-300s selectable

• Installation:

• DIN rail mounting

• Please refer to the official PILZ product manual for specific parameters.

Product Advantages

• High Safety:

• Complies with stringent safety standards, ensuring reliable safety functions.

• Reliability:

• High-quality components and manufacturing processes ensure long-term stable operation.

• Ease of Use:

• Clear wiring diagrams and indicator lights for easy installation and commissioning.

• Versatility:

• Time delayed contacts provide many different safety operations.

Precautions

• Correct Installation:

• Install and wire according to the requirements of the product manual.

• Safe Operation:

• Follow safety regulations during operation and maintenance.

• Regular Inspection:

• Regularly check the relay's operating status to ensure it is working properly.

• Environmental Conditions:

• Pay attention to the temperature, humidity, and other conditions of the working environment.

Product Applications

• Machine Safety:

• Emergency stop circuits, safety gate monitoring, light curtain monitoring.

• Automated Production Lines:

• Robot safety, conveyor safety.

• Presses:

• Press safety control.

• General Safety Applications:

• Any application requiring reliable safety disconnection.
