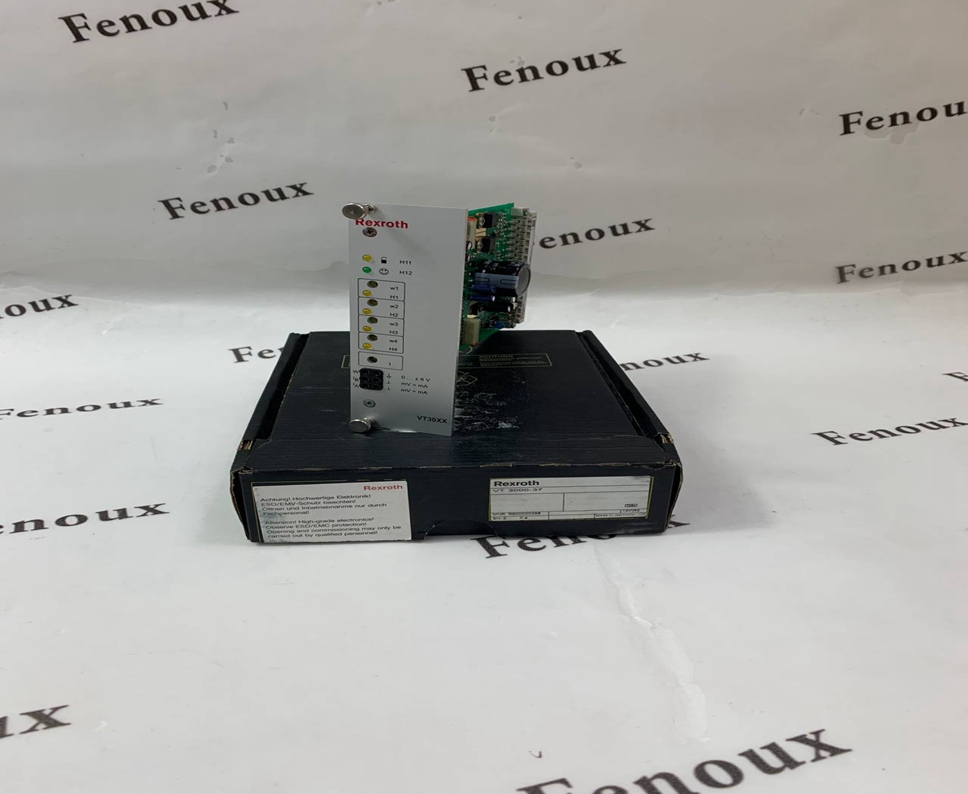

– Suitable for the control of pilot operated proportional directional valves (type .WRZ, up to component series 6X) and
direct operated proportional pressure valves (type DBEP6
and 3DREP6, each component series 1X) without electrical
position feedback
– Four command values adjustable with potentiometers
– Four command value call-ups with LED display
– Differential input
– Step function generator
– Ramp generator
– Two pulsed current output stages
– Polarity protection for the voltage supply
Description:
Which command value is momentarily called up is indicated
by the LEDs „H1“ to „H4“. If more than one command value
is called up simultaneously the input with the highest number has priority. Example: If command value 1 and command
value 3 are activated simultaneously the command value 3
becomes effective.
A further output of the card provides a supply voltage for the
command value call-ups which can be switched over from
+9 V to –9 V with the relay K6 1).
All relays on the card are switched with 24 VDC (smoothed).
Additionally, the direct command value input 5 is available for
the input voltage 0 to ±6 V. Valid is ±6 V ± 100 % 1).
The command value input 6 is a differential input (0 to ±10 V).
If the command value is presented by a separate electronics
with a different reference potential this input must be used.
When switching on or off the command value it must be taken
care that both signal lines are either separated from or connected to the input.
All command values are summated with the correct value and
sign before they are connected further [3].
The added ramp generator [4] produces a ramp-like output
signal from the jump-like given input signal. The time constant
can be set with the potentiometers „t1“ to „t5“. The ramp time
given refers to a command value jump of 100 % and can be,
according to the setting through the selection via jumpers (J5,
J6), approximately 1 s or 5 s. If a command value jump smaller than 100 % is switched to the input of the ramp generator
the ramp time shortens appropriately.
