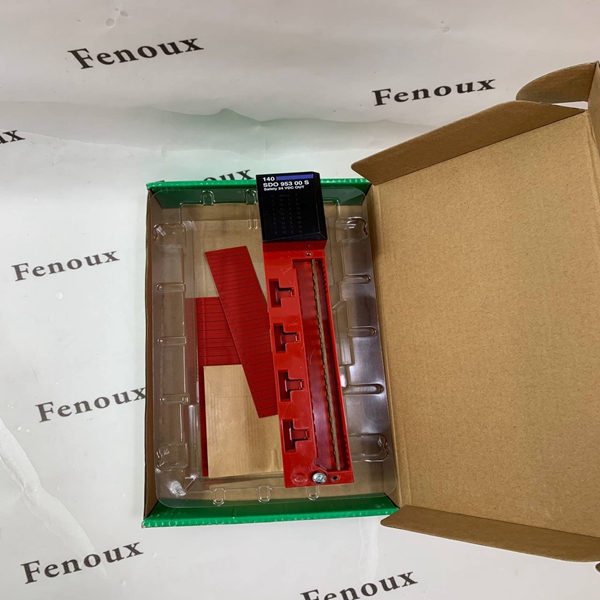

Range of product Modicon Quantum automation platform
Product or component type Safety dc discrete output module
Complementary
Discrete output number 16
Group of channels 1
Discrete output logic Positive logic (source)
Addressing requirement 4 output words
7 input words
Discrete output voltage 19.2...30 V DC
Absolute maximum output 34 V
Maximum voltage drop <0.3 V 0.5 A
Sensor power supply 19.2…30 V
Maximum load current <= 0.65 A each point
<= 10.04 A each group
Surge current 2 A for 10 ms
Response time <= 20 ms at state 0 to state 1
<= 20 ms at state 1 to state 0
Maximum leakage current 0.5 mA 30 V
Protection type With
Load inductance Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz)))
0.5 8 Hz
Fault indication Channel fault
Overload
Power supply fault
System fault
Associated fuse rating 10 A
Isolation between channels and
bus
1500 Vrms for 1 minute
Isolation between group and
bus
1500 Vrms for 1 minute
Power dissipation 1.9 W + 0.65 I²
