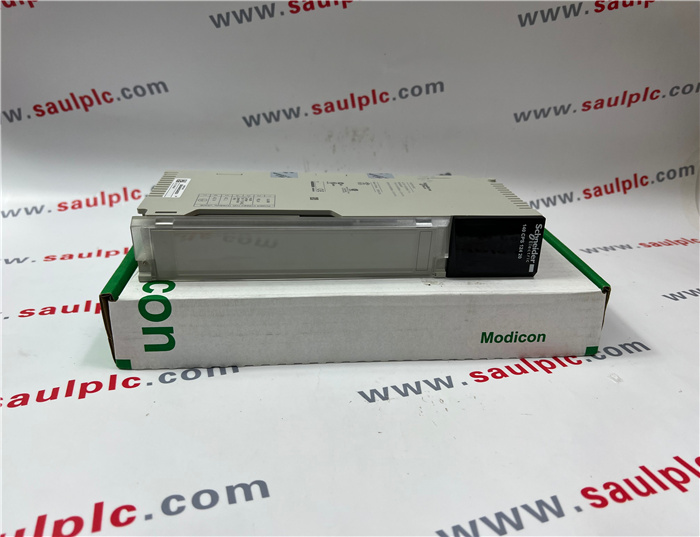

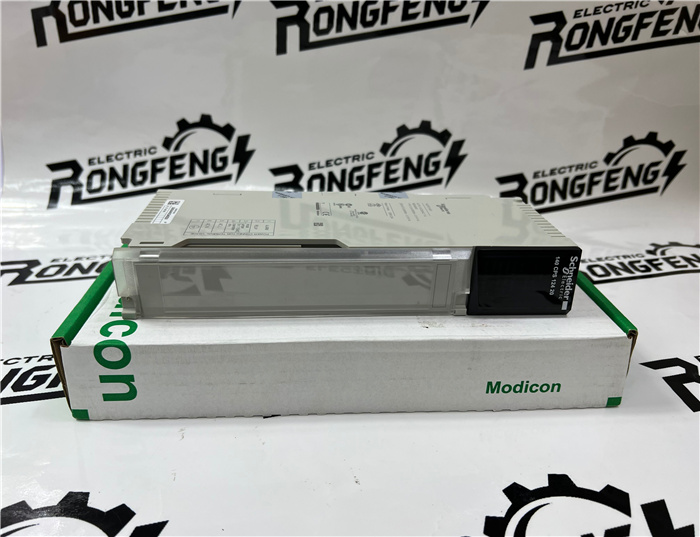

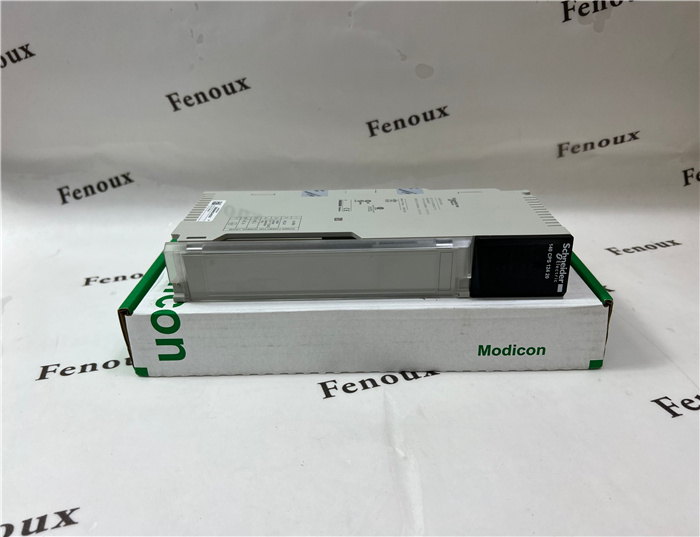

140CPS12420 Schneider power supply module Modicon Quantum

INQUIRE NOW

Products Name: 140CPS12420 Schneider power supply module Modicon Quantum

PRODUCT DESCRIPTION

Brand:Schneider

Model number:140CPS12420  Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: France

Price: Please contact us

Product weight:0.5kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

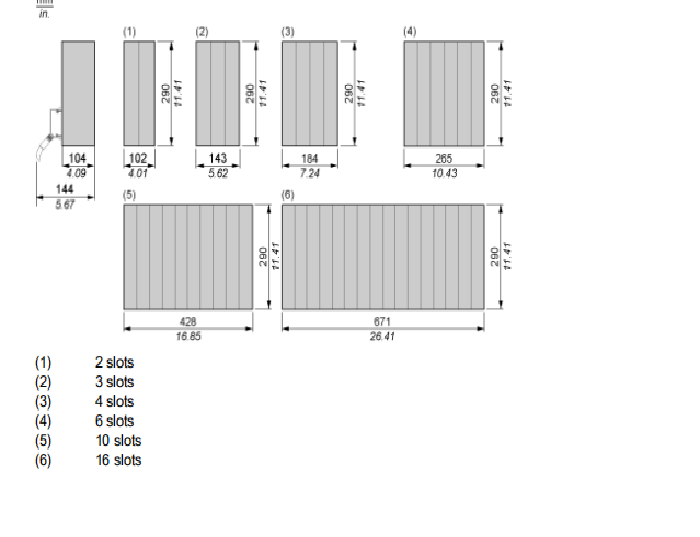

Product Dimensions:

Main

Range of product Modicon Quantum automation platform

Product or component type Power supply module

Power supply type Redundant

Complementary

Input voltage 115 V (93...138 V) AC 47…63 Hz

230 V (170...276 V) AC

Input current 1100 mA at 115 V

600 mA at 230 V

Inrush current 19 A 230 V

38 A 115 V

Rated power in VA 130 VA

Associated fuse rating 2 A, slow-blow

Harmonic distortion <= 10 % of fundamental rms value

Output voltage 5.1 V DC

Power supply output current 11 A 60 °C standalone

10 A 60 °C redundant

Output overvoltage protection Internal

Output overload protection Internal

Power dissipation 6 + (1.5 x Iout) where Iout is in A

Alarm output 1 NC 6 A 220 V power supply fault

Local signalling 1 LED (green) for power (PWR OK)

Marking CE

Module format Standard

Net weight 0.65 kg

Environment

Standards UL 508

CSA C22.2 No 142

Product certifications CUL

Resistance to electrostatic discharge 4 kV contact conforming to IEC 801-2

8 kV on air conforming to IEC 801-2

Aug 16, 2021

1

Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications

Resistance to electromagnetic fields 10 V/m 80…2000 MHz conforming to IEC 801-3

Ambient air temperature for operation 0…60 °C

Ambient air temperature for storage -40…85 °C

Relative humidity 95 % without condensation

Operating altitude <= 5000 m

Packing Units

Unit Type of Package 1 PCE

Number of Units in Package 1 1

Package 1 Weight 753 g

Package 1 Height 5.1 cm

Package 1 width 17.2 cm

Package 1 Length 31.8 cm

Unit Type of Package 2 S03

Number of Units in Package 2 7

Package 2 Weight 5.961 kg

Package 2 Height 30 cm

Package 2 width 30 cm

Package 2 Length 40 cm

Offer Sustainability

EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)

EU RoHS Declaration

Mercury free Yes

RoHS exemption information Yes

China RoHS Regulation China RoHS declaration

Environmental Disclosure Product Environmental Profile

Circularity Profile End of Life Information

WEEE The product must be disposed on European Union markets following specific waste collection and

never end up in rubbish bins

California proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which

is known to the State of California to cause cancer and birth defects or other reproductive harm. For

more information go to www.P65Warnings.ca.gov
