When setting the relay characteristic/torque angle for the three phase directional overcurrent element, a positive angle setting was specified. This was due to the fact that we consider as polarising voltage, the phase voltage value in quadrature of the current under fault conditions. With directional earth fault protection, the residual current under fault conditions lies at an angle lagging the polarising residual earth fault voltage.

Description:

At current values greater than Ic, the SCPD reacts quicker than the overload

relay. At current values less than Ic, the overload relay reacts quicker. Articles

110 and 430 of the NEC provide guidance in the selection of the SCPD to

facilitate coordination of the components of a motor branch circuit (i.e.

location of point Ic).

Withstand Ratings

Equipment withstand ratings are linked to branch circuit protection. The

same parameters that affect the trip point of a given protective device also

contribute to how much (or how little) let-through energy the device may be

exposed to and still function after the clearing of the fault. Withstand does not

explicitly show up in Figures 1 or 2. Traditional melting alloy and bi-metal

overload relays have been the “weak link” in motor branch circuit withstand

ratings. Since these devices employ sensing elements directly in the current

path, electrical faults leading to mechanical stresses are a concern. These

devices typically contain small mechanical parts than can quickly become

out-of-spec when exposed to let-through energy exceeding their withstand

capability. If the coordinated protection for the circuit operates properly (and

the SCPD protects the circuit), the motor and the controller will be protected.

The withstand rating of a branch circuit must account for the withstandability

of the lowest rated component in the circuit.

Thermal Overload Relay

In spite of being relatively simple and inexpensive, thermal overload relays

are very effective in providing motor running overcurrent protection. This is

possible because the most vulnerable part of most motors is the winding

insulation and this insulation is very susceptible to damage by excessively

high temperature.

Being a thermal model of a motor, the thermal overload relay will produce a

shorter trip time at a higher current similar to the way a motor will reach its

temperature limit in a shorter time at a higher current. Similarly, in a high

ambient temperature, a thermal overload relay will trip at a lower current or

vice versa allowing the motor to be used to its maximum capacity in its

particular ambient temperature (if the motor and overload are in the same

ambient).

Once tripped, the thermal overload relay will not reset until it has cooled,

automatically allowing the motor to cool before it can be re-started.

NOTE: The overload relay must be used in conjunction with a contactor. The

overload relay has no power contacts and cannot disconnect the motor by

itself. The control circuit contact must be wired in series with the coil of the

contactor so that the contactor will de-energize when an overload occurs.

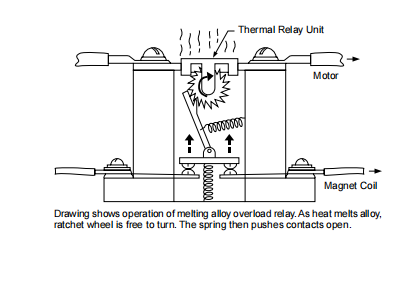

Square D manufactures three types of overload relays, the melting alloy, the

bimetallic, and solid state. In some types, the bimetallic is available in both

non-compensated and ambient temperature-compensated versions. In both

melting alloy and bimetallic, single element and three element overloads are

available. Solid state overloads are discussed on Page 5.
