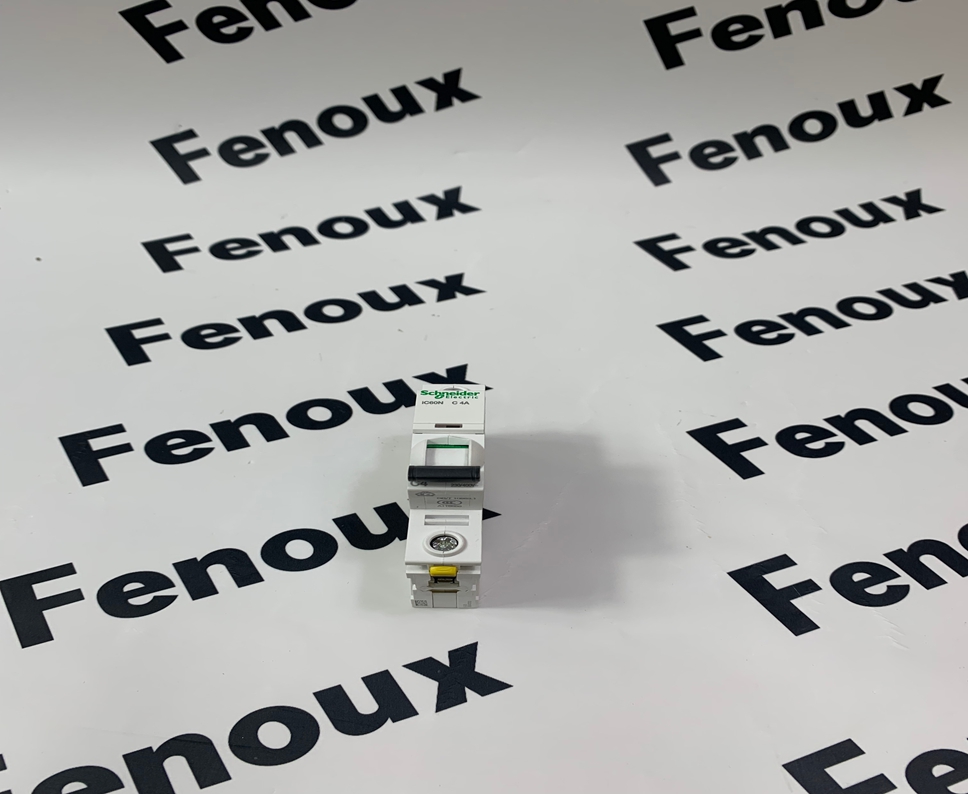

Schneider A9F04104 Miniature Circuit Breaker (MCB)

The Schneider A9F04104 is a Miniature Circuit Breaker (MCB) from the Acti9 iC60N series. It's designed for electrical circuit protection in both residential and industrial applications.

Here's a detailed product description:

Product Type: Miniature Circuit Breaker (MCB)

Series: Acti9 iC60N

Key Features and Specifications:

• Poles: 1 (single pole)

• Rated Current (In): 4 A

• Tripping Curve: C-curve. This means it trips when the current reaches 5 to 10 times the rated current. C-curve MCBs are suitable for general applications and protection of circuits with resistive and inductive loads.

• Rated Voltage (Ue): 230 V AC (also compatible with 72V DC).

• Rated Insulation Voltage (Ui): 500 V AC.

• Rated Impulse Withstand Voltage (Uimp): 6 kV.

• Breaking Capacity:

• 6000 A (6 kA) at 230 V AC conforming to EN/IEC 60898-1 (residential standard).

• 50 kA at 220-240 V AC conforming to EN/IEC 60947-2 (industrial standard).

• Also has breaking capacities for lower AC voltages and DC (e.g., 10 kA at <= 72 V DC, 15 kA at 12-60 V DC).

• Limitation Class: 3 (according to EN/IEC 60898-1), which helps improve downstream circuit protection costs.

• Mounting: DIN rail mountable. It has a width of 1 standard 9mm pitch.

• Connections: Double terminals (top or bottom) for both rigid (1 to 25 mm²) and flexible (1 to 16 mm²) wires.

• Wire Stripping Length: 14 mm.

• Tightening Torque: 2 N.m.

• Durability:

• Electrical Endurance: 10,000 cycles

• Mechanical Endurance: 20,000 cycles

• Indicators:

• VisiTrip: A unique red/white indicator that visually shows a tripped circuit, reducing intervention time.

• VisiSafe: A green strip that guarantees the physical opening of the contacts, ensuring safety for downstream maintenance.

• Pollution Degree: 3

• Overvoltage Category: IV

• Degree of Protection (IP rating): IP20 (according to IEC 60529); IP40 in an enclosure.

• Operating Temperature: -35°C to 70°C

• Storage Temperature: -40°C to 85°C

• Dimensions:

• Width: 18 mm

• Height: 91 mm

• Depth: 78.5 mm

• Weight: Approximately 0.125 kg

• Color: White (RAL9003)

• Compliance: Fully compliant with standards IEC/EN 60898-1 and IEC/EN 60947-2.

• Class-2 Insulation: Provides continuous protection for both operators and unqualified personnel.

This MCB offers robust protection against short circuits and overload currents, combined with user-friendly features for improved safety and reduced maintenance time.
