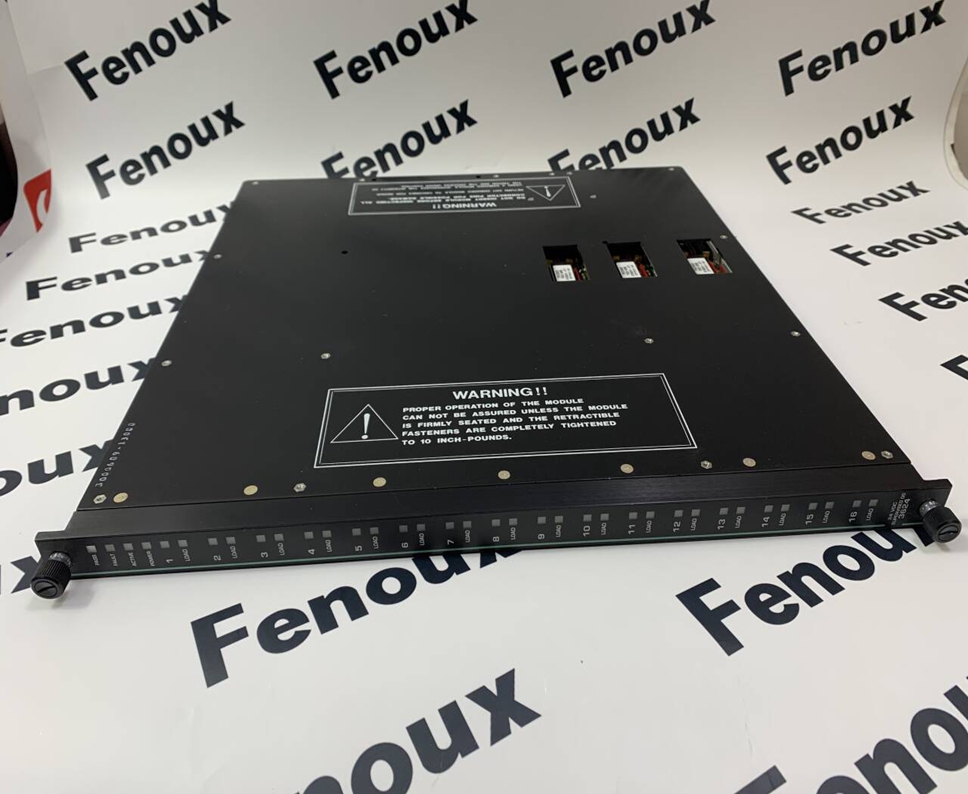

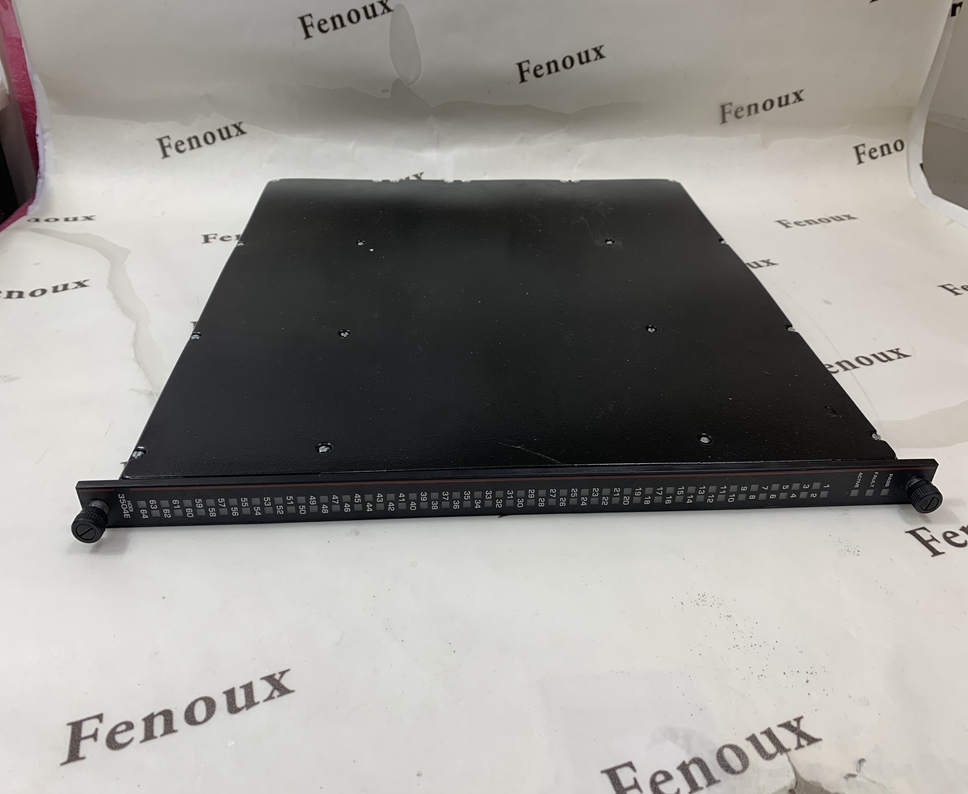

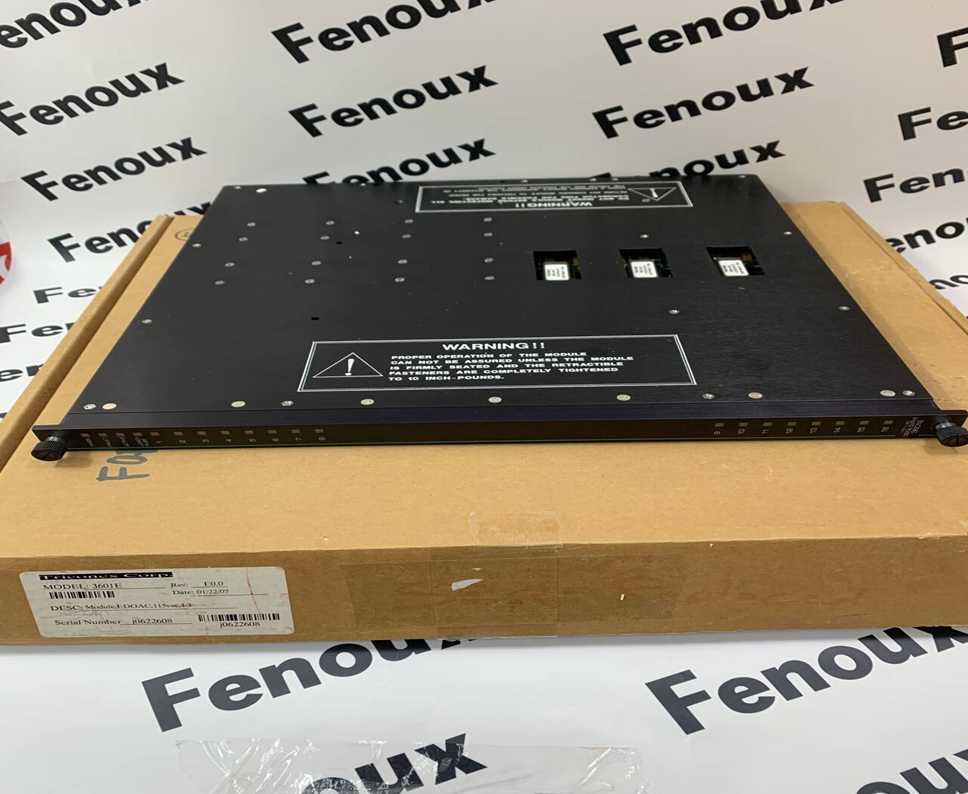

TRICONEX 3623T Digital Controller

Product Detailed Description:

Triconex I/O modules are critical components of Triconex Safety Instrumented Systems (SIS). They provide the essential interface between the Tricon controller and the process or field devices (sensors and actuators). These modules are designed to meet the stringent requirements of safety-critical applications, offering high reliability, diagnostic capabilities, and often intrinsically safe or hazardous area approvals. They come in various types to handle different signal types (analog, digital, temperature, pressure, etc.) and are engineered for demanding industrial environments.

Product Parameters (General - Vary by Module Type):

• Number of Channels: Typically 1, 2, 4, 8, or 16 channels per module.

• Signal Type: Analog (e.g., 4-20 mA, 0-10 V), Digital (e.g., Discrete I/O, Relay), Temperature (e.g., RTD, Thermocouple), Pressure, Frequency, etc.

• Input/Output Range: Specific voltage or current ranges depending on the module type (e.g., 4-20 mA, -10 to +10 V, 0-5 V).

• Accuracy: Typically specified as a percentage of full scale (e.g., ±0.1%, ±0.25%).

• Resolution: Number of bits for analog signals (e.g., 12-bit, 16-bit).

• Isolation: Channel-to-channel, channel-to-ground, and common-mode voltage isolation levels.

• Diagnostics: On-board diagnostics capabilities (e.g., range checks, open circuit detection, short circuit detection, calibration verification).

• Power Requirements: Voltage and current needed for module operation.

• Environmental Specifications: Operating temperature range, humidity tolerance, vibration and shock resistance.

• Approval Ratings: Often include certifications like ATEX, IECEx, CSA, FM for hazardous areas, and UL listing.

Product Advantages:

• High Reliability: Designed for Safety Integrity Level (SIL) 3 and sometimes SIL 4 applications, with high Mean Time Between Failures (MTBF).

• Advanced Diagnostics: Built-in self-testing and diagnostic features provide early fault detection, reducing downtime and enhancing safety.

• Redundancy & Fault Tolerance: Integrated within the Tricon architecture, supporting redundant operation and voting logic.

• Robust Construction: Built to withstand harsh industrial environments (vibration, temperature extremes, EMI/RFI).

• Wide Range of Options: Available in numerous types to interface with almost any field device.

• Hazardous Area Compliance: Many modules are available with approvals for use in explosive atmospheres.

• Standardized Interface: Easy integration into the Triconex controller platform.

• Factory Calibration & Traceability: Often supplied factory-calibrated with traceable documentation.

Precautions / Notes:

• Installation: Follow specific installation guidelines provided in the module’s manual. Pay close attention to wiring, grounding, and termination requirements.

• Power Supply: Use the correct power supply specified for the module and ensure stable operation.

• Handling: Handle modules carefully to avoid static discharge damage. Use proper ESD precautions.

• Configuration: Modules must be correctly configured in the Tricon controller’s software (Tristation 1131) to match the field device and application requirements.

• Calibration: While often factory-calibrated, field calibration or verification may be necessary depending on the application and regulations. Follow approved procedures.

• Hazardous Areas: Strictly adhere to installation and wiring practices for hazardous area classifications. Use approved barriers or wiring methods as required.

• Documentation: Always consult the specific module datasheet and user manual for detailed operational, installation, and troubleshooting information.

• Replacement: Use only genuine Triconex (Schneider Electric) replacement modules. Do not mix module revisions unless specifically permitted.

Product Applications:

Triconex I/O modules are used in a vast range of industries where safety-critical process control is essential:

• Oil & Gas: Refineries, pipelines, offshore platforms, natural gas processing.

• Chemical & Petrochemical: Plant safety systems, reactor control, storage tank level monitoring.

• Power Generation: Nuclear, fossil fuel, and renewable energy plants (e.g., turbine protection, boiler control).

• Pulp & Paper: Process control and safety systems.

• Water & Wastewater Treatment: Level control, flow monitoring, chemical feed systems.

• Mining & Metals: Conveyor control, safety interlocks, process monitoring.

• Pharmaceuticals: Batch control, safety interlocks.

• Any Industry Requiring SIS: Any facility implementing Safety Instrumented Functions (SIFs) to protect personnel, assets, and the environment.
