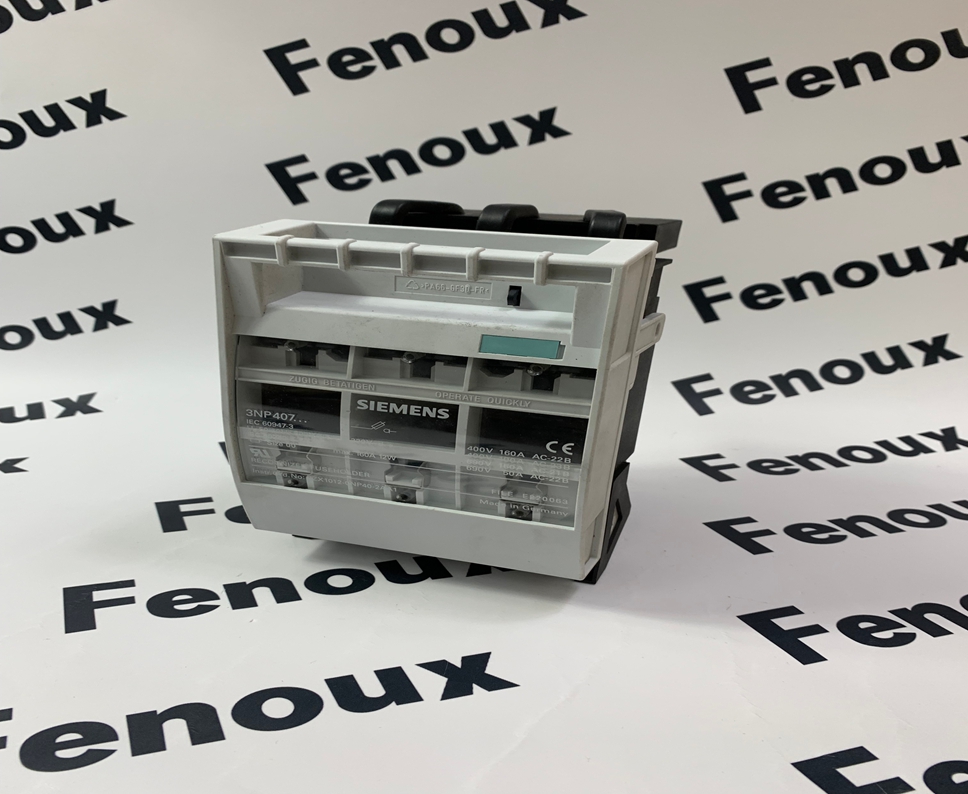

Siemens 3NP4076-1CF01 3-pole fuse disconnector

Siemens SENTRON 3NP4076-1CF01 Overview

The Siemens SENTRON 3NP4076-1CF01 is a 3-pole fuse switch disconnector, size NH1. It is used for the safe disconnection and connection of circuits and provides overcurrent protection (via fuses) for devices in low-voltage power distribution systems.

Product Detailed Description

• Function:

• Isolating Function: Provides reliable electrical isolation of circuits during maintenance or repair work, ensuring the safety of operating personnel.

• Switching Function: Enables the connection and disconnection of circuits under normal operating conditions.

• Overcurrent Protection: In conjunction with suitable NH fuses, it interrupts the circuit in the event of overload or short-circuit faults, protecting downstream equipment.

• Visible Disconnection Indication: Provides a clear visual indication of the contact position, enhancing safety.

• Features:

• 3-Pole: For three-phase AC circuits.

• Size NH1: Suitable for NH1 size fuses. NH fuses are a common low-voltage fuse standard.

• Direct Operation: The handle is directly connected to the switching contacts.

• Front-Operated: The operating handle is located on the front of the switch.

• Fixed Mounting: Secured with screws for fixed installation.

• IP20 Degree of Protection: Provides protection against the ingress of solid foreign bodies (greater than 12.5 mm).

• Complies with IEC 60947-3: Meets the international standard for low-voltage switchgear and controlgear.

Product Parameters

• Order Number: 3NP4076-1CF01

• Product Family: SENTRON 3NP

• Type: Fuse Switch Disconnector

• Number of Poles: 3

• Fuse Size: NH1

• Rated Operational Voltage Ue: AC 500 V

• Rated Current In: 160 A

• Rated Short-Time Withstand Current Icw: 25 kA (1 s)

• Rated Peak Withstand Current Ipk: 50 kA

• Rated Insulation Voltage Ui: AC 690 V

• Rated Impulse Withstand Voltage Uimp: 8 kV

• Power Loss [W]: 8 W per pole

• Mechanical Endurance: 5,000 operating cycles

• Electrical Endurance: 1,500 operating cycles

• Degree of Protection: IP20

• Mounting Type: Fixed mounting

• Connection Type: Screw connection

• Ambient Temperature: -25 °C to +55 °C

• Dimensions (W x H x D): 82 mm x 160 mm x 80 mm

• Weight: 0.7 kg

Product Advantages

• High Safety: Provides reliable isolation function and visible disconnection indication, enhancing operator safety.

• Reliable Overcurrent Protection: In conjunction with Siemens NH fuses, offers effective overload and short-circuit protection.

• Compact Design: Saves installation space.

• Easy Installation and Operation: Direct and front operation design is user-friendly.

• Compliance with International Standards: Meets IEC 60947-3, ensuring product quality and safety.

• Suitable for Industrial Applications: Robust design and reliable performance make it suitable for various industrial environments.

Precautions

• Correct Fuse Selection: The appropriate NH1 fuses must be selected based on the circuit's rated current and expected fault current to ensure effective overcurrent protection.

• Install According to Installation Instructions: Install strictly according to Siemens' installation manual to ensure correct and reliable electrical connections.

• Observe Safety Operating Procedures: Always observe relevant electrical safety regulations during operation and maintenance.

• Regular Inspection: Regularly inspect the switch and fuses for signs of damage or aging.

• Avoid Use Beyond Rated Values: Do not use the switch under conditions exceeding its rated operational voltage, current, and short-circuit capacity.

• IP20 Protection Limitations: The IP20 degree of protection only provides protection against larger solid foreign bodies contacting live parts and is not waterproof or dustproof. It needs to be used within a suitable control cabinet or enclosure.

Product Applications

The Siemens SENTRON 3NP4076-1CF01 fuse switch disconnector is widely used in the following areas:

• Low-Voltage Distribution Systems: As main switches or branch switches for isolating and protecting circuits.

• Industrial Control Cabinets: For power isolation and protection of motor starters, frequency converters, and other control equipment.

• Mechanical Engineering: For electrical safety and protection of machines and equipment.

• Commercial Buildings: For power distribution and protection of lighting, HVAC, and other electrical systems.

• Energy Systems: For electrical protection in renewable energy and traditional energy systems.
