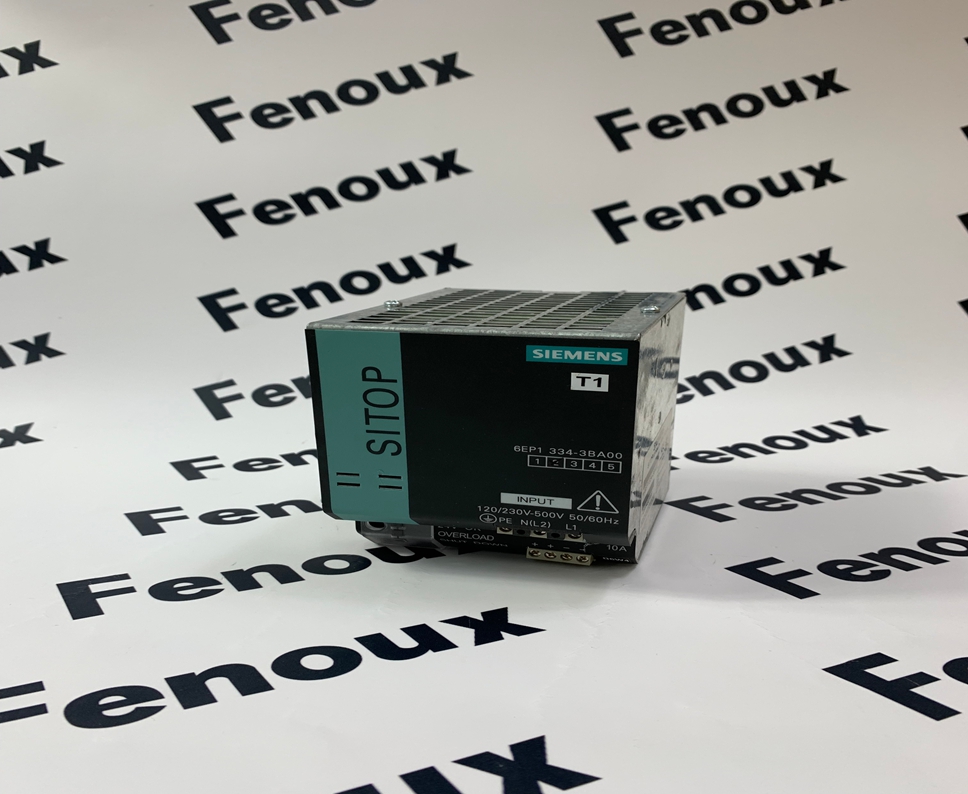

Siemens 6EP1334-3BA00 Power Module

Siemens SITOP PSU100M 24 V/10 A Overview

The Siemens SITOP PSU100M 6EP1334-3BA00 is a compact, single-phase power supply that converts 120/230 V AC mains voltage into a stable 24 V DC output voltage with a current of 10 A. It is part of the SITOP PSU100M series, known for its powerful performance, compact design, and reliability.

Product Detailed Description

• Function:

• Converts single-phase AC input voltage into a stable 24 V DC output voltage.

• Supplies power to loads in various automation and industrial control applications.

• Features a power boost function that provides up to 1.5 times the rated current for a short duration to handle loads with high inrush currents.

• Integrated overload and short-circuit protection to ensure the safety of the power supply and connected loads.

• Equipped with a "DC OK" relay contact for remote monitoring of the output voltage status.

• Features:

• Compact design saves space in control cabinets.

• Wide input voltage range for global use with different power systems.

• High efficiency reduces energy loss and heat generation.

• High reliability and long service life.

• Easy parallel operation for increased output power or redundant power supply.

• Reliable screw terminal connections.

• LED indicator for displaying the operating status.

Product Parameters

• Input:

• 1.7 A (120 V AC)

• 1.0 A (230 V AC)

• Rated Input Voltage: 120/230 V AC

• Input Voltage Range: 85 to 264 V AC

• Input Frequency Range: 47 to 63 Hz

• Input Current:

• Inrush Current: Typ. 35 A (230 V AC)

• Output:

• Rated Output Voltage: 24 V DC

• Output Voltage Range: 22.8 to 25.2 V DC (adjustable)

• Rated Output Current: 10 A

• Power Boost: 15 A for 5 s/min

• Output Power: 240 W

• Residual Ripple: Typ. 50 mVpp

• Efficiency:

• Typ. 91% (230 V AC)

• Protection:

• Input Side: Fuse

• Output Side: Overload protection (constant current characteristic), short-circuit protection (automatic restart)

• Signaling:

• DC OK Relay Contact: Normally open contact, 24 V DC / 0.1 A

• Connection:

• Screw terminals

• Degree of Protection:

• IP20

• Ambient Temperature:

• Operating Temperature: -25 °C to +70 °C (derating above +60 °C)

• Storage Temperature: -40 °C to +85 °C

• Dimensions (W x H x D):

• 70 mm x 125 mm x 129 mm

• Weight:

• Approx. 0.7 kg

• Certifications:

• CE, cULus, EAC, RCM, SEMI F47 (200 V AC)

Product Advantages

• Compact Design:

• Saves installation space in control cabinets.

• High Reliability:

• Robust and durable, ensuring stable system operation.

• Power Reserve:

• Power boost function handles short-term high current demands.

• Global Use:

• Wide input voltage range for use with different power systems worldwide.

• High Efficiency:

• Reduces energy loss and heat generation, improving system efficiency.

• Easy to Use:

• Simple installation and wiring.

• Status Monitoring:

• DC OK relay contact facilitates remote monitoring of the output status.

• Parallel Operation:

• Can be connected in parallel to increase output power or achieve redundancy.

Precautions

• Correct Installation:

• Follow Siemens' installation guidelines, ensuring the power supply is correctly mounted and secured.

• Power Connection:

• Ensure the input voltage is within the permissible range and connect the input and output terminals correctly. Always ensure a reliable ground connection.

• Environmental Conditions:

• Ensure the operating environment temperature is within the permissible range and provide adequate ventilation for heat dissipation. Avoid use in high humidity or dusty environments.

• Overload Protection:

• Although the power supply has overload protection, avoid prolonged operation beyond the rated current.

• Maintenance:

• Regularly check the power supply's connections and operating status, ensuring no loose connections or abnormalities.

• Safe Operation:

• Always observe electrical safety regulations during installation and maintenance.

Product Applications

The Siemens SITOP PSU100M 24 V/10 A (6EP1334-3BA00) power supply is widely used in various industrial and automation sectors, including:

• Automation Systems:

• Powering control system components such as PLCs, HMIs, sensors, and actuators.

• Mechanical Engineering:

• Supplying power to various industrial machinery and equipment.

• Process Control:

• Powering measurement and control devices in process automation systems.

• Building Automation:

• Supplying power to building control components such as lighting, HVAC, and security systems.

• Other Industrial Applications:

• Various applications requiring a stable and reliable 24 V DC power supply.
