Brand： ABB

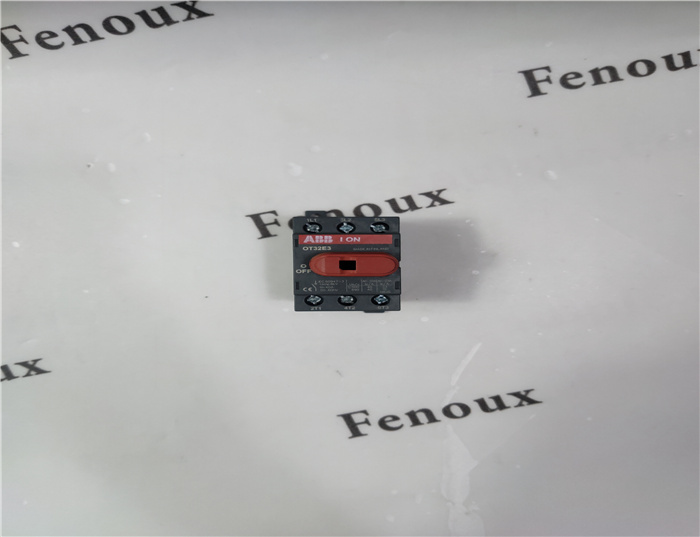

Model number：0T32E3
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.12kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
General I nformation

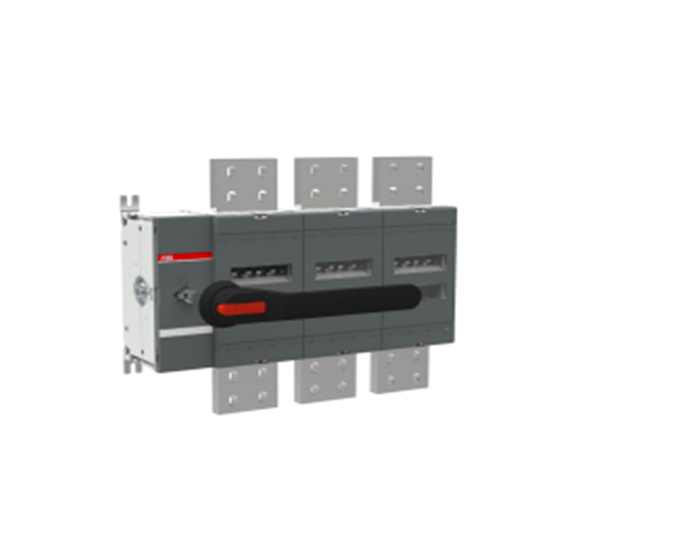

Extended Product Type OT3200E03P Product I D 1 SCA1 28481 R1 001 EAN 641 701 9582672 Catalog Description OT3200E03P SWI TCH-DI SCONNECTOR Long Description 3-pole, front operated, base mounted switch-diconnector with black I P65 handle and shaft, terminal bolt kit included
Circular Value
Conflict Minerals 9AKK1 08467A5658 Reporting Template (CMRT) Environmental I nformation 1 SCC301 269D0201 REACH Declaration 1 SCC01 1 021 D0201 RoHS I nformation 1 SCC01 1 020D0201
Ordering
Minimum Order Quantity 1 piece Customs Tariff Number 85365080 Country of Origin Finland (FI )
Popular Downloads
Data Sheet, Technical 1 SCC301 020C0201 I nformation I nstructions and Manuals 1 SCC301 082M0206
Dimensions
Product Net Width 51 4 mm Product Net Height 41 0 mm Product Net Depth / 1 46 mm Length Product Net Weight 32.6 kg
Technical
Rated Operational Current (380 ... 41 5 V) 3200 A AC-21 B (I e) Rated Operational Current (380 ... 41 5 V) 3200 A AC-22B (I e) Conventional Free-air Θ = 40 °C 3200 A Thermal Current (I th) Rated I mpulse Withstand 8 kV Voltage (Uimp) Rated I nsulation Voltage acc. to I EC/EN 60664-1 1 000 V (Ui ) Rated Operational Voltage Main Circuit 1 000 V Rated Short-Circuit (690 V) 1 76 kA Making Capacity (I cm) Rated Short-time for 1 s 65 kA Withstand Current Low Voltage (I cw) Power Loss at Rated Operating Conditions per Pole 95 W Pollution Degree 3 Handle Color Black Handle Type Handle and shaft included Mechanism at the End of the Switch 03 (Left Side) Switches Operating Mechanism Distance Between Phases Standard Top I n - Bottom Out Bottom I n - Top Out Position of Line Terminals Operating Mode Front operated Standards I EC 60947-3 Special Functions No Mounting Type Base mounting Number of Poles 3 Degree of Protection Front I P00 Terminal Type Lug terminals Tightening Torque acc. I EC 60947-1 50 … 75 N·m Mechanical Durability 5000 Lock Type Yes
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
