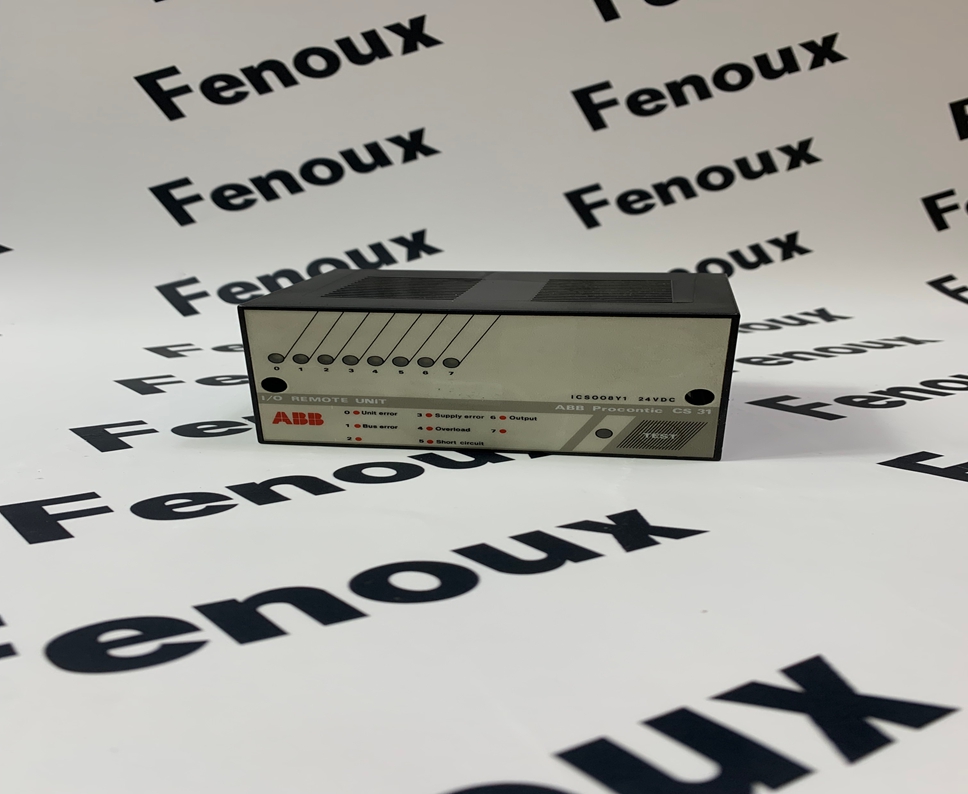

ABB ICSO08Y1 Digital Output Modules

ABB ICSO08Y1 Binary Output Unit Overview

The ABB ICSO08Y1 is a digital output module designed for use within ABB's Procontic CS31 decentralized automation system. It functions as a remote I/O unit, converting control signals from the central processing unit (CPU) into electrical outputs to actuate field devices such as contactors, relays, and indicator lamps. Its primary characteristics are its 8 transistor outputs, high isolation, and robust design for industrial environments.

Product Detailed Description

• Function:

• Receives digital control signals (e.g., ON/OFF commands) from the Procontic CS31 system bus (RS485).

• Switches electrical loads connected to its 8 output channels.

• Provides electrically isolated outputs, meaning the control circuit is separated from the load circuit, enhancing safety and reducing interference.

• Outputs are typically short-circuit proof and overload protected.

• Used to control a variety of binary actuators in industrial processes.

• Key Features:

• 8 Output Channels: Provides eight individual digital output channels.

• Transistor Outputs: Utilizes transistor outputs for fast switching and long lifespan, suitable for applications requiring frequent switching.

• Electrical Isolation: Outputs are electrically isolated from the CS31 system bus interface and from each other, improving noise immunity and fault tolerance.

• Overload and Short-Circuit Proof: Designed with internal protection mechanisms to prevent damage from overcurrents or short circuits on the output lines.

• 24 VDC Power Supply (ICSO08Y1 version): Operates on a 24 VDC power supply, common in industrial control systems. (A 230 VAC version, ICSO08Y1-230, also exists).

• CS31 System Bus Interface: Integrates seamlessly with the ABB Procontic CS31 decentralized automation system via an RS485 twisted-pair bus.

• Plug-in Design: Designed to be mounted on a plug-in base (e.g., ECZ base), allowing for easy module replacement without disturbing wiring.

• Diagnosis Functions: Includes integrated diagnostic capabilities with LEDs on the front panel to indicate signal status, error messages, and diagnosis data. A red LED typically signals errors, and yellow LEDs indicate channel status.

• Compact Unit: Space-saving design suitable for integration into control cabinets.

Product Parameters

(Note: Specific parameters might vary slightly between revisions or exact sub-variants. Always refer to the official ABB documentation for the precise model, e.g., the Procontic CS31 system manual.)

• Module Type: Digital Output Module / Binary Output Unit

• Number of Channels: 8

• Output Type: Transistor outputs

• Rated Output Voltage: 24 VDC

• Rated Output Current (per channel): 2 A (max.)

• Maximum Total Current (for 8 outputs): Typically 8 A

• Minimum Load: > 50 mA (Important: For loads below 50mA, a different module like ICSC 08 L1 might be recommended to guarantee a safe OFF state due to output leakage current.)

• Power Supply: 24 VDC (for ICSO08Y1)

• Electrical Isolation: Electrically isolated outputs and bus interface.

• Protection: Overload and short-circuit proof.

• Communication Interface: CS31 system bus (RS485)

• Mounting: Plugs into an ECZ plug-in base (which can be screw or DIN rail mounted).

• Indicators: 8 yellow LEDs for channel status/diagnosis, 1 red LED for error.

• Dimensions (approx.): 12.2 cm (H) x 9.5 cm (W) x 6.3 cm (D)

• Weight (approx.): 0.32 kg

• Operating Temperature: Typically 0 °C to +60 °C (32 °F to 140 °F)

• Storage Temperature: Typically -20 °C to +70 °C (-4 °F to +158 °F)

• Humidity: Max 95% non-condensing

Product Advantages

• Reliable Control: Transistor outputs offer high reliability and speed for controlling binary actuators.

• Enhanced Safety: Electrical isolation of outputs protects sensitive control electronics from field disturbances and ensures safety in fault conditions.

• Robustness: Designed for industrial environments, offering durability and long operational life.

• Integrated Diagnostics: On-board LEDs and diagnostic functions simplify troubleshooting and reduce downtime.

• Easy Maintenance: Plug-in design on a base allows for quick and easy module replacement without rewiring.

• Cost-Effective Cabling: As part of a decentralized system, it reduces the need for long, expensive runs of individual cables from a central PLC, relying instead on a simple twisted-pair bus.

• Overload and Short-Circuit Protection: Built-in protection helps prevent damage to the module and connected loads.

Precautions

• System Compatibility: This module is specifically designed for the ABB Procontic CS31 automation system and requires a compatible CPU and system bus.

• Power Supply: Ensure the correct 24 VDC power supply is provided and stable.

• Minimum Load: Pay close attention to the minimum load requirement (> 50 mA). If driving loads below this value, the safe OFF state cannot be guaranteed due to leakage current, and an alternative module (e.g., ICSC 08 L1) should be considered.

• Proper Mounting: Mount the module securely onto its designated plug-in base (ECZ) and ensure the mechanical coding on the base is correctly set for the supply voltage to prevent incorrect insertion.

• Wiring: Adhere strictly to the wiring diagrams provided in the ABB documentation. Ensure proper polarity and secure connections.

• Environmental Conditions: Operate the module within its specified temperature and humidity ranges. Avoid excessive vibration or corrosive atmospheres.

• Obsolescence: The Procontic CS31 system is an older, likely "legacy" ABB product line. While modules like ICSO08Y1 may still be available from surplus suppliers, consider long-term support, spare parts availability, and potential obsolescence challenges for new projects.

Product Applications

The ABB ICSO08Y1 Binary Output Unit is used in various industrial and building automation applications where digital (ON/OFF) control of field devices is required, especially as part of a decentralized control architecture.

• Machine Control:

• Actuating contactors for motor start/stop.

• Controlling solenoid valves for pneumatic or hydraulic cylinders.

• Switching indicator lights and alarms.

• Process Control:

• Opening/closing valves in pipelines.

• Starting/stopping pumps and fans.

• Controlling heating elements or cooling fans.

• Building Automation:

• Switching lights on/off.

• Controlling dampers in HVAC systems.

• Operating access control gates or barriers.

• Conveyor Systems:

• Starting/stopping conveyor motors.

• Actuating diverters or stops.

• Packaging Machinery:

• Controlling pneumatic grippers or sealing mechanisms.

• Operating sorting gates.
