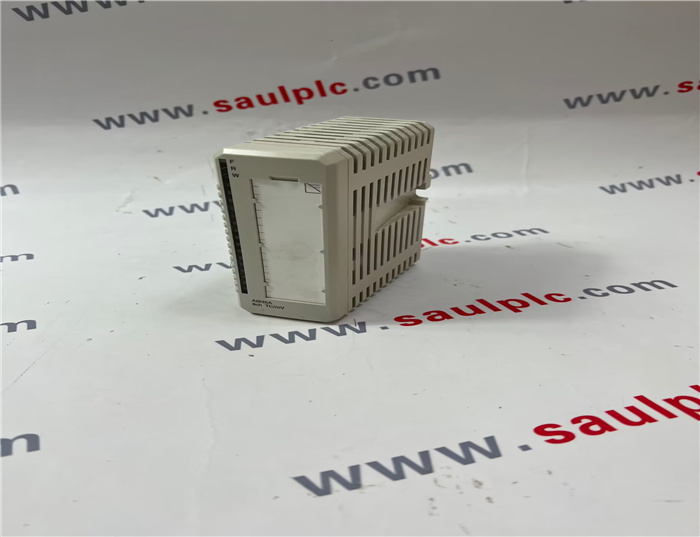

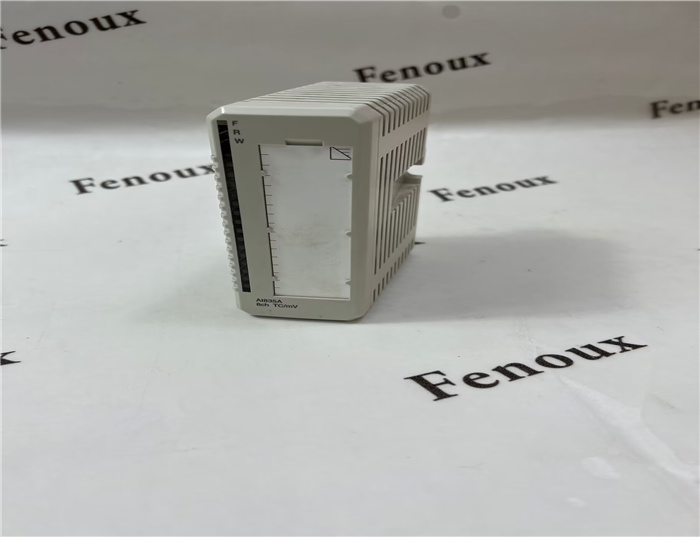

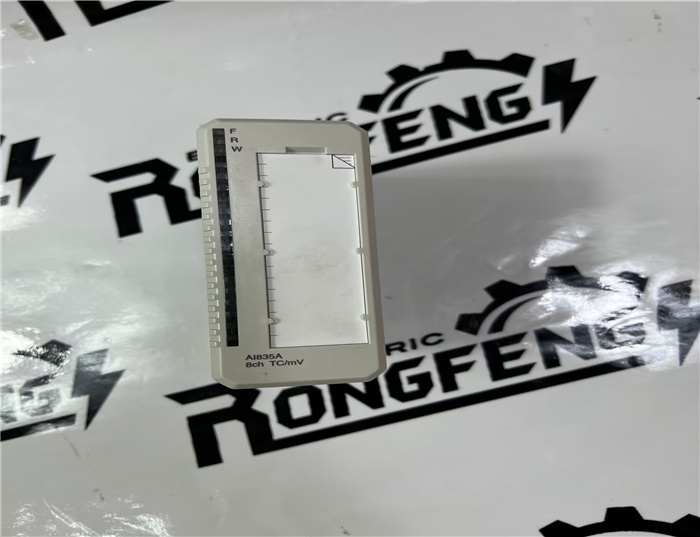

Thermocouple/mV measurements. Measurement ranges configurable
per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, N, R,
S and T, for AI835A also D, L and U.
One of the channels (Channel 8) may be configured for “Cold
Junction” (ambient) temperature measurements, thus serving as CJchannel
for Ch. 1...7. The junction temperature may be measured
locally on the MTUs screw terminals, or on a connection unit distant
form the device.
Alternatively, a fix junction temperature for the module may be set by
the user (as parameter) or for AI835A also from the application.
Channel 8 may be used in the same manner as Ch. 1...7 when no CJtemperature
measurement is needed.
Features and benefits
8 differential input channels for thermocouple/mV.
Channel 8 can be designated as the CJ-channel (4-wire Pt100 RTD)
Variety of thermocouples with the following characteristics: B, C, E, J, K, N, R, S and T for AI835A also D,
L and U
15 Bit resolution (A/D)
Inputs are monitored for wire-break open-circuit
General info
Article number 3BSE051306R1
Type Analog Input
Signal specification -30..75 mV linear; TC types B, C, D, E, J, K, L, N, R, S, T and U
Number of channels 8
Signal type See table in S800 Modules and Termination Units, 3BSE020924
HART No
SOE No
Redundancy No
High integrity No
Intrinsic safety No
Mechanics S800
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
