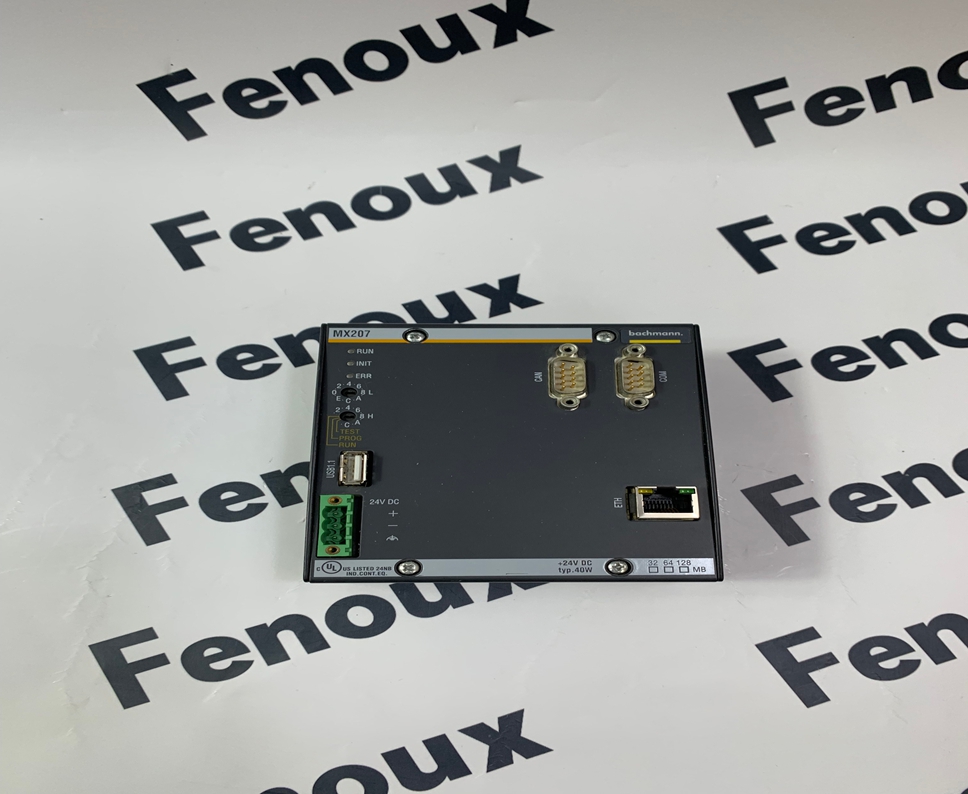

bachmann MX207 CPU Module

Product Detailed Description

• Functionality: The MX207 serves as the brain of a Bachmann M1 automation system for compact applications. It executes control programs, manages I/O modules, processes data, and handles communication with other devices and systems. It supports real-time multi-tasking, allowing different programs to run in parallel.

• Architecture: It's based on PC technology, optimized for industrial control. It uses a single-core processor and is integrated into Bachmann's modular M1 system, meaning it can be combined with various I/O and communication modules to create a complete control solution.

• Integrated Interfaces: A key feature of the MX207 is its integrated communication interfaces, reducing the need for additional modules and simplifying system design. These include:

• Ethernet (Eth100): For network communication, PLC-to-PLC communication, and HMI integration.

• CAN/CANopen: For fieldbus communication with devices like drives, sensors, and actuators.

• RS232/422/485: Versatile serial communication for various protocols and devices.

• USB 2.0: For connecting external devices or for service and data transfer.

• Memory: The module comes with a specific configuration of RAM (DRAM), non-volatile RAM (nvRAM), and internal file-flash memory for program storage and data retention. The nvRAM is particularly important as it provides secure data storage for over 10 years without a battery backup.

• Robust Design: The MX207 is built to operate reliably in challenging industrial environments. Its generous thermal design and special coating processes allow for fanless operation in a wide temperature range, and it can withstand high humidity.

• Software Integration: It operates with Bachmann's M-BASE V3.80 or higher software, providing a powerful environment for programming, configuration, and diagnostics.

Product Parameters

• CPU: 266 MHz SingleCore Processor

• DRAM (Dynamic RAM): 256 MB

• nvRAM (Non-Volatile RAM): 512 kB

• File-Flash Memory: 64 MB

• Ethernet Ports: 1x Eth100 (10/100 Mbit/s)

• CAN Interfaces: 1x CAN/CANopen

• Serial Interfaces: 1x RS232/422/485 (configurable)

• USB Ports: 1x USB 2.0

• I/O-Supply Power: 18 W (can power connected I/O modules)

• Operating Temperature (fanless): -30 to +60 °C (Standard version)

• Relative Air Humidity (operation): 5 to 95 % without condensation; 5 to 95 % with condensation (within limits, refer to manual for specifics)

• Storage Temperature: -40 to +85 °C

• Relative Air Humidity (storage): 5 to 95 % without condensation; 5 to 95 % with condensation

• Mounting: Designed for integration into the Bachmann M1 system rack/bus.

• Dimensions: Compact, single-module width typically (specific dimensions depend on the housing of the M1 system).

• Certifications: (Likely CE, UL/cUL for industrial control equipment, specific details in official documentation).

• Firmware/OS: Runs on VxWorks with Bachmann system extensions on internal FLASH.

Product Advantages

• High Environmental Robustness: Designed for fanless operation in extreme temperatures (-30 to +60 °C) and high humidity, making it suitable for demanding industrial applications.

• Cost-Effective Solution: Provides strong performance for small to medium-sized applications, optimizing costs without compromising quality.

• Compact Design: Its small physical footprint saves space in control cabinets and machinery.

• Integrated Communication: Onboard Ethernet, CAN, RS, and USB interfaces simplify system architecture and reduce hardware costs.

• Real-time Multi-tasking: Enables efficient and precise control of complex processes by executing different programs in parallel.

• Data Security: The 512 kB nvRAM provides long-term, battery-free data retention, ensuring maximum data security.

• Scalability: Applications can be easily transferred to more powerful Bachmann CPU models within the M1 system if future performance upgrades are needed.

• Reliability: Bachmann hardware is renowned for its high quality and system availability, often exceeding 99.9%.

Precautions

• Correct Installation: Adhere strictly to Bachmann's installation guidelines, ensuring proper mounting, grounding, and wiring within the M1 system.

• Power Supply: Ensure the I/O supply and system power are within the specified voltage and current limits.

• Environmental Limits: Operate the module within its specified temperature and humidity ranges to guarantee long-term reliability. While robust, avoid direct exposure to corrosive substances or excessive vibration beyond specified limits.

• Software Compatibility: Use the correct version of Bachmann's engineering software (M-BASE V3.80 or higher, with SolutionCenter) for configuration, programming, and diagnostics to ensure proper functionality and avoid compatibility issues.

• Firmware Updates: Regularly check for and apply recommended firmware updates from Bachmann to ensure optimal performance, security, and bug fixes.

• Security: As with any networked industrial controller, implement strong cybersecurity practices. Bachmann recommends using Security Level 4, which limits communication to TLS-protected services and disables insecure services, and changing default usernames/passwords. Restrict physical access to the device.

• Modular System Awareness: Understand that the MX207 is part of a modular system. Its full functionality depends on being correctly integrated with other Bachmann M1 I/O and communication modules.

Product Applications

The Bachmann MX207 CPU module is ideally suited for a wide range of industrial automation and control applications, particularly where compact size, robustness, and real-time performance are crucial.

• Machine Control: General machine automation, from simple conveyors to more complex production machines.

• Simple Motion Control: Applications requiring basic control of servo drives or other motion components.

• Condition Monitoring Systems (CMScompact): Often integrated into intelligent monitoring solutions for industrial assets, leveraging its processing power for data acquisition and analysis (e.g., vibration monitoring when paired with AIC214 modules).

• Building Automation: Control of HVAC systems, lighting, and other building infrastructure.

• Renewable Energy: Control systems for smaller wind turbines, solar power plants, or grid integration units due to its robust design and real-time capabilities.

• Process Automation: Control and monitoring in smaller-scale process industries.

• Test Benches: For precise control and data acquisition in testing environments.

• Distributed Control Systems: As a local controller within larger, distributed automation architectures.

• Communication Hubs: Its multiple integrated communication interfaces make it suitable for applications requiring diverse protocol handling.
