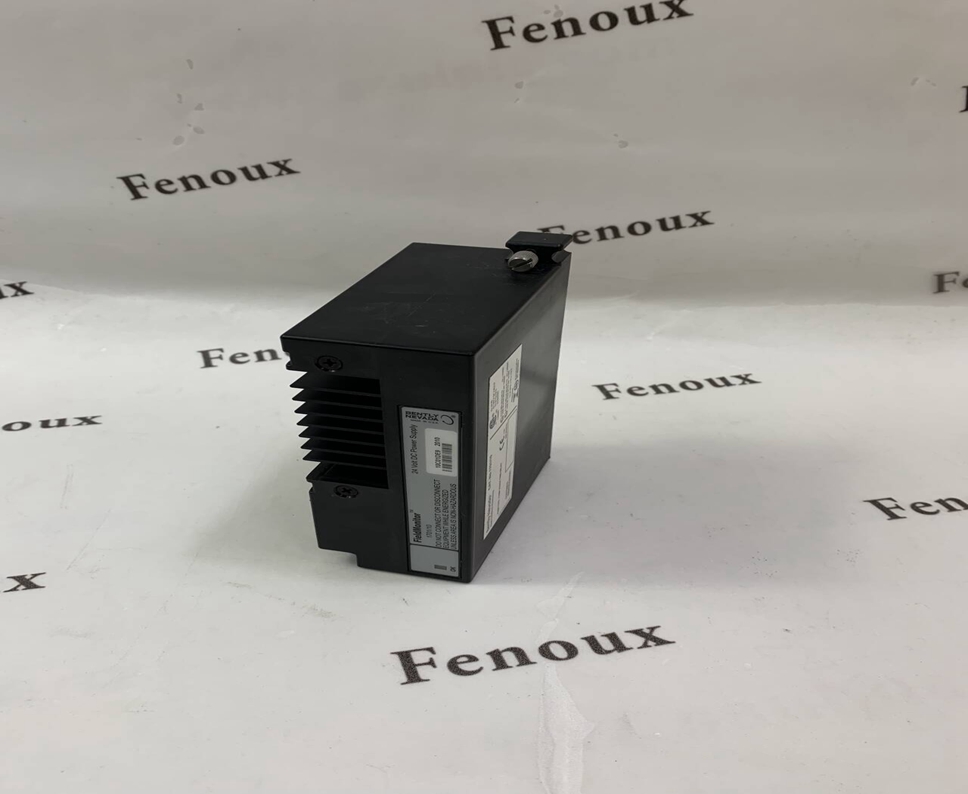

BENTLY 1701/10

Specifications

Inputs/Outputs

Specified at ambient temperature

of +25° C (+77° F).

Input voltage

range:

+ 18 V to + 36 V dc

Inrush current:

30 Amp pk nominal

Fusing:

250 V, 3 Amp, SB

Isolation

Voltage:

850 Vdc, primary to chassis, 1

minute

Over voltage

protection:

No damage to 50 Vdc

Input conductor

size:

14 to 26 AWG

Physical

Dimensions (H X

W X D):

105 mm x 150 mm x 56 mm

(4.1 in x 5.9 in x 2.2 in)

Weight:

0.57 kg (1.25 lb.)

Environmental Limits

Operating

Temperature:

-20° C to + 70° C (-4° F to +158° F)

Storage

Temperature:

-40° C to + 85° C (-40° F to +185° F)

Operating

Humidity:

5% to 95% non-condensing

relative humidity

Storage

Humidity:

5% to 95% non-condensing

relative humidity

Ordering Information

1701/10-01 24-Volt Power Supply.

Hazardous Area Approvals

North America

Ex nA IIC T4

Class I, Zone 2

Class I, Div 2

Groups A, B, C, D

T4 @ -30° C = Ta = +70° C

Per drawing # 139255

Certification

Number

CSA 1166985

European/ATEX

II 3G EEx nA [L] IIC T4

LCIE 00ATEX6016X

T4 @ -30° C = Ta = +70° C

II 1/3 G EEx nA[ia] ia IIC T4

LCIE 00ATEX6017X

T4 @ -30° C = Ta = +70° C

Brazil

Br-Ex nA [nL] IIC T4

MC, AEX-8304-X

T4 @ -30° C = Ta = +70° C
