Product Detailed Description
A complete 3300 XL 8 mm proximity transducer system consists of three main parts:
330180 XL 8 mm Probe: The sensor itself, which uses the eddy current principle to measure the distance between the probe tip and the observed surface (typically the shaft).
330101 or 330102 Extension Cable: A shielded cable that connects the probe to the proximity sensor. The "90" in the part number likely relates to the length of this cable in inches (90 inches = 2.286 meters).

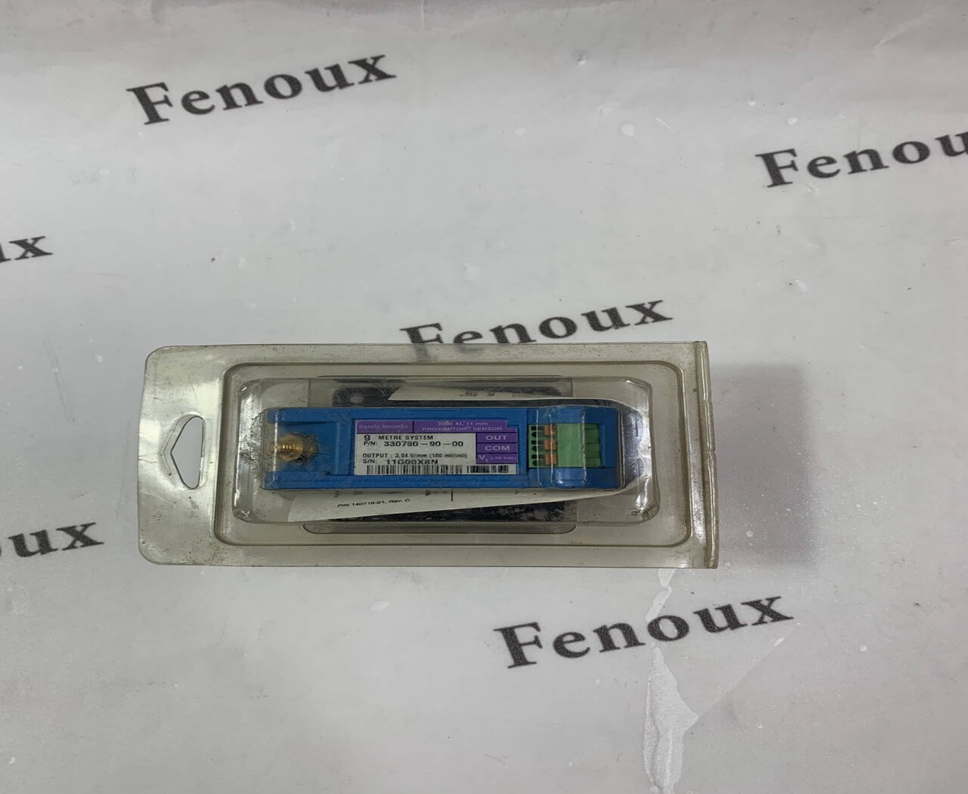

3300 System Proximitor Sensor: The electronic module that excites the probe, processes the signal from the probe and extension cable, and provides an output voltage proportional to the gap (distance) between the probe tip and the target surface. The "-00" in the part number likely indicates a specific output and mounting configuration of the proximitor.
The system provides a linear output voltage proportional to the gap, which can then be used to determine vibration amplitude and phase, as well as shaft axial position or radial position.
Product Parameters (Typical for 3300 XL 8 mm System)
Probe Diameter: 8 mm (0.315 inches)
Sensing Range: Typically 2 mm (0.080 inches)
Linearity Range: Typically 0.25 mm to 2.25 mm (0.010 inches to 0.090 inches)
Sensitivity: Typically 7.87 V/mm (200 mV/mil)
Frequency Response: 0 to 10 kHz (-3 dB)
Output Voltage: Proportional to gap (typically -1 to -18 VDC within the linear range)
Power Input: Typically -17.5 to -26 VDC
Temperature Range:
Probe: -51 °C to +177 °C (-60 °F to +350 °F)
Extension Cable: -51 °C to +177 °C (-60 °F to +350 °F)
Proximitor Sensor: -51 °C to +100 °C (-60 °F to +212 °F)
Connector Type (Likely related to the "-00"): May vary, often a standard coaxial connector.
Extension Cable Length (Related to "90"): Likely 90 inches (2.286 meters).
Probe Length (Likely related to the first part of the number): The "330780" likely indicates a specific probe length and thread configuration. Refer to the specific Bently Nevada datasheet for this exact probe series.
Target Material: Typically steel alloys.
Product Advantages
High Accuracy and Linearity: Provides precise and consistent vibration and position measurements.
Non-Contact Measurement: Eliminates wear and tear associated with contact-based sensors.
Early Fault Detection: Enables early identification of developing machinery faults, allowing for proactive maintenance.
Wide Frequency Response: Suitable for monitoring a broad range of vibration frequencies.
Robust and Reliable: Designed for harsh industrial environments.
Industry Standard: The 3300 XL series is a widely recognized and trusted standard in the machinery protection industry.
Versatile Applications: Can be used for radial vibration, axial position, thrust bearing monitoring, and more.
Precautions
Correct Installation: Follow Bently Nevada's installation guidelines meticulously, including proper probe gap setting, torque, and wiring.
Environmental Considerations: Ensure the transducer system is operated within its specified temperature and environmental limits. Protect against excessive moisture, dust, and corrosive materials.
Cable Shielding and Grounding: Proper shielding and grounding of the extension cable are crucial for signal integrity and noise reduction.
Calibration and Testing: Regular calibration and testing of the entire transducer system are recommended to ensure accuracy and proper operation.
Target Material Compatibility: Ensure the target material is compatible with the eddy current sensing principle.
Avoid Physical Damage: Protect the probe and cables from physical damage during installation and operation.
Proximitor Power Supply: Ensure the proximitor sensor is supplied with the correct DC voltage.
Product Applications
The Bently Nevada 3300 XL 8 mm proximity transducer system is used in a wide variety of rotating machinery across various industries, including:
Turbomachinery: Steam turbines, gas turbines, compressors.
Pumps: Centrifugal pumps, positive displacement pumps.
Fans and Blowers: Industrial fans, cooling tower fans.
Gearboxes: Monitoring gear mesh vibration and shaft position.
Electric Motors and Generators: Monitoring bearing vibration and rotor position.
Paper Machines: Roll vibration and position monitoring.
Petrochemical Plants: Monitoring critical rotating equipment.
Power Generation Facilities: Monitoring turbines, generators, and pumps.
Oil and Gas Pipelines: Monitoring compressor station equipment.
To get the exact specifications and details for the specific "Bently 330780-90-00" configuration, it is essential to consult the official Bently Nevada (Baker Hughes) datasheet for this part number.
