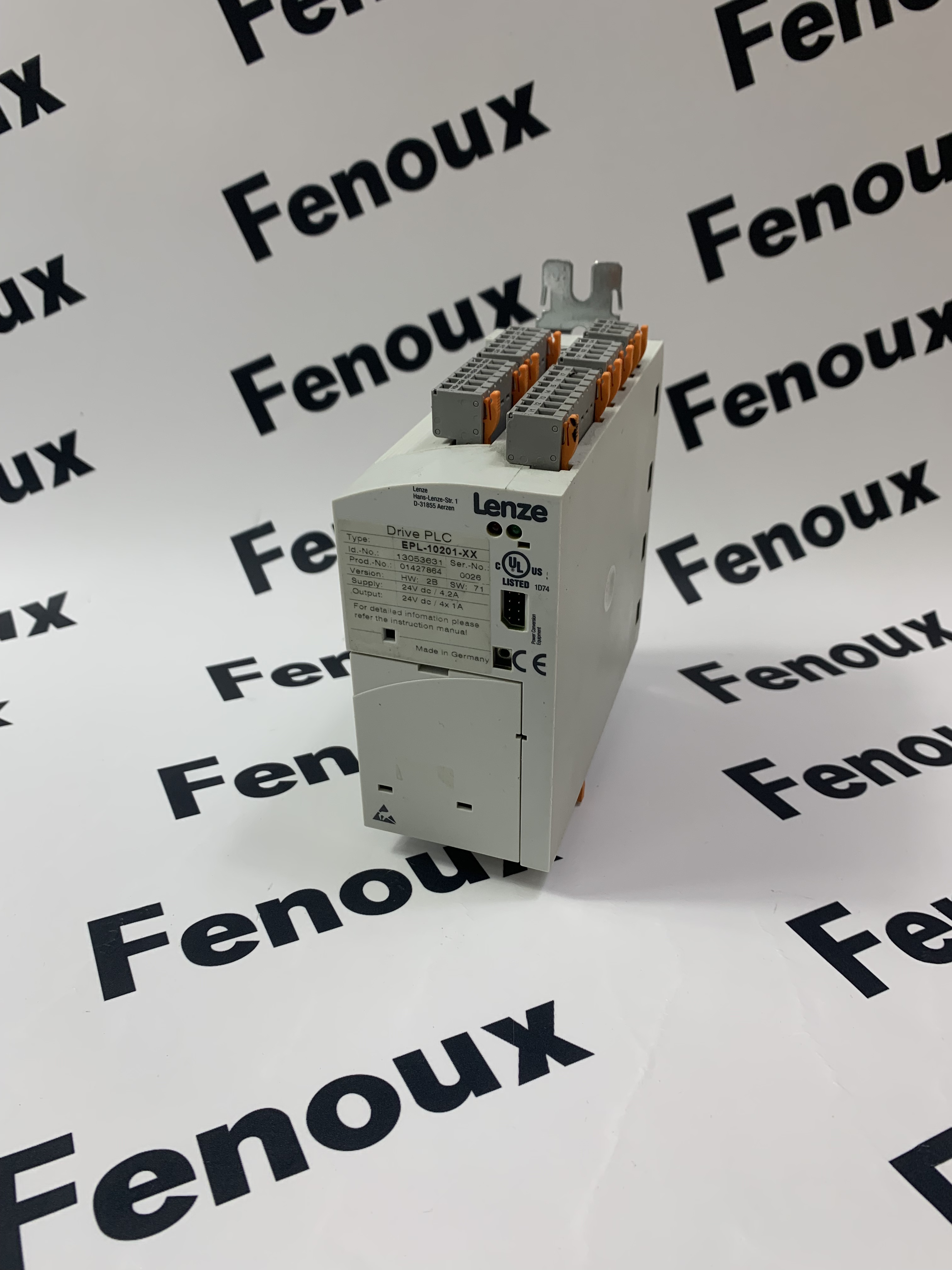

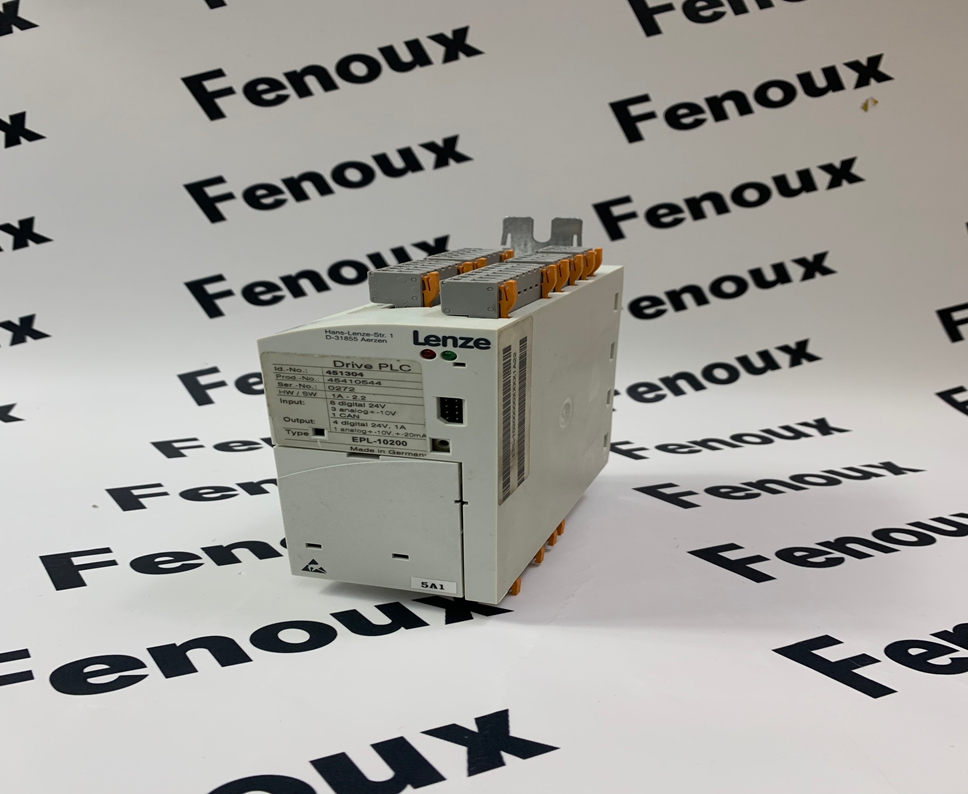

Lenze EPL-10200 Programmable Logic Controller

The Lenze EPL-10200 is a compact PLC (Programmable Logic Controller) Drive designed for industrial automation and motion control applications. It integrates programmable logic control capabilities with drive functions in a single, space-saving unit.

Here's a detailed description of its features and specifications:

Key Features:

• Integrated PLC and Drive Functionality: Combines the control capabilities of a PLC with the motor control features of a drive, streamlining system design and reducing wiring.

• Compact Design: Its small footprint allows for flexible installation in control cabinets, often suitable for both panel mounting and DIN rail mounting. It is lightweight, typically around 0.24 kg.

• Versatile Control Modes: Offers various control modes, including:

• Velocity Control: For precise speed regulation of motors.

• Position Control: For accurate positioning of moving parts.

• Torque Control: For managing the torque output of the motor.

• Integrated I/O (Inputs/Outputs): Reduces the need for external I/O modules, simplifying wiring and potentially lowering overall system cost. Typical configurations include:

• Digital Inputs: 8 (often 24VDC, some with interrupt capability).

• Digital Outputs: 4 (often 24VDC, 1A max).

• Analog Inputs: 3 (typically ±10V, 11-bit resolution).

• Analog Outputs: 1 (typically ±10V or ±20mA, 11-bit resolution).

• Expandability (via Extension Boards): Supports optional extension boards (e.g., EPZ-10203) for additional I/O or specialized functions like:

• Encoder/Meter Input (e.g., 9-pin DSub HTL/TTL for fast counting and length measurements).

• Additional digital and analog I/Os.

• Programming: Programmed using Lenze's "Drive PLC Developer Studio" software, which supports common IEC 61131-3 programming languages such as:

• Instruction List (IL)

• Ladder Diagram (LD)

• Function Block Diagram (FBD)

• Structured Text (ST)

• Sequential Function Chart (SFC)

• Continuous Function Chart (CFC) Editor

• Communication Interfaces: Features an integrated system bus (CAN programming interface) and can support various communication modules for networking with other industrial devices (PLCs, HMIs, etc.), including:

• PROFIBUS DP

• EtherNet/IP

• CANopen

• DeviceNet

• INTERBUS (with relevant modules)

• LECOM (RS232/485/optical fiber)

• Pluggable FP interface (freely programmable RS232)

• Memory:

• EEPROM parameter memory: 800 kB

• User memory (RAM): 11.3 kB (for applications), 25.3 kB (for PLC data)

• Powerfail-proof user memory: 200 bytes

• Task Management: Supports a cyclic task and 8 time or event-controlled tasks, with a minimum task running time of 1 ms and fast bit operation processing time (around 0.7-1.0 µs).

• Protection Features: Includes standard protection features like overload protection, overtemperature protection, and short-circuit protection.

• Voltage Supply: Operates on a 24 VDC power supply (typically +18 to 30 V DC).

Typical Applications:

The Lenze EPL-10200 is ideal for applications requiring precise coordination of motion and process control in a compact form factor, such as:

• Machine building

• Conveyor systems

• Packaging machines

• Textile machinery

• Material handling systems

• General industrial automation where integrated PLC and drive functions are beneficial.

Note: The exact specifications and features may vary slightly depending on the specific sub-model (e.g., EPL-10200-XX) and any installed extension boards. For the most precise information, always refer to the official Lenze datasheet or user manual for the specific part number.
