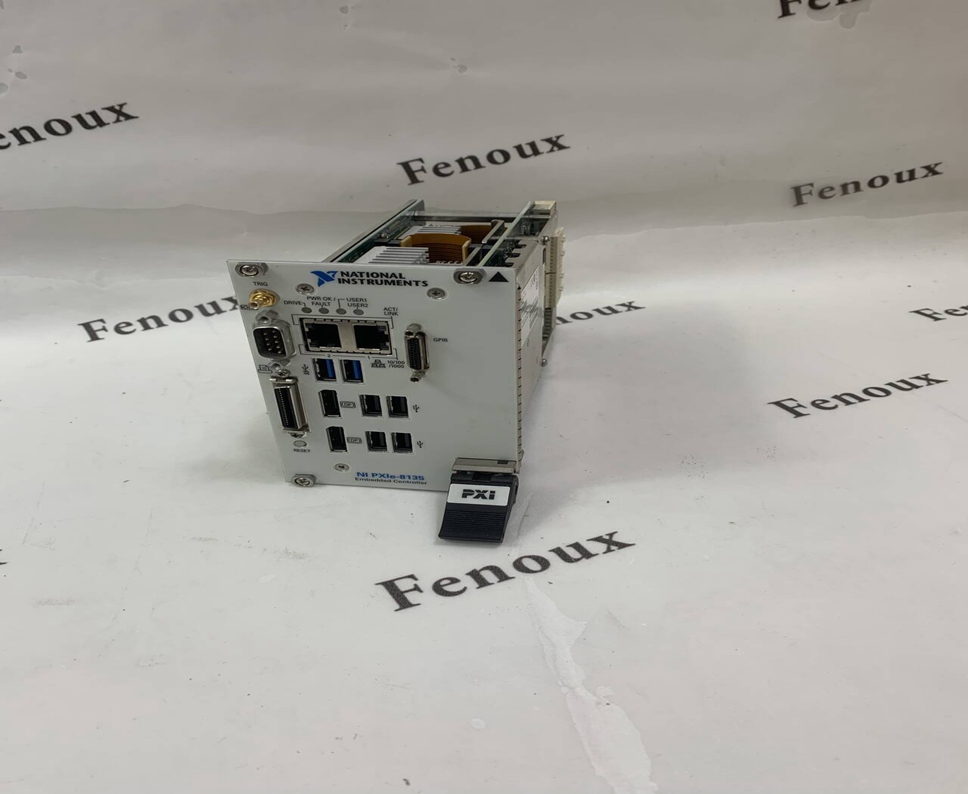

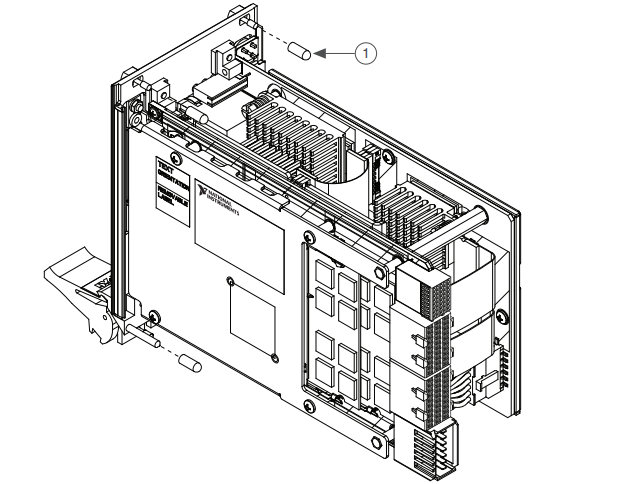

National Instruments PXIE-8135

• The Watchdog Timer block consists of a watchdog timer that can reset the controller or

generate a trigger.

• The Intel 7 Series chipset connects to the PCI, USB, Serial ATA, ExpressCard,

PXI Express, and LPC buses.

• The USB Connectors connect the Intel 7 Series chipset to the Hi-Speed USB 2.0 interface

and USB 3.0 interfaces.

• The Serial ATA Hard Disk is a 250 GB or larger notebook hard disk.1 The Serial ATA

interface enables transfer rates up to 600 MB/s. The hard disk also supports Native

Command Queuing.

Note The NI PXIe-8135 removable hard drive Serial ATA interface enables

transfer rates up to 300 MB/s.

• The PXI Express Connector connects the NI PXIe-8135 to the PXI Express/

CompactPCI Express backplane.

• The Super I/O block represents the other peripherals supplied by the NI PXIe-8135. The

NI PXIe-8135 has one serial port, and an ECP/EPP parallel port.

• Both the 82579 and 82574 Gigabit Enet ports connect to either 10 Mbit, 100 Mbit, or

1,000 Mbit Ethernet interfaces. Both ports are housed in a dual stacked Ethernet connector.

• The GPIB block contains the GPIB interface.

• The ExpressCard/34 slot accommodates an ExpressCard/34 module.
