1. Key Product Specifications

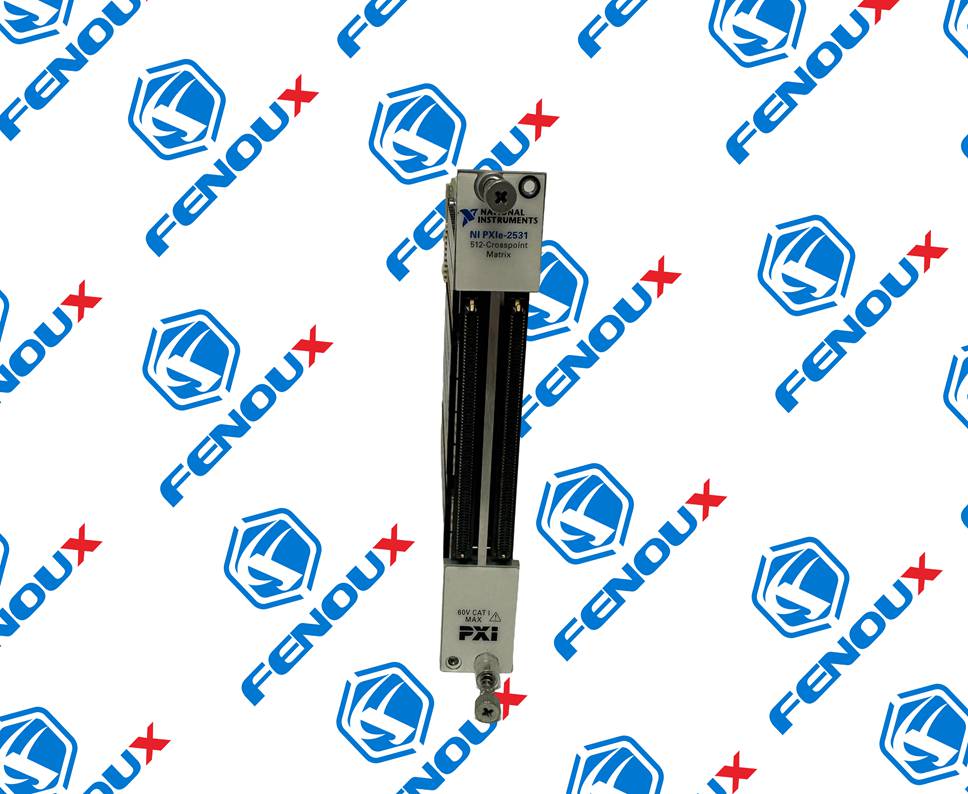

The PXIe-2531 is built on Reed Relay technology, providing a balance of speed and longevity.
| Feature | Specification |
| Topology | 1-wire 4x128 Matrix |
| Relay Type | Reed Relay |
| Max Switching Voltage | 100 VDC / 100 Vp (CAT I) |
| Max Switching Current | 0.5 A |
| Max Switching Power | 10 W |
| Switching Speed | ~0.25 ms (Typical) |
| Total Crosspoints | 512 |
| Interface | PXI Express |
2. Product Advantages
High Density in a Single Slot: Offers 512 crosspoints in a single PXI Express slot, saving valuable rack space.
Fast Switching Speeds: Utilizing reed relays allows for significantly faster actuation times (sub-millisecond) compared to traditional electromechanical armatures.
Onboard Relay Counting: Tracks relay cycles to assist in predictive maintenance and system uptime.
Hardware Triggers: Supports PXI triggers, allowing the switch to synchronize with DMMs or oscilloscopes for high-speed automated sequences without software overhead.
Scalability: Multiple modules can be linked together using terminal blocks or cables to create even larger matrices (e.g., 4x256 or 8x128).
3. Applications
The NI PXIe-2531 is ideal for environments where many measurement points must be connected to a few instrument channels.
Massive Parallel Testing: Routing signals in semiconductor or PCB functional testing.
Data Acquisition (DAQ): Scanning hundreds of sensors (voltages, temperatures) into a single measurement device.
Hardware-in-the-Loop (HIL): Simulating various fault conditions or routing signals between real-time controllers and physical hardware.
Consumer Electronics Testing: Validating multiple connection points on smartphones, tablets, or automotive ECUs.
4. Critical Considerations & Precautions
Important: Failure to follow electrical limits can lead to welded relays or permanent damage to the module.
Power Limitations: Ensure the signal does not exceed 10 W. Reed relays are sensitive to even brief power spikes.
Inductive Loads: If switching inductive loads (like motors or large solenoids), use flyback diodes or snubbers to prevent "arcing" that can weld the contacts.
Cold Switching: To maximize relay life, it is recommended to "cold switch" (turn off the signal source before opening or closing the relay).
Cabling: Given the high density, high-quality shielded cables and terminal blocks (such as the TB-2631) are necessary to maintain signal integrity and reduce crosstalk.
