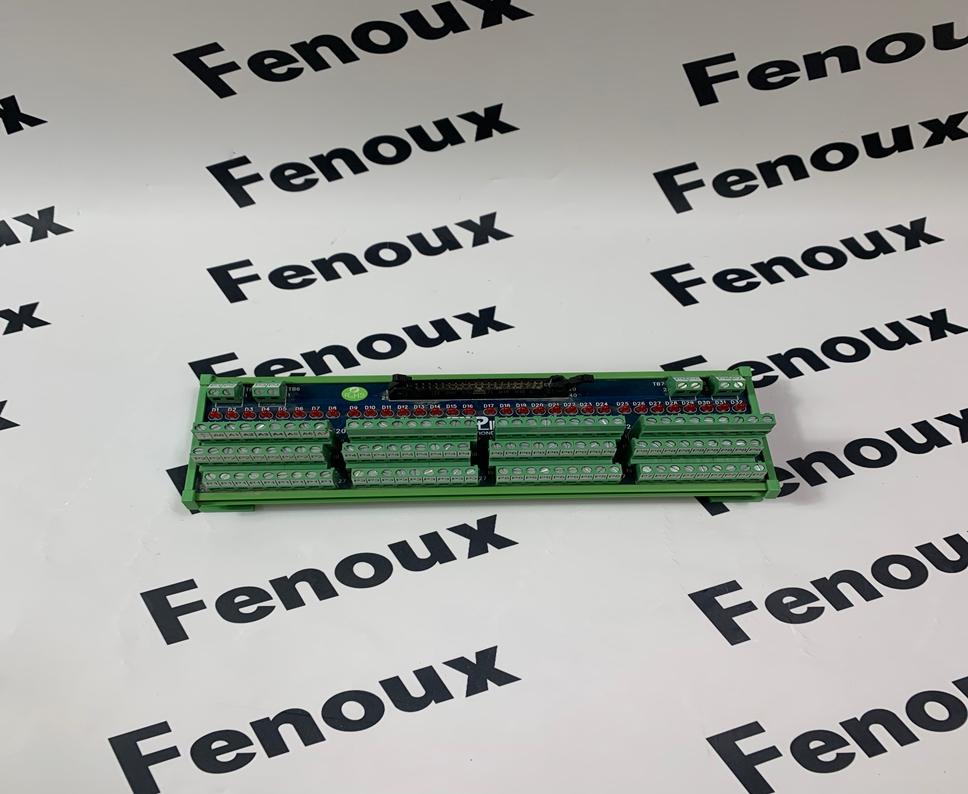

AutomationDirect ZL-LTB32-24 ZIPLink Sensor Input Module

Brand:AutomationDirect

Model number:ZL-LTB32-24

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.25kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

AutomationDirect ZL-LTB32-24 ZIPLink Sensor Input Module


INQUIRE NOW

Products Name: AutomationDirect ZL-LTB32-24 ZIPLink Sensor Input Module

PRODUCT DESCRIPTION

AutomationDirect ZL-LTB32-24 Overview

The AutomationDirect ZL-LTB32-24 is a 32-point input module that serves as an interface between field sensors (typically 24VDC) and a PLC's input module. It's a key component of the ZIPLink wiring system, known for reducing wiring time and simplifying troubleshooting by providing clear terminal connections and individual LED indicators for each input point.


Product Detailed Description

  • Function: The ZL-LTB32-24 module provides a convenient and organized way to connect up to 32 discrete 24VDC sensors to a compatible PLC input module. It acts as a breakout board, converting the high-density ribbon cable connection from the PLC into individual screw terminals for field wiring.

  • LED Indication: Each of the 32 input points has a dedicated LED indicator. This visual feedback allows for quick verification of sensor status and greatly aids in troubleshooting, as an illuminated LED directly indicates an active input signal from a connected sensor.

  • Power Grouping: The module typically groups inputs into power groups (e.g., P1, P2, P3, etc.) to manage power distribution for multiple sensors.

  • Compatibility: It is designed to work seamlessly with various AutomationDirect PLC series, including CLICK, Do-more BRX, Productivity Series, and DirectLOGIC Series, using specific ZIPLink cables (sold separately).

  • Mounting: It is designed for standard 35mm DIN rail mounting, which simplifies installation in control cabinets.


Product Parameters

(Note: These parameters are based on common specifications for the ZL-LTB32-24 and its variants like ZL-LTB32-24-1. Always refer to the official AutomationDirect datasheet for the most precise details.)

  • Type: ZIPLink Sensor Input Module

  • Number of Points: 32-point

  • Input Voltage: 24VDC (nominal)

    • Maximum Voltage: 50VAC/VDC (-10%/+20%)

    • UL Voltage Rating: 0-30 VAC/VDC (-10%/+20%)

  • LED Indicator: Yes, for each input point

    • LED Indicator Circuit Current: 2mA @ 24VDC/VAC per LED

  • Maximum Current per Input: 500mA

  • Maximum Current per Power Group: 4A (e.g., P1, P2, etc.)

  • Terminal Block Positions: 32

  • Terminal Block Contacts: Copper alloy, tin-lead plated

  • Wire Range (Rated Cross Section): 12-24 AWG Solid or Stranded Copper (2.5mm²)

  • Wire Strip Length: 0.24-0.27 inches (6-7 mm)

  • Screw Torque: 4.4 in-lbs (0.5 Nm)

  • Connector Type (for PLC cable): 3M 34000 Series IDC Connector (strain relief is required)

  • Operating Temperature Range: 32 to 140°F (0 to 60°C)

  • Mounting: 35mm DIN Rail

  • Weight: Approximately 448g (15.8 oz)

  • Approvals: UL, cUL, CE, EN 61131-2:2007

  • Required Accessories: Compatible ZIPLink cable for connection to the PLC I/O module.


Product Advantages

  • Significant Time Savings: Eliminates the need for tedious point-to-point wiring from PLC I/O modules, drastically reducing installation and wiring time.

  • Simplified Wiring: Provides a clean, organized, and standardized wiring solution, reducing human error.

  • Enhanced Troubleshooting: Individual LED indicators for each input provide immediate visual confirmation of sensor status, making troubleshooting and fault identification much faster and easier.

  • Reduced Errors: Pre-wired cables and clearly labeled terminals minimize wiring mistakes.

  • Space Efficiency: Its compact DIN rail mountable design saves valuable panel space.

  • Robust Construction: Designed for industrial environments, ensuring reliability and longevity.

  • Cost-Effective: While requiring a ZIPLink cable, the overall cost savings from reduced installation time and faster troubleshooting often outweigh the initial investment.


Precautions

  • Compatibility: Ensure the ZL-LTB32-24 module is compatible with your specific AutomationDirect PLC I/O module and that you select the correct ZIPLink cable. Refer to the ZIPLink Selection Guide on AutomationDirect's website.

  • Power Supply: Use a Class 2 power supply for the sensor inputs as specified in the product documentation.

  • Wire Gauge and Stripping: Use wires within the specified gauge range (12-24 AWG) and ensure correct wire strip length to guarantee secure and reliable connections. Adhere to the recommended screw torque.

  • Cable Strain Relief: Ensure the 3M IDC connector to the PLC cable has proper strain relief to prevent damage to the connection.

  • Environmental Conditions: Operate the module within its specified temperature and humidity ranges.

  • Current Limits: Do not exceed the maximum current per input point or per power group to prevent damage to the module.

  • Internal Wiring Only: Connecting cables for ZIPLink solutions are typically for internal wiring within a control panel.


Product Applications

The AutomationDirect ZL-LTB32-24 is ideally suited for applications requiring efficient and reliable connection of multiple 24VDC discrete sensors to a PLC system.

  • Industrial Automation Control Panels: Simplifying wiring for machine control, process control, and automated systems.

  • Manufacturing and Assembly Lines: Connecting proximity sensors, limit switches, pushbuttons, and other input devices to PLCs for controlling machinery.

  • Packaging Machinery: Streamlining the wiring of various sensors for product detection, position sensing, and machine sequencing.

  • Conveyor Systems: Interfacing with sensors used for material tracking, jam detection, and speed control.

  • Building Automation Systems: Connecting sensors for monitoring doors, windows, occupancy, and other discrete inputs.

  • Material Handling: Integrating sensors on robotic cells, automated storage and retrieval systems, and sorting equipment.

  • Any Application with High-Density 24VDC Discrete Inputs: Where reducing wiring time, simplifying troubleshooting, and optimizing panel space are critical.
