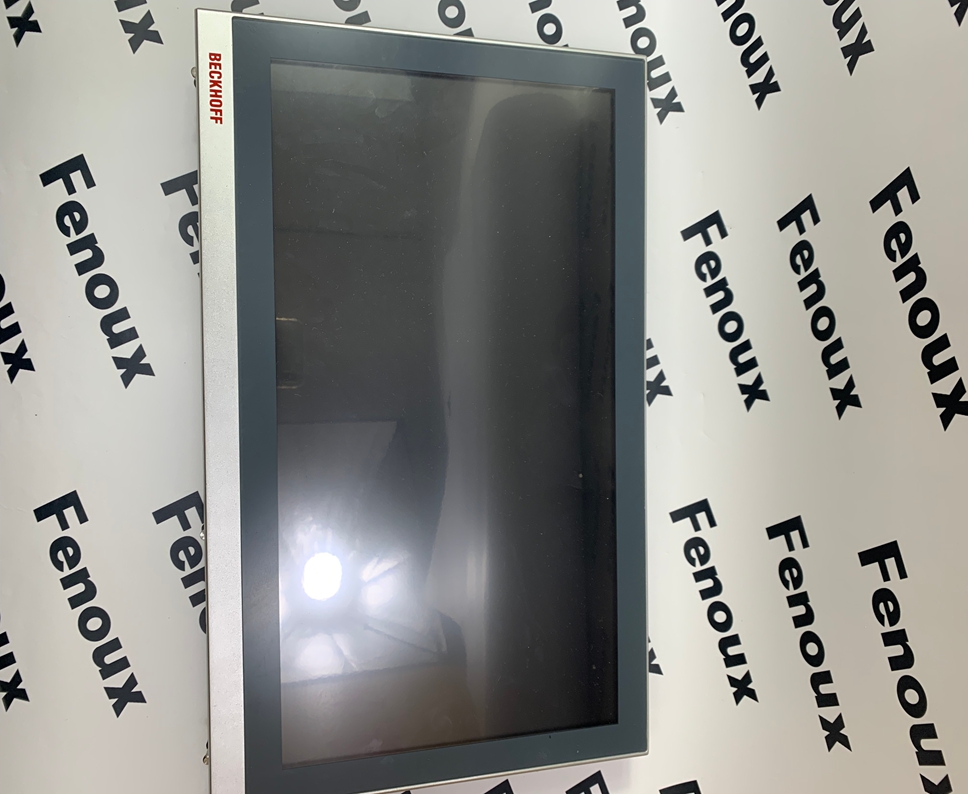

Beckhoff CP2918-1123-0000 Control Panel PC

Beckhoff CP2918-1123-0000 Control Panel PC Overview

The Beckhoff CP2918-1123-0000 is a high-performance, fanless "Economy" series multi-touch Control Panel PC designed for advanced machine control and visualization tasks in industrial environments. Part of Beckhoff's extensive range of industrial PCs, this model integrates a powerful PC and a widescreen display with multi-touch functionality into a single, robust housing, ideal for direct machine mounting.

Product Detailed Description

• Integrated Design: The CP2918-1123-0000 combines a display and a PC unit in one compact device, making it a space-saving and robust solution for machine and plant operation.

• Multi-Touch Display: Features an 18.5-inch widescreen TFT display with projected capacitive (PCAP) multi-touch technology. This allows for intuitive and modern gesture control, similar to smartphones and tablets, enhancing user experience and efficiency. The display is bright and offers excellent readability.

• Fanless Operation: Designed for fanless operation, the CP2918-1123-0000 minimizes maintenance requirements and reduces noise. This also makes it suitable for environments where dust or airborne particles are a concern, as there are no moving parts for cooling that could draw in contaminants.

• Industrial-Grade PC Components: Equipped with industrial-grade PC components, typically including an Intel Atom® processor (or similar, depending on the exact build code), solid-state drive (SSD) for robust data storage, and sufficient RAM for demanding HMI and control applications.

• Connectivity: Offers a range of standard industrial interfaces such as Ethernet, USB, and potentially optional fieldbus interfaces (e.g., EtherCAT, PROFINET, PROFIBUS) depending on the exact configuration (the "-0000" at the end suggests a standard configuration, but options might be possible with other last digits).

• Operating System Support: Supports standard industrial operating systems, primarily Microsoft Windows Embedded Standard, Windows 10 IoT Enterprise, or TwinCAT/BSD, providing a familiar and powerful platform for HMI and control software (like TwinCAT HMI or third-party SCADA/HMI packages).

• Robust Housing: Features a high-quality aluminum housing for the front and a steel sheet housing for the rear, ensuring durability and protection against industrial environments. The front panel typically offers a high degree of protection (e.g., IP65).

Product Parameters

(Note: Specific parameters can vary based on the exact configuration specified by the full order code. The following are typical for the CP2918 series.)

• Display Size: 18.5-inch widescreen TFT

• Display Type: Color LCD

• Touch Technology: Projective Capacitive (PCAP) Multi-touch

• Resolution: Typically 1366 x 768 pixels (WXGA)

• Processor: Intel Atom® (e.g., E38xx series or similar, specific model determined by order code)

• RAM: Typically 2 GB, 4 GB, or 8 GB DDR3L RAM (specific amount determined by order code)

• Storage: Industrial Micro SD card or CFAST card as mass storage, typically 40 GB or more (specific size determined by order code). SSD options are also common.

• Operating System (Pre-installed): Windows Embedded Standard 7/8/10, Windows 10 IoT Enterprise, or TwinCAT/BSD.

• Interfaces:

• Ethernet: 2 x 10/100/1000BASE-T (RJ45)

• USB: At least 2 x USB 2.0 or 3.0 ports

• COM Ports: (Optional, via adapter or specific configuration)

• DVI/DisplayPort (for external monitor, optional depending on configuration)

• Protection Rating (Front): IP65 (typically)

• Operating Temperature: 0 to 50 °C (32 to 122 °F) (may vary slightly with specific CPU/configuration)

• Storage Temperature: -20 to 60 °C (-4 to 140 °F)

• Power Supply: 24 V DC (±20%)

• Mounting: Panel mount

• Dimensions (approximate front panel): (Specific to 18.5" widescreen, refer to datasheet for exact dimensions)

• Weight: (Varies by configuration)

• Certifications: CE, UL, etc. (refer to specific product documentation)

Product Advantages

• Intuitive Multi-Touch Operation: Modern PCAP multi-touch technology provides a user-friendly and highly responsive interface for operators, improving efficiency and reducing training time.

• Robust and Reliable: Fanless design, industrial-grade components, and high IP rating make it extremely durable and suitable for demanding industrial environments with dust, vibration, and temperature fluctuations.

• High Performance: Capable of running complex HMI applications, SCADA systems, and even integrated control logic (with TwinCAT), offering powerful computing capabilities at the machine level.

• Space-Saving Integration: Combines display and PC into a single unit, simplifying installation and reducing panel space requirements.

• Low Maintenance: Fanless design and SSD storage minimize mechanical wear, leading to lower maintenance costs and higher uptime.

• Flexibility and Scalability: Part of the Beckhoff IPC family, it offers integration with Beckhoff's modular I/O and control systems (e.g., EtherCAT), providing a flexible and scalable automation solution.

• Long-Term Availability: Beckhoff typically offers long-term availability for its industrial PC components, ensuring consistent spare parts and support.

Precautions

• Correct Installation: Follow Beckhoff's installation manual carefully. Ensure proper panel cutout dimensions, secure mounting, and adequate ventilation clearances around the rear of the unit if specified.

• Power Supply: Use a stable and correctly sized 24 V DC power supply. Pay attention to power quality and grounding.

• Environmental Conditions: Operate the Panel PC within the specified temperature and humidity ranges. Avoid direct exposure to corrosive substances or excessive vibration. While robust, prolonged exposure to extreme conditions can affect longevity.

• Software Compatibility: Ensure the chosen operating system and HMI/control software are compatible with the Panel PC's hardware and processor.

• Touchscreen Care: While robust, avoid using sharp objects on the multi-touch screen. Clean with appropriate, non-abrasive cleaning agents.

• ESD Protection: Take electrostatic discharge (ESD) precautions when handling the device, especially during installation and when connecting peripherals.

• Data Backup: Regularly back up project data and system images, especially from the SSD/Micro SD card, to prevent data loss.

• Firmware and Driver Updates: Keep the Panel PC's firmware, BIOS, and drivers updated as recommended by Beckhoff for optimal performance and security.

Product Applications

Beckhoff CP2918 series Panel PCs are ideal for a wide range of industrial applications requiring a robust, high-performance HMI and control platform:

• Machine Control Panels: Primary operator interface for packaging machines, printing machines, CNC machines, textile machinery, and general automation equipment.

• Process Visualization: Used in chemical plants, food & beverage processing, water treatment, and energy production for monitoring and controlling industrial processes.

• Building Automation: As central control units or HMI panels for building management systems (BMS), HVAC control, and lighting control in large facilities.

• Logistics and Material Handling: Control and visualization for conveyor systems, automated guided vehicles (AGVs), and robotic cells.

• Test Benches and Labs: Interface for controlling and acquiring data from industrial test and measurement setups.

• Medical Technology: Control and visualization for various medical devices and diagnostic equipment (where industrial certification is suitable).

• Edge Computing: Can serve as an edge device for data processing and analysis closer to the source in IoT and Industry 4.0 applications.
