Brand：SST
Model number：SST- ESR2-CLX-RLL
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.2kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
Leader for 15 years in connectivity for Rockwell ControlLogix controllers, SST™ communication
modules are the perfect choice for a wide range of applications including factory automation,
process control and complex machines.

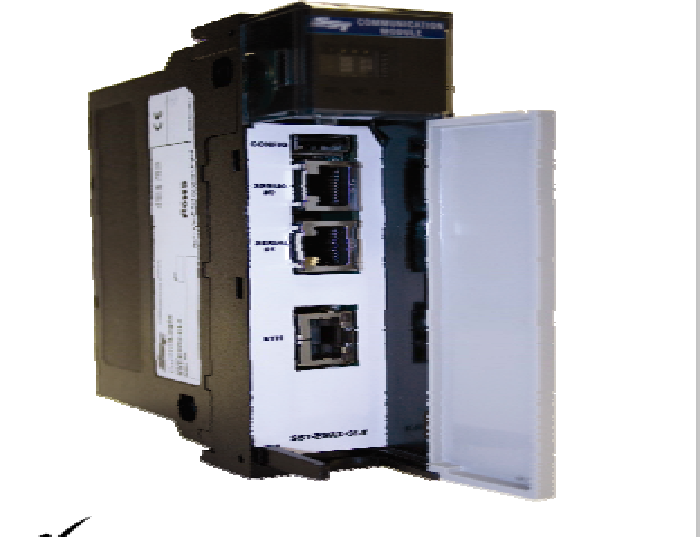

SST Modbus module connects Rockwell ControlLogix controller to Modbus networks. Each
module has 1 Ethernet + 2 Serial communication channels that act as independent Modbus TCP
Client/Server and Modbus Master or Slave protocols to exchange data with other Modbus
compatible devices.
SST Modbus module is delivered with its “Add-On-Profile” (AOP) for easy integration into the
ControlLogix system using the RSLogix 5000 software. The data transfer from the SST module
to the ControlLogix processor supports 2 modes; a “direct mode” allowing mapping of Modbus
data in I/O processor image (496 inputs bytes / 496 output bytes) and a “messaging mode”
(based on CIP transaction) allowing access to Modbus data images stored in 32K registers of the
SST™ module’s memory.
Save your time, the SST module doesn’t require any ladder logic programming to be used. The
configuration is created using Windows engineering console software connected via RLL (Remote
Link Library) functionality allowing a remote access to the SST module for the configuration and
the diagnostics through Rockwell network architectures (Ethernet/ControlNet/DeviceNet).
The SST console allows the user to define the network parameters, Modbus devices and the cyclic
data exchanges. The console includes a user configuration manager offering services for
download, upload, copy, and rename of user configurations. With this, a user can very easily and
quickly create a new configuration to initialize and start the SST module.
The SST console includes diagnostic tools to help with the commissioning and monitoring of the
Modbus connection. These tools allow access in read and write modes to the Modbus slaves or to
monitor and modify the module’s internal data shared bound for a Modbus Master. Thus, the
user-friendly tools are available for controlling the communication in commissioning phase
(PROG mode). This same information is also available in production (RUN mode) through status
words making it possible for the user to manage the execution of the control application in its
