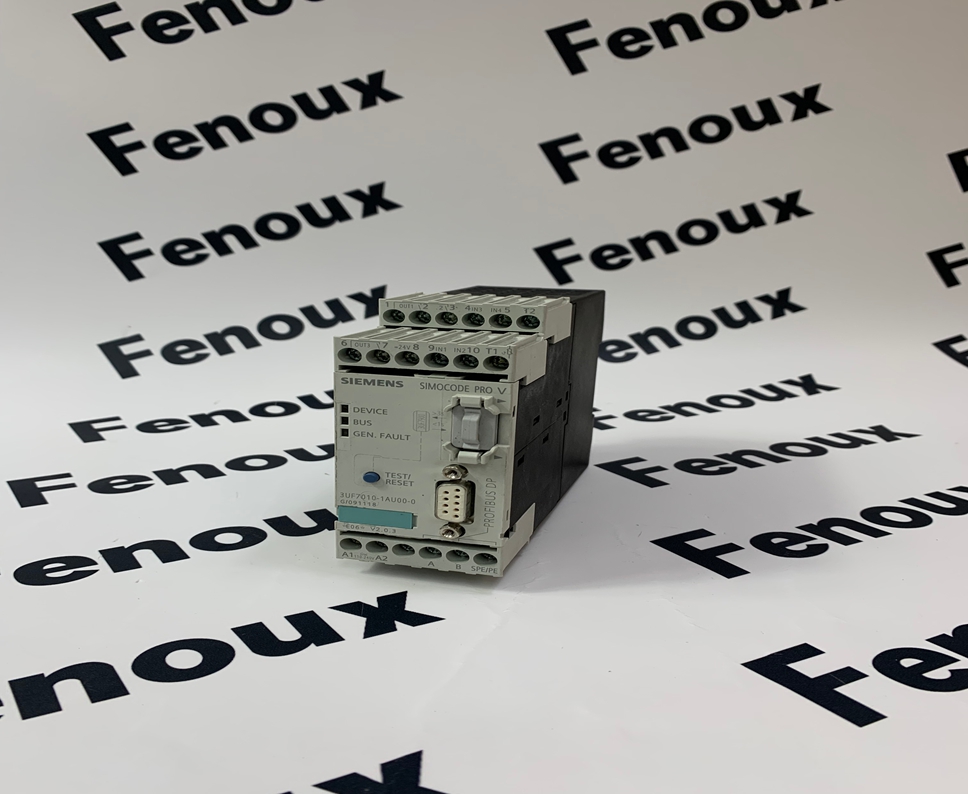

Siemens 3UF7010-1AU00-0 Relay

Siemens SIRIUS 3UF7010-1AU00-0 Overview

The Siemens SIRIUS 3UF7010-1AU00-0 is a phase sequence and failure relay used for monitoring three-phase AC circuits for phase sequence (direction of rotation) and fault conditions. It detects incorrect phase sequence, phase failure (phase loss), and asymmetry (voltage unbalance), and signals these faults to protect motors and other sensitive equipment from damage.

Product Detailed Description

• Function:

• Phase Sequence Monitoring: Detects the direction of rotation of the three-phase supply (e.g., correct sequence of L1-L2-L3). The relay will trip if the phase sequence is incorrect.

• Phase Failure Monitoring: Detects if one or more phases are missing in the three-phase supply. The relay will trip if a phase failure occurs.

• Asymmetry Monitoring (Voltage Unbalance): Detects the degree of unbalance between the three-phase voltages. The relay will trip if the voltage unbalance exceeds the set threshold.

• Adjustable Parameters: Typically features adjustable voltage asymmetry thresholds and response delay times to suit different application requirements.

• Output Contacts: Provides one or more output relay contacts to indicate fault conditions, enabling the triggering of protection circuits or alarm systems.

• Features:

• Compact design for easy installation in control cabinets.

• LED indicators to display power status and fault type.

• Reliable fault detection helps prevent damage to motors and other equipment due to power supply issues.

• Wide voltage range suitable for different three-phase power systems.

• Parameter setting via DIP switches or potentiometers.

Product Parameters

As the model number is specific, the following are typical parameters for this model (3UF7010-1AU00-0):

• Product Model: 3UF7010-1AU00-0

• Monitoring Functions: Phase sequence, phase failure, voltage asymmetry

• Rated Voltage (Un): 3 x 160...690 V AC

• Frequency Range: 50/60 Hz

• Voltage Asymmetry Threshold: Adjustable, e.g., 5% to 20%

• Response Delay Time: Adjustable, e.g., 0.1 s to 10 s (for asymmetry)

• Output Contacts: 1 CO (changeover contact)

• Contact Rating: E.g., 3 A @ 250 V AC

• Supply Voltage: Taken from the monitored three-phase supply

• Mounting Method: 35 mm DIN rail mounting

• Degree of Protection: IP20 (terminals), IP40 (housing)

• Ambient Temperature: -25 °C to +60 °C

• Connection Method: Screw terminals

• Certifications: CE, UL, CSA, etc. (refer to the specific product manual)

Product Advantages

• Comprehensive Protection: Monitors phase sequence, phase failure, and voltage asymmetry simultaneously, providing comprehensive protection against power supply faults.

• Prevents Equipment Damage: Early detection of power faults helps prevent damage to motors, drives, and other sensitive equipment due to power supply issues, reducing maintenance costs and downtime.

• Improves System Reliability: Ensures the stability and correctness of the power supply, improving the reliability of the entire automation system.

• Easy Installation and Use: Compact design and simple parameter settings make installation and commissioning very convenient.

• Clear Status Indication: LED indicators quickly display the power status and detected fault types, facilitating fault diagnosis.

• Wide Voltage Range Applicability: Suitable for various different three-phase power systems.

Precautions

• Correct Selection: Ensure that the rated voltage and monitoring range of the selected relay model match the actual three-phase power system.

• Correct Installation: Follow Siemens' installation guidelines, ensuring the relay is securely mounted and correctly wired.

• Parameter Setting: Set the voltage asymmetry threshold and response delay time appropriately based on the specific application requirements and the sensitivity of the protected equipment.

• Grounding: Ensure that the relay and the monitored power system are properly grounded.

• Testing: After installation, perform functional tests to verify that the relay can correctly detect various fault conditions and trigger the output contacts.

• Regular Inspection: Regularly inspect the operating status and wiring of the relay to ensure its normal operation.

Product Applications

The Siemens SIRIUS 3UF7010-1AU00-0 phase sequence and failure relay is widely used in equipment and systems that require protection against three-phase power supply faults, including but not limited to:

• Motor Protection: Prevents motors from overheating or damage due to phase failure, incorrect phase sequence, or voltage unbalance.

• Drive Protection: Protects power electronic equipment such as frequency converters and servo drives from power supply issues.

• Pump and Fan Control Systems: Ensures the reliable operation of pumps and fans.

• Compressor Control Systems: Protects compressors from damage caused by power supply problems.

• Conveyor Belt and Material Handling Systems: Ensures the stable operation of the systems.

• Automated Production Lines: Protects various three-phase equipment on the production line.

• Heating, Ventilation, and Air Conditioning (HVAC) Systems: Protects three-phase motor-driven compressors and fans.
