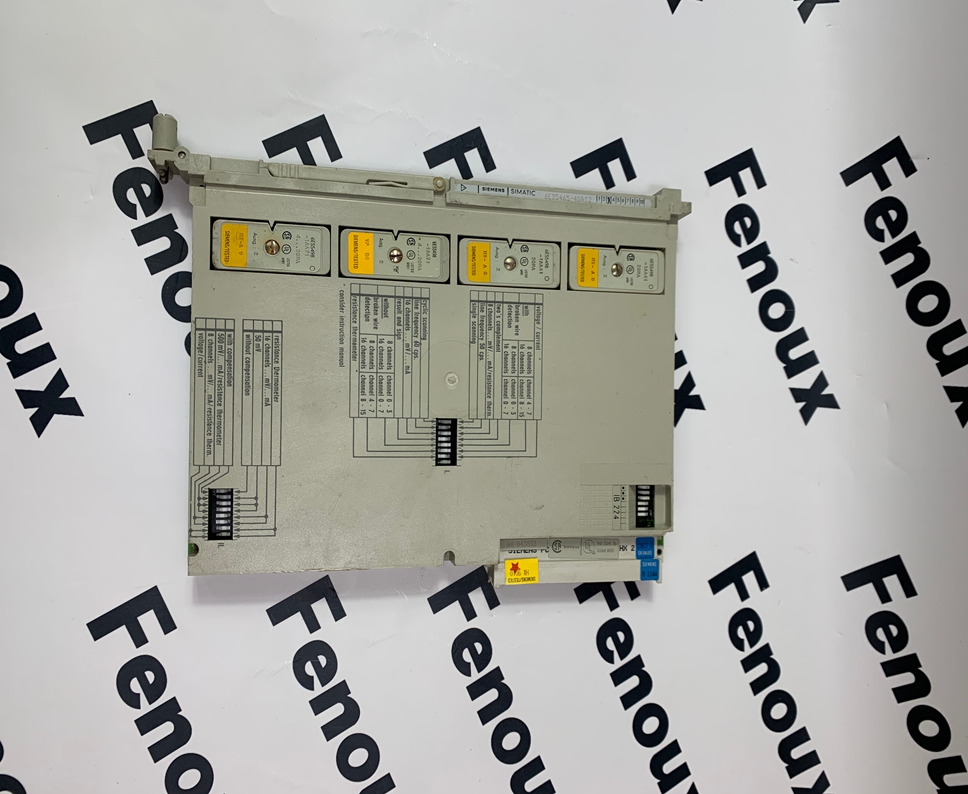

Siemens 6ES5465-4UA12 Digital output modules

Siemens SIMATIC S5 Digital Output Module 6ES5465-4UA12 Overview

The Siemens SIMATIC S5 6ES5465-4UA12 is a digital output module for the SIMATIC S5 programmable logic controller (PLC) system. It provides digital output channels for controlling various external actuators such as solenoid valves, contactors, indicator lights, etc.

Product Detailed Description

• Function:

• Provides 32 digital output channels.

• Each output channel converts the PLC's internal logic signals into control signals for external devices.

• Output type is transistor output, suitable for DC loads.

• Each output channel has short-circuit protection.

• The module communicates with the SIMATIC S5 CPU via the backplane bus.

• LEDs on the front panel indicate the status of each output channel.

• Features:

• 32 digital output channels, high density.

• Transistor outputs, suitable for DC applications.

• Each output channel has short-circuit protection, improving system reliability.

• LED indicators for easy status monitoring and fault diagnosis.

• Modular design for easy expansion and replacement in SIMATIC S5 systems.

Product Parameters

• Order Number: 6ES5465-4UA12

• Series: SIMATIC S5

• Module Type: Digital Output Module

• Number of Outputs: 32

• Output Type: Transistor

• Rated Output Voltage: 24 V DC

• Output Voltage Range: 20.4 V DC to 28.8 V DC

• Rated Output Current: 0.5 A per channel

• Total Current: Max. 8 A / module

• Short-Circuit Protection: Electronic short-circuit protection per channel

• Reverse Polarity Protection: No

• Signal Voltage "1": >= 20 V DC

• Signal Voltage "0": <= 5 V DC

• Output Delay (Signal "0" to "1"): Typ. 1 ms

• Output Delay (Signal "1" to "0"): Typ. 2 ms

• Indicators: 1 LED per channel (green) for output status

• Isolation: Optocoupler

• Power Consumption: Typ. 4 W

• Dimensions (W x H x D): 25 mm x 290 mm x 245 mm (1 slot width)

• Weight: Approx. 0.5 kg

• Front Connector: 2 x 20-pin connector

• Ambient Temperature:

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: -25 °C to +70 °C

• Protection Class: IP20

• Standards Compliance: Complies with relevant SIMATIC S5 system standards

Product Advantages

• High Channel Density: 32 output channels in one module, saving space and cost.

• High Reliability: Electronic short-circuit protection for each channel improves system operating reliability.

• Easy Monitoring and Diagnostics: LEDs for each channel indicate output status, facilitating user monitoring and troubleshooting.

• Proven Technology: SIMATIC S5 system is a time-tested industrial control platform with good stability and reliability.

• Easy Integration: As part of the SIMATIC S5 series, it is easy to integrate with other S5 modules and CPUs.

Precautions

• Correct Installation: Follow the installation guidelines for the SIMATIC S5 system, ensuring the module is correctly inserted into the backplane connector.

• Power Requirements: Ensure the 24 V DC power supply meets the module's voltage and current requirements.

• Correct Wiring: Connect external actuators correctly according to the wiring diagram, paying attention to polarity.

• Load Limits: The load current for each output channel must not exceed 0.5 A, and the total current for the entire module must not exceed 8 A.

• Environmental Conditions: Ensure the operating environment temperature is within the range of 0 °C to +60 °C, and avoid humidity and corrosive gases.

• After Short-Circuit Protection: The module automatically resumes operation after the short-circuit fault is cleared.

• Overload Protection: This module primarily provides short-circuit protection; additional protection measures may be required for continuous overload.

Product Applications

The SIMATIC S5 digital output module 6ES5465-4UA12 is widely used in various industrial automation fields to control DC actuators:

• Controlling Solenoid Valves: Used to control valves in pneumatic or hydraulic systems.

• Driving Contactors and Relays: Used to switch higher power electrical loads.

• Controlling Indicator Lights and Alarm Devices: Used for device status display and fault alarms.

• Controlling Small DC Motors: With appropriate circuitry, it can control the start, stop, and direction of small DC motors.

• General-Purpose Digital Outputs: Used in various applications requiring the switching of DC signals.
