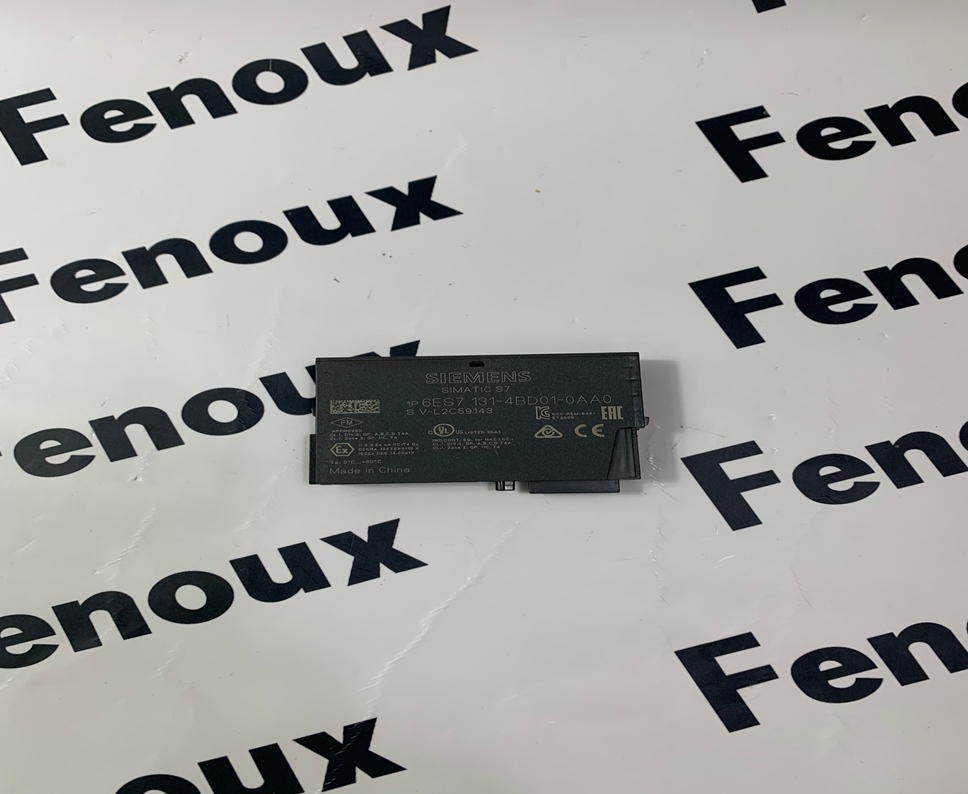

Siemens 6ES7131-4BD01-0AA0 Digital Electronic Module

The Siemens 6ES7131-4BD01-0AA0 is a SIMATIC ET 200S Digital Electronic Module, specifically a 4-channel Digital Input (DI) module. It is designed for use with the distributed I/O system SIMATIC ET 200S, which is a modular and scalable system primarily used in industrial automation for connecting field devices (sensors, actuators) to a PLC (Programmable Logic Controller) or other control systems. This particular module handles the input of digital signals, indicating the ON/OFF state of connected sensors or switches.

Product Detailed Description

• Function: This module serves as an interface for reading 4 digital input signals from the field. It detects the binary state (0 or 1, ON or OFF) of connected devices such as push buttons, limit switches, proximity sensors, or other binary signals. The module then transmits these states to the higher-level control system (e.g., a SIMATIC S7-300/400 PLC) via the ET 200S backplane bus.

• Key Features:

• 4 Digital Inputs: Provides four channels for connecting binary sensors.

• 24V DC: Designed for standard 24 V DC input signals.

• Source Input Type: This is a "sourcing" input, meaning the module provides the voltage to the sensor, and the sensor switches the current to the module's input.

• Suitable for 2-Wire Sensors: Can be used with 2-wire proximity sensors.

• Compact Design: Part of the ET 200S system, known for its small footprint and modularity.

• Easy Installation: Features simple plug-in connections (requires a separate terminal module/wiring block, e.g., 6ES7193-4BA00-0AA0).

• Diagnostic Capabilities: Basic diagnostics for wire break or short circuit (depending on the overall ET 200S configuration and wiring).

• LED Indicators: LEDs for each channel to indicate the signal status (ON/OFF) for quick visual troubleshooting.

Product Parameters

(Note: Specific parameters are derived from Siemens technical documentation for the ET 200S 4DI DC 24V module.)

• Order Number: 6ES7131-4BD01-0AA0

• Module Type: Digital Input (DI) Electronic Module

• Number of Inputs: 4 channels

• Input Voltage: 24 V DC (rated value)

• Input Current: Typ. 3 mA per channel

• Input Delay: Typ. 0.2 ... 3 ms (configurable, depending on the base unit/IM)

• Input Type: Sinking/Sourcing (M-potential to ground, or L+ potential switched) - often referred to as "sourcing" or "Type 1" inputs according to IEC 61131-2.

• Isolation: No electrical isolation between channels and backplane bus.

• Status Indicators: Green LED for each channel (indicating signal status).

• Permissible Cable Length: Max. 1,000 m (unshielded), Max. 600 m (shielded)

• Power Consumption: Typ. 25 mA (from backplane bus)

• Required Terminal Module: E.g., 6ES7193-4BA00-0AA0 (20 mm wide) or similar 4-channel terminal module for ET 200S.

• Operating Temperature: 0 to +50 °C (horizontal mounting), 0 to +40 °C (vertical mounting)

• Storage Temperature: -40 to +70 °C

• Dimensions (W x H x D): 15 mm x 81 mm x 52 mm (module only, without terminal block)

• Weight: Approx. 30 g

• Compliance: CE, cULus, ATEX, IECEx (depending on the complete ET 200S configuration).

Product Advantages

• Cost-Effective per Channel: Offers a cost-efficient solution for collecting digital input signals.

• Space-Saving Design: Its narrow 15mm width contributes to a compact distributed I/O station, saving valuable cabinet space.

• Modularity and Scalability: As part of the ET 200S system, it allows for flexible expansion and adaptation to changing process requirements.

• Ease of Maintenance: Hot-swappable modules (with correct terminal modules) and LED diagnostics simplify troubleshooting and reduce downtime.

• Integration with SIMATIC: Seamless integration into Siemens TIA Portal and SIMATIC PLC environments, simplifying engineering and commissioning.

• Robustness: Designed for industrial environments, ensuring reliable operation.

Precautions

• Correct Terminal Module: This electronic module requires a separate terminal module (e.g., 6ES7193-4BA00-0AA0 or similar) for wiring field devices. Ensure the correct terminal module type is used.

• Power Supply: Ensure a stable 24 V DC power supply is provided to the ET 200S system.

• Wiring: Adhere strictly to the wiring diagrams provided in the manual. Incorrect wiring can damage the module or connected devices. Ensure proper shielding for signal cables, especially in electrically noisy environments.

• Grounding: Proper grounding of the ET 200S system and connected devices is crucial for reliable operation and EMC compliance.

• Environmental Conditions: Operate the module within the specified temperature and humidity ranges. Avoid exposure to excessive vibration, dust, or corrosive atmospheres.

• Hot Swapping: While the module supports hot-swapping (replacement during operation), ensure the system is properly configured for this and observe all safety precautions.

• Programming: The module's behavior and diagnostics need to be configured in the PLC programming software (e.g., TIA Portal) to match the application requirements.

Product Applications

The Siemens 6ES7131-4BD01-0AA0 digital input module is widely used in various industrial automation applications for reading binary signals:

• Machine Building:

• Monitoring the state of limit switches on axes or safety guards.

• Detecting the presence of parts using proximity sensors.

• Reading inputs from push buttons and selector switches on operator panels.

• Process Automation:

• Monitoring valve positions (open/closed).

• Detecting liquid levels in tanks (using level switches).

• Reading alarm signals from various field devices.

• Conveyor Systems:

• Detecting product presence or position on conveyor belts.

• Monitoring the state of emergency stop buttons.

• Packaging Machinery:

• Detecting the position of packaging materials or products.

• Monitoring machine states (e.g., lid closed, full container).

• Building Automation:

• Monitoring door/window contacts for security or HVAC control.

• Reading inputs from fire alarms or smoke detectors.
