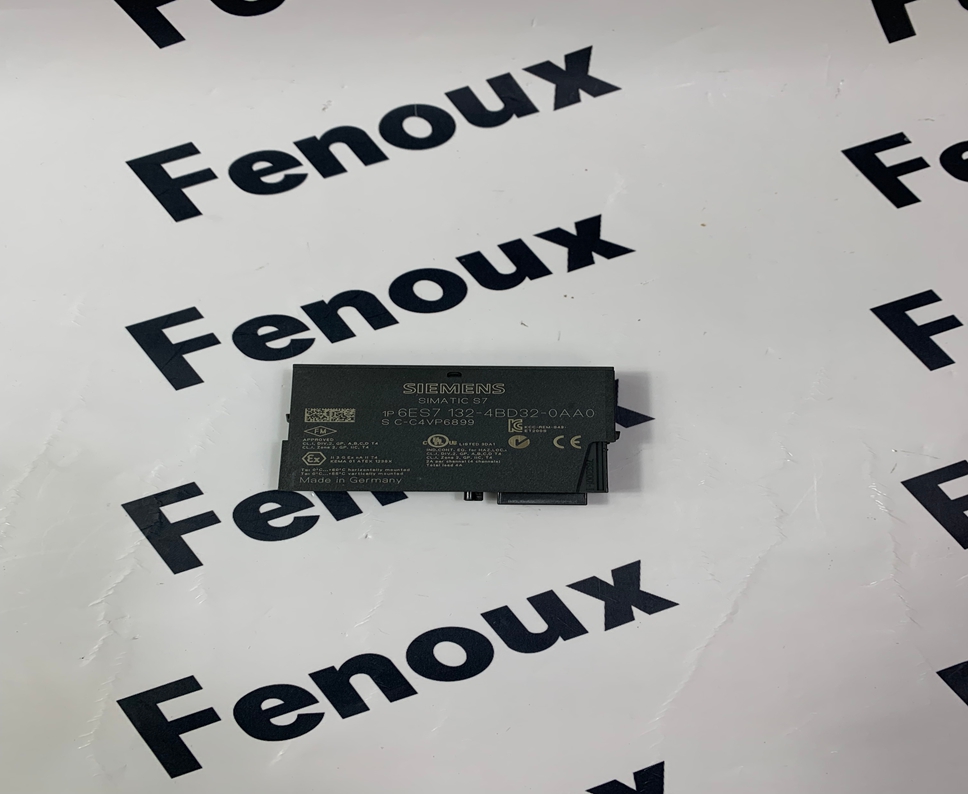

Siemens 6ES7132-4BD32-0AA0 electronic module

Siemens 6ES7132-4BD32-0AA0 Overview

The Siemens 6ES7132-4BD32-0AA0 is an electronic module for the SIMATIC ET 200S distributed I/O system. Specifically, it is a 4-channel Digital Output (DO) standard module designed to switch 24 V DC loads with a maximum current of 2 A per channel. These modules are part of the ET 200S series, which is known for its compact design, modularity, and flexibility in various industrial automation applications. Note that this module is listed as a "Spare part" by Siemens, indicating it might be an older generation product.

Product Detailed Description

• Function: This module serves as an interface between the SIMATIC ET 200S distributed I/O system and digital actuators (loads) in the field. It receives digital signals from the PLC (Programmable Logic Controller) via the backplane bus and switches the connected 24 V DC loads (e.g., relays, contactors, indicator lights, small valves).

• Channels: It provides four digital output channels, each capable of switching a 24 V DC load.

• Output Current: Each output channel can handle a maximum current of 2 Amperes (A).

• Standard Module: The "Standard" designation indicates that it provides basic digital output functionality without advanced diagnostic features or specialized high-speed capabilities.

• Compact Design: With a width of 15 mm, it is a compact module, contributing to space-saving in control cabinets.

• Modular System: It integrates seamlessly into the modular SIMATIC ET 200S system, allowing users to combine various I/O modules, power modules, and interface modules to create customized distributed I/O configurations.

• Packaging: The product is typically sold in a packing unit of 5 electronic modules.

• Delivery Release: The delivery release date was April 1, 2007, confirming its status as an older generation or spare part.

Product Parameters

• Module Type: Digital Output (DO) electronic module

• Series: SIMATIC ET 200S

• Number of Channels: 4 digital outputs

• Output Voltage: 24 V DC

• Output Current per Channel: Max. 2 A

• Module Width: 15 mm

• Isolation: Group-isolated from the backplane bus.

• Supply Voltage: Supplied via the ET 200S power module (system bus).

• Reverse Voltage Protection: Yes (integrated).

• Short-Circuit Protection: Yes (integrated for each channel).

• Overload Protection: Yes (integrated for each channel).

• Wiring Method: Typically via screw-type or spring-type terminals on a separate terminal module.

• Diagnostic Features: Limited (e.g., possibly group fault indication via SF LED on the interface module, but not per-channel diagnostics on this "Standard" type).

• Ambient Temperature: Operating temperature range typically 0 °C to +60 °C (refer to detailed manual for exact range).

• Storage Temperature: -40 °C to +70 °C.

• Protection Class: Depends on the ET 200S station housing/IP rating.

• Firmware/Software: Configured using SIMATIC STEP 7 software.

Product Advantages

• Cost-Effective: As a "standard" module, it provides essential digital output functionality at a potentially lower cost compared to more advanced modules.

• Compactness: Its 15 mm width saves valuable space in control cabinets, allowing for higher density I/O configurations.

• Modularity: Part of the highly flexible ET 200S system, enabling easy expansion and modification of I/O configurations.

• Robustness: Designed for industrial environments, ensuring reliable operation.

• Proven Technology: As an older, established product, its reliability in existing ET 200S installations is well-understood.

• Integrated Protection: Features per-channel short-circuit and overload protection, enhancing system safety and longevity.

Precautions

• Spare Part Status: As it's listed as a "Spare part," availability might be limited, and it's generally not recommended for new designs. Consider newer ET 200SP or ET 200MP modules for new projects.

• Load Compatibility: Ensure the connected loads do not exceed the 2 A per channel current limit.

• Power Supply: This module requires a proper 24 V DC power supply provided by the ET 200S power module. Ensure the power supply capacity is sufficient for all connected modules and loads.

• Wiring: Adhere strictly to the wiring diagrams provided in the ET 200S system manual to ensure correct and safe operation. Proper terminal module selection is crucial.

• Environment: Operate the module within the specified temperature and humidity ranges. Protect it from excessive vibration, dust, and corrosive atmospheres.

• Diagnostics: Be aware that "Standard" modules offer limited diagnostic capabilities. For applications requiring detailed fault detection (e.g., wire break, short circuit to ground, overload per channel), consider using "High Feature" or "Diagnostic" digital output modules from Siemens.

• Compatibility: Ensure compatibility with the specific IM (Interface Module) and CPU used in the ET 200S station.

Product Applications

The Siemens 6ES7132-4BD32-0AA0, as part of the ET 200S distributed I/O system, is suitable for a wide range of industrial automation applications where digital outputs are required to control actuators.

• Machine Building: Controlling solenoids, contactors, indicator lights, and small motors in various types of machinery.

• Automotive Industry: Used in assembly lines, robotic cells, and material handling systems for controlling pneumatic valves, clamps, and indicators.

• Packaging Machinery: Actuating valves for filling, sealing, and labeling processes.

• Food and Beverage Industry: Controlling various actuators in processing and packaging lines, often in conjunction with appropriate IP-rated housings.

• Material Handling: Controlling conveyors, diverters, and sorting mechanisms.

• General Industrial Control: Any application where 24 V DC digital outputs are needed to switch loads based on PLC control signals in a distributed I/O setup.

• Replacement/Maintenance: Primarily used as a direct replacement part for existing ET 200S installations that utilize this specific module.
