PM564-T-ETH 1SAP120900R0071 ABB Output module

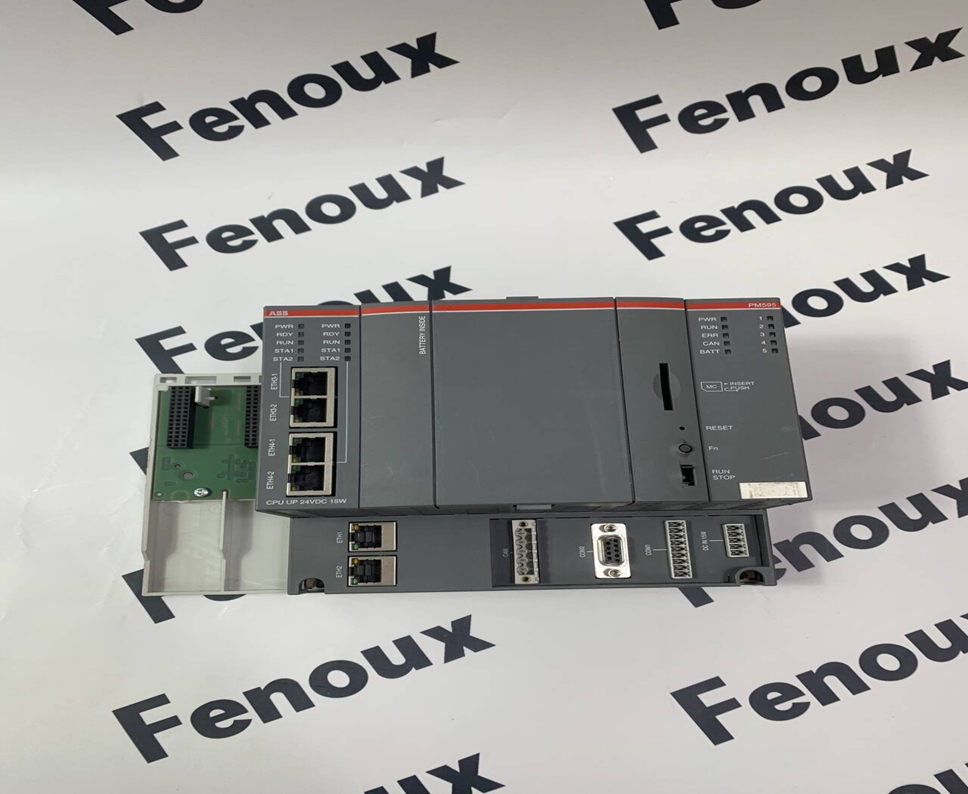

ABB PM564-T-ETH (Order Code 1SAP120900R0071) Overview

The ABB PM564-T-ETH is a powerful Central Processing Unit (CPU) belonging to the ABB AC500 series of Programmable Logic Controllers (PLCs). It is designed for medium-complexity automation tasks, featuring an integrated Ethernet interface, support for various communication protocols, and real-time control capabilities.

Product Detailed Description

• Function:

• Executes user-written control programs.

• Manages and controls connected Input/Output (I/O) modules.

• Communicates via the integrated Ethernet interface, supporting multiple protocols (e.g., Modbus TCP/IP, Ethernet/IP, PROFINET).

• Provides real-time control capabilities suitable for applications requiring precise and fast responses.

• Supports multiple programming languages compliant with IEC 61131-3 standards (e.g., LD, FBD, SFC, ST, IL).

• Features an integrated web server for easy remote monitoring and diagnostics.

• Supports safety functions (depending on the specific model and firmware).

• Features:

• Powerful processor for fast program execution.

• Integrated Ethernet interface supporting various industrial Ethernet protocols.

• Scalable I/O system, expandable with ABB S500 and S500 I/O modules.

• Integrated Real-Time Clock (RTC).

• SD card slot for program storage, data logging, and firmware updates.

• Compact design, saving control cabinet space.

• Fanless operation, reducing maintenance requirements.

Product Parameters

As the model number is very specific, the following are typical parameters based on this model. Always refer to the official ABB product manual for the most accurate and detailed specifications:

• Order Code: 1SAP120900R0071

• CPU Type: AC500

• Ethernet Interface: Integrated, supports multiple protocols (Modbus TCP/IP, Ethernet/IP, PROFINET, etc.)

• Programming Interface: Ethernet, USB

• Program Memory: Typically in the MB range (refer to the manual for the exact size)

• Data Memory: Typically in the KB range (refer to the manual for the exact size)

• I/O Expansion: Supports ABB S500 and S500 I/O modules

• Real-Time Clock (RTC): Integrated

• SD Card Slot: Supported

• Supply Voltage: 24 V DC

• Power Consumption: Typically low (refer to the manual for the exact value)

• Operating Temperature: Typically -20 °C to +60 °C

• Protection Class: Typically IP20

• Dimensions (W x H x D): Refer to the manual for specific dimensions

• Weight: Refer to the manual for specific weight

• Programming Languages: Compliant with IEC 61131-3 (LD, FBD, SFC, ST, IL)

• Web Server: Integrated

Product Advantages

• Powerful Performance:

• Capable of handling medium-complexity automation tasks.

• Flexible Communication:

• Integrated Ethernet interface supports various industrial Ethernet protocols, facilitating integration with other devices and systems.

• Scalability:

• Easily expand the number of I/O points with ABB S500 and S500 I/O modules.

• High Reliability:

• The ABB AC500 series is known for its reliability and stability in industrial environments.

• Easy Programming and Maintenance:

• Supports multiple programming languages compliant with IEC 61131-3.

• Integrated web server facilitates remote monitoring and diagnostics.

• Compact Design:

• Saves control cabinet space.

• Fanless Operation:

• Reduces maintenance requirements and improves reliability.

Precautions

• Correct Installation:

• Follow ABB's installation guidelines, ensuring the PLC is installed in a well-ventilated area with suitable ambient temperature and humidity.

• Power Requirements:

• Use a 24 V DC power supply that meets the specifications.

• Environmental Conditions:

• Ensure the operating environment temperature is within the permissible range.

• I/O Module Selection:

• Choose ABB S500 or S500 I/O modules that are compatible with the PM564-T-ETH.

• Programming Software:

• Requires ABB Automation Builder or other compatible programming software for program development and configuration.

• Communication Configuration:

• Configure the parameters of the Ethernet and other communication interfaces correctly.

• Grounding:

• Ensure the PLC system is properly grounded to prevent electromagnetic interference and ensure safety.

Product Applications

The ABB PM564-T-ETH PLC is suitable for various medium-complexity industrial automation applications, including but not limited to:

• Machinery Manufacturing:

• Control of various types of mechanical equipment.

• Material Handling:

• Control of conveyors, sorting systems, etc.

• Packaging Machinery:

• Control of packaging processes.

• Building Automation:

• Control of HVAC, lighting, and other systems.

• Water Treatment:

• Control of water pumps, valves, etc.

• Energy Management:

• Monitoring and control of energy consumption.

• Other Industrial Automation Fields:

• Any application requiring medium-scale control and network communication.

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
