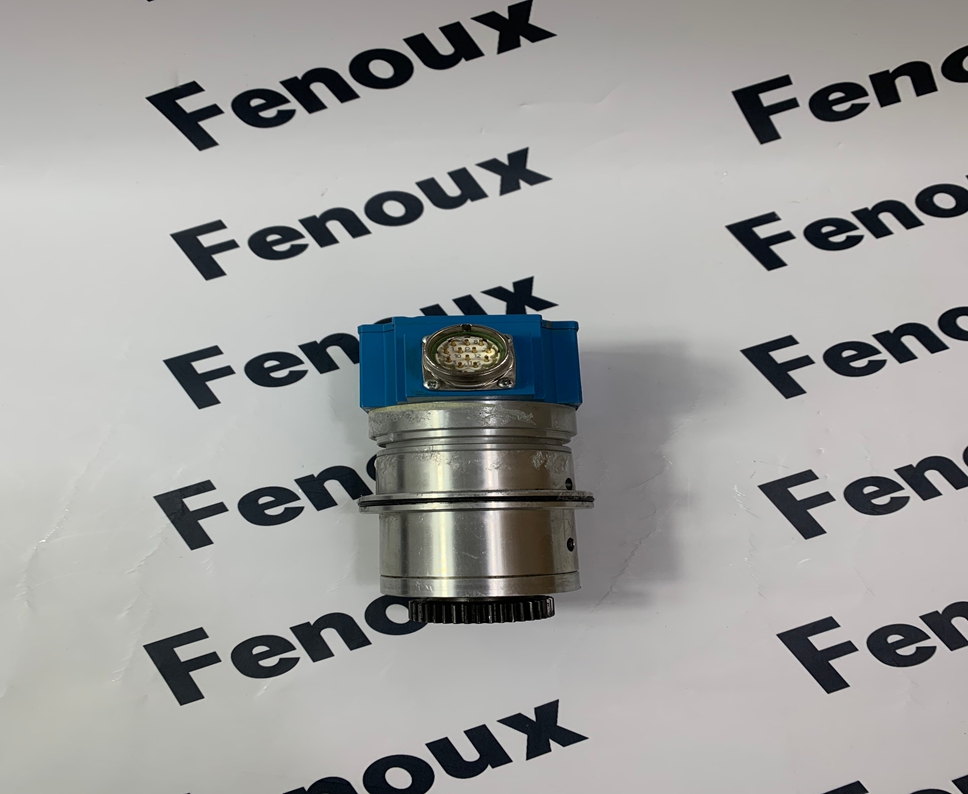

SICK SRS50-HWAO-KO1 Absolute encoder

SICK SRS50-HWAO-KO1 Overview

The SICK SRS50-HWAO-KO1 is a high-performance absolute encoder belonging to the SRS50 series. Absolute encoders provide absolute position information of a shaft, allowing immediate reading of the current position even after a power failure, without the need for homing. This encoder is typically used in industrial automation applications requiring high-precision positioning and speed feedback.

Product Detailed Description

• Function:

• Provides absolute position information of the rotating shaft.

• Outputs digital signals corresponding to the absolute angular position of the shaft.

• Retains position information even after a power failure.

• Typically features high resolution and high accuracy.

• Can provide additional incremental signals for speed measurement.

• Features:

• High resolution for precise positioning.

• Robust mechanical design suitable for industrial environments.

• Various interface types for easy integration into different control systems.

• High protection class against dust and moisture.

• Compact design.

Product Parameters

As the model number is very specific, the following provides typical parameters based on the SRS50 series. Always refer to the official datasheet for the SRS50-HWAO-KO1:

• Absolute Resolution:

• Typically 13 bits single-turn (8192 steps).

• Incremental Resolution:

• Typically 1024 or 2048 pulses per revolution.

• Interface Type:

• SSI (Synchronous Serial Interface).

• Electrical Interface:

• Typically M12 connector, 8-pin.

• Supply Voltage:

• Typically 10 V DC to 32 V DC.

• Output Code:

• Binary.

• Shaft Type:

• Solid shaft.

• Flange Type:

• Typically servo flange.

• Protection Class:

• Typically IP65 or IP67.

• Maximum Speed:

• Varies depending on the model.

• Operating Temperature Range:

• Typically -20 °C to +85 °C.

Product Advantages

• High-Precision Positioning:

• Absolute encoding provides precise position information without the need for homing.

• High Reliability:

• Robust mechanical and electrical design suitable for industrial environments.

• Strong Interference Resistance:

• Able to withstand electromagnetic interference.

• Easy Integration:

• SSI interface facilitates connection to various control systems.

• Speed Feedback:

• Optional incremental signals for precise speed measurement.

Precautions

• Correct Installation:

• Follow SICK's installation guidelines, ensuring the encoder is correctly connected to the drive shaft and avoiding mechanical stress.

• Environmental Conditions:

• Ensure the operating environment meets the encoder's temperature, humidity, and protection class requirements.

• Power Connection:

• Ensure the power supply voltage is within the allowable range and connect the power and signal wires correctly.

• Interface Matching:

• Ensure the encoder's interface type (e.g., SSI) is compatible with the control system's interface.

• Avoid Shock and Vibration:

• Avoid subjecting the encoder to severe mechanical shock and vibration.

• Regular Inspection:

• Regularly inspect the encoder's connections and mounting.

Product Applications

• Industrial Robots:

• Joint positioning and servo control.

• Machine Tools:

• Position feedback for spindles and feed axes.

• Packaging Machinery:

• Precise position control and synchronization.

• Textile Machinery:

• Tension control and position feedback.

• Printing Machinery:

• Registration control and position feedback.

• Warehouse Logistics:

• Positioning of stacker cranes and conveyor systems.

• Wind Power:

• Blade angle control and generator speed monitoring.
